Buy CUDY GS1024E 24-port Gigabit Switch Light Managed Rackmount

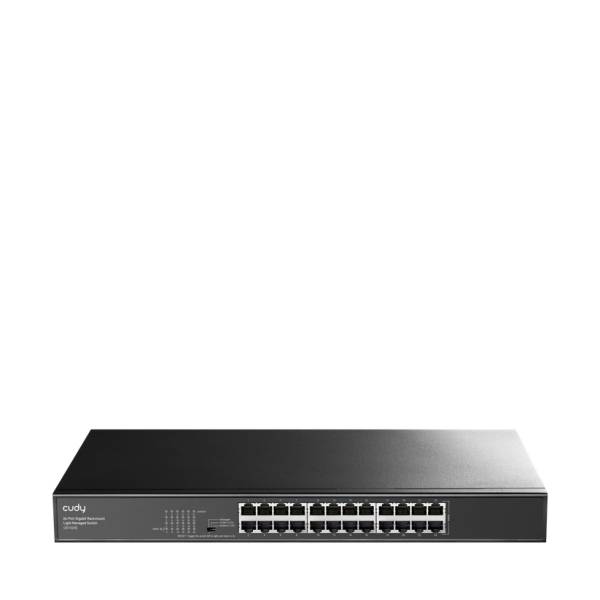

CUDY GS1024E 24-port Gigabit Switch Light Managed Rackmount-0

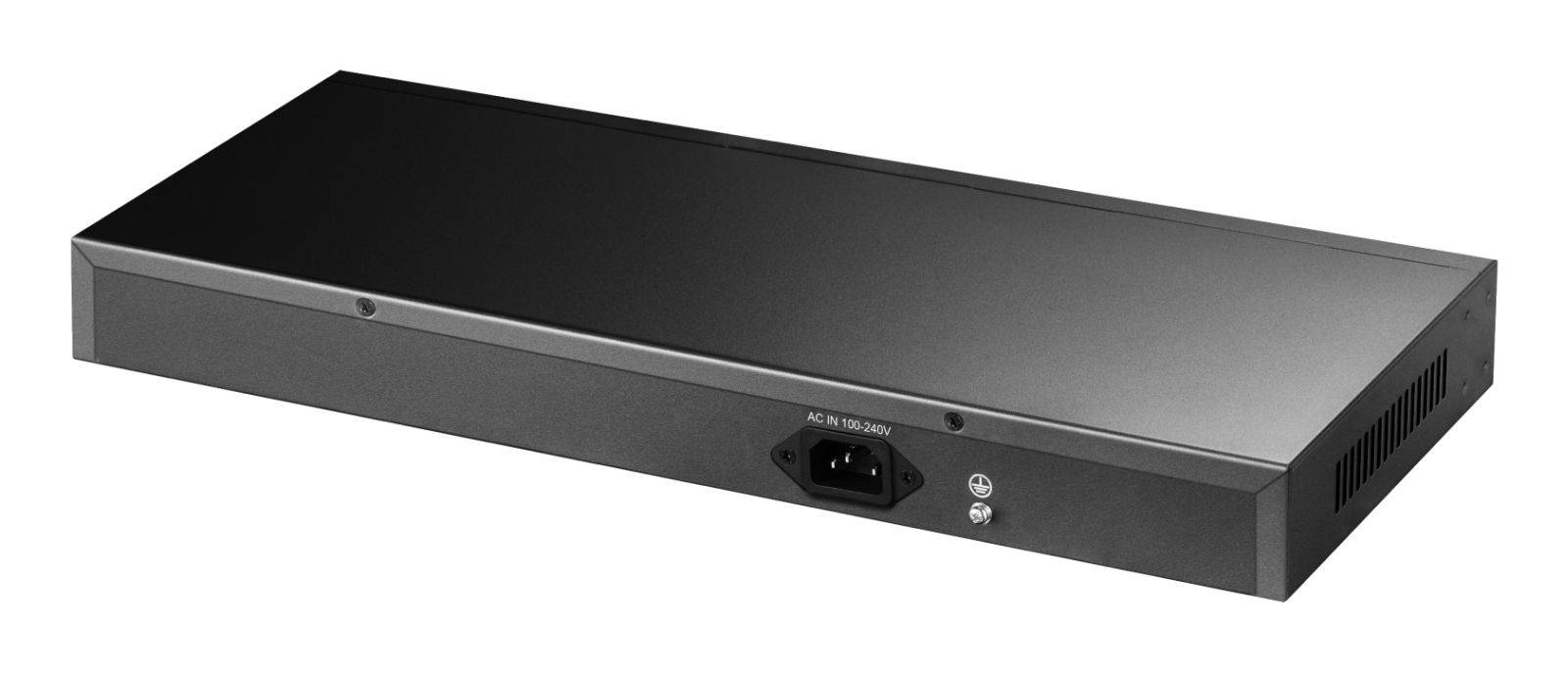

CUDY GS1024E 24-port Gigabit Switch Light Managed Rackmount-1

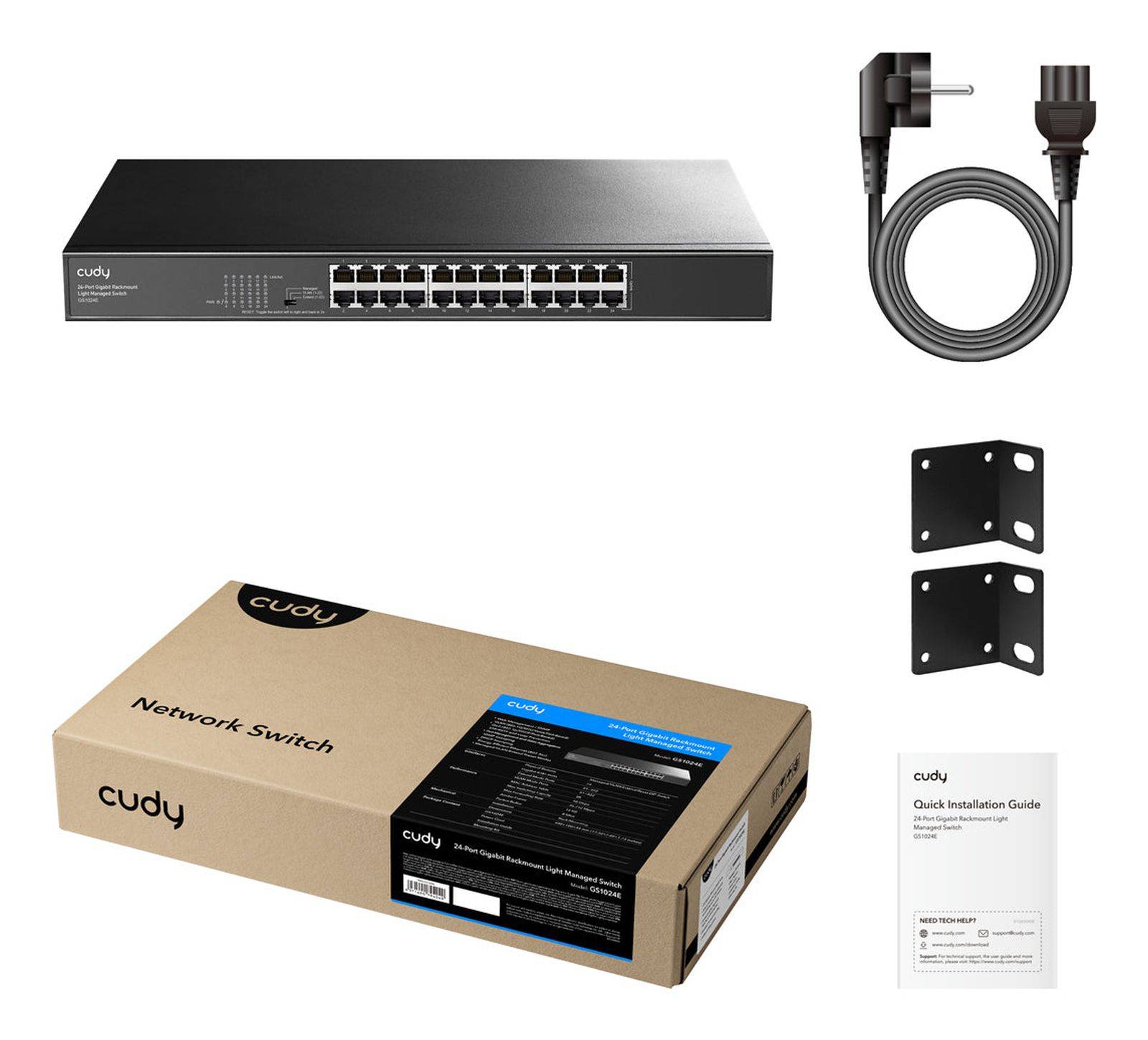

CUDY GS1024E 24-port Gigabit Switch Light Managed Rackmount-2

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Cudy GS1024E Network Switch Managed Gigabit Ethernet (10/100/1000) Black

Managed
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 24
Cat3, Cat5, Cat5e 10BASE-T, 100Base-TX, 1000BASE-T.
MAC address table: 8192 entries Routing/switching capacity: 48 Gb/s.
Rack installation
AC power supply included

Technical specifications

Energy source: AC

Product type: Network switch

Ethernet ports: 24

10/100/1000 Mbps ports: 24 x

Weight: 1.69 kg

Width: 440 mm

Height: 44 mm

Depth: 180 mm

Type: CUDY

Factory colour: Black

Material (details): Metal

Power supply (details): 90 - 260 V

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Basic switching RJ-45 Ethernet ports quantity: 24

Packet buffer memory: 0.5 MB

Storage relative humidity (H-H): 5 - 90 %

Switching capacity: 48 Gbit/s

Rack mount kit: yes

Jumbo frames: 15000

Flow control support: yes

Power over Ethernet (PoE): no

Quality of Service (QoS) support: yes

Port mirroring: yes

Jumbo frames support: yes

Store-and-forward: yes

Quick start guide: yes

Rack mounting: yes

Flash memory: 8 MB

MAC address table: 8192 Eintragungen

IGMP snooping: yes

Number of VLANs: 4096

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

10G support: no

Storage temperature (T-T): -40 - 70 °C

Package weight: 2.39 kg

Forwarding rate: 35.712 Mpps

Power consumption (max): 11 W

Power supply included: yes

Documents & Downloads

Datasheet

Datasheet 3798951 CUDY GS1024E 24-port Gigabit Switch Light Managed Rackmount

User & Safety Instructions

User & Safety Instructions 3798951 CUDY GS1024E 24-port Gigabit Switch Light Managed Rackmount

Description

Secure and powerful switching

802.1Q/MTU/port based/voice VLAN

802.1Q VLANs enable secure and powerful network segments to be created across multiple managed switches. The other MTU/port-based VLANs provide easier local VLAN configuration.

DSCP/802.1p/port based QoS

DSCP/802.1p QoS identifies DSCP packets in the transmission and prioritizes those latency-sensitive data.

Essential management functions

Left aggregation

Allows you to create multiple LAG groups and multiply the transfer speed of the backbone in your networks.

DHCP snooping

Assign an authorized DHCP server to avoid downtime when another unauthorized DHCP server connects to the network.

IGMP monitoring

Identifies the multicast groups associated with the switch and sends data to the exact ports instead of distributing it.

Avoid loops

Automatically detects network loops and blocks affected ports. Supports STP/RSTP to ensure stable operation in large redundant networks.

Web configuration and SNMP V1/V2

Administration made easy

Monitor port status, configure VLAN groups, LAG, DHCP, and more on the intuitive configuration page. The device also possesses SNMP for the remote and central control.

Managed/VLAN/Advanced Preferences

Base VLAN mode

Disable management features and prevent the down-link ports from communicating with each other to improve network security.

Advanced mode

Disable management features, extend the transmission distance to a maximum of 250 meters, and simplify installation. The speed of these ports is limited to 10 Mbit/s.

Versatile scenarios

Office network

Wi-Fi in the shopping center

Monitoring

ISP FTTB
