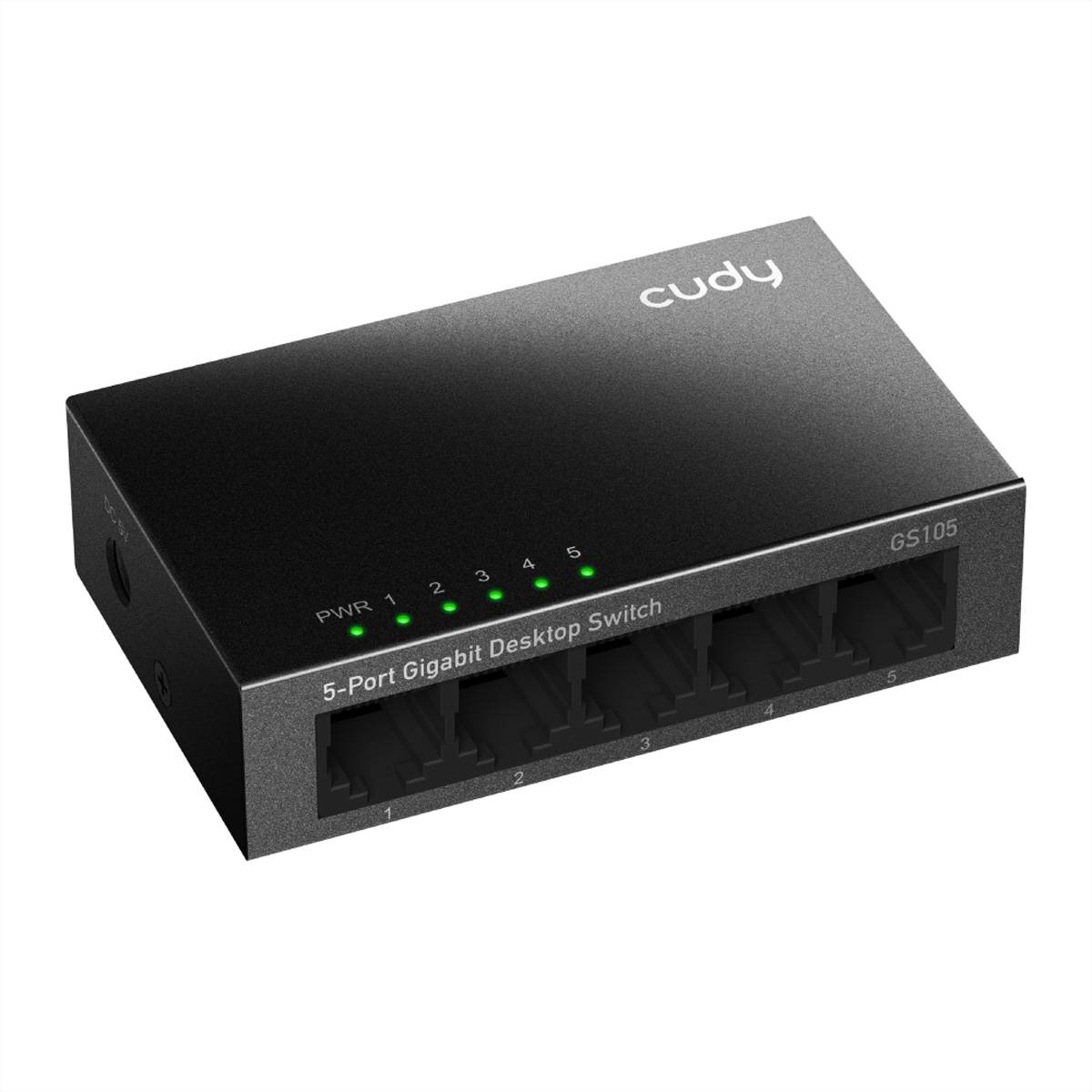

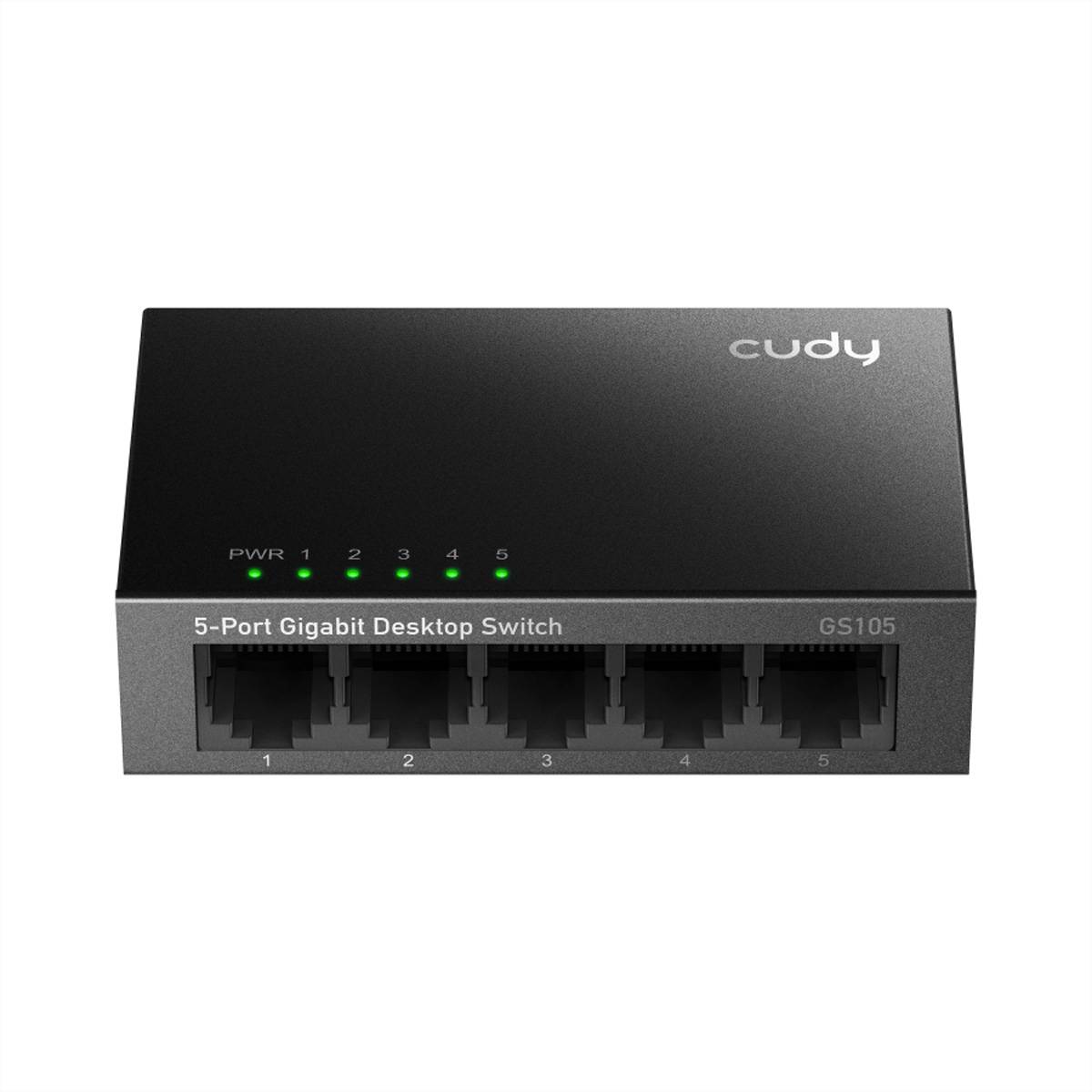

cudy GS105 CUDY GS105 5-Port Gigabit Switch Network switch
EAN:
Part number:
Item no:
Datasheet (PDF)
Cudy GS105 Network Switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Highlights & Details
- Unmanaged
- Number of basic switching RJ-45 Ethernet ports: 5
- Cat3, Cat4, Cat5, Cat5e, Cat. 6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, CAT8, CAT8.1 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 2048 entries Routing/switching capacity: 10 Gb/s.

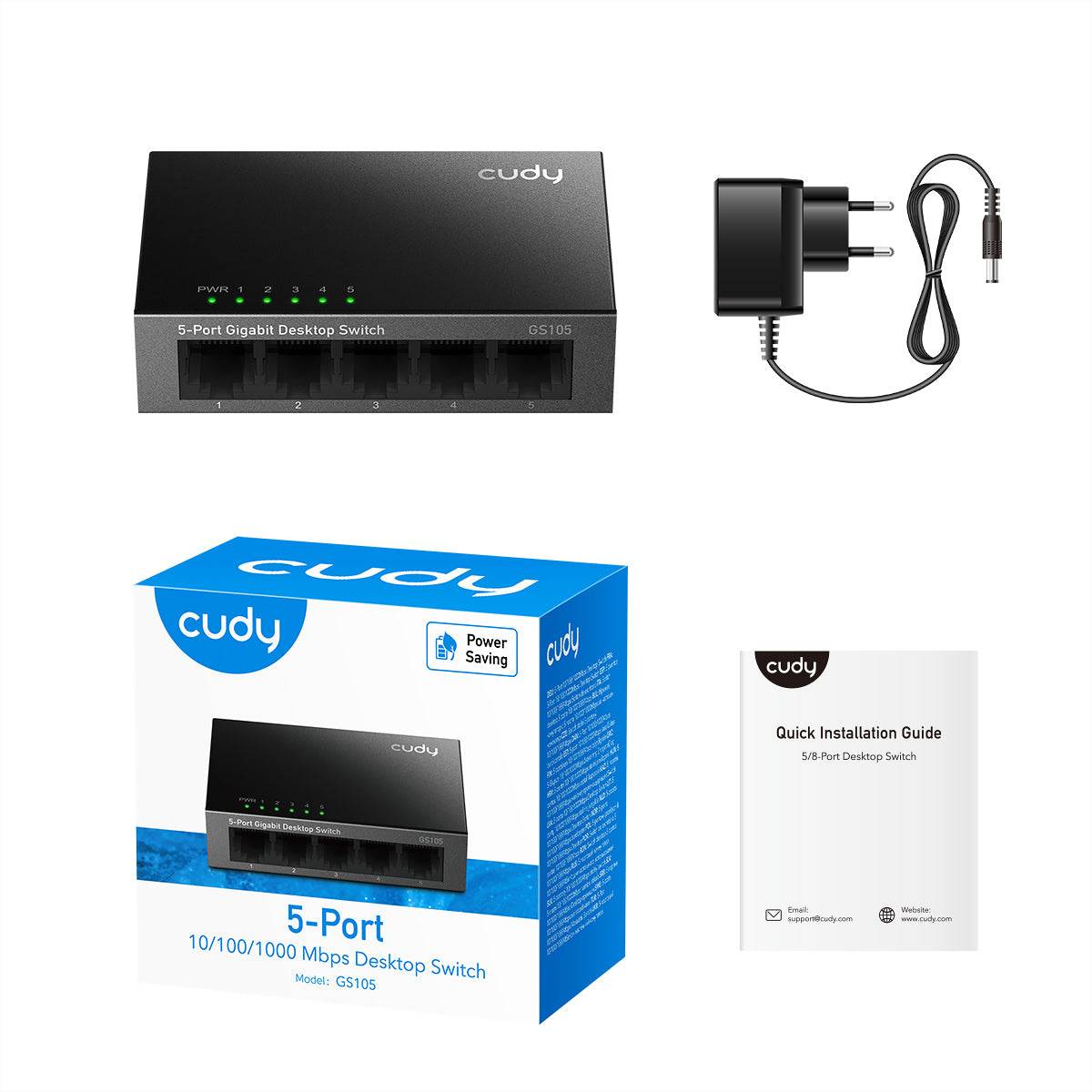

- DC power supply included
Technical specifications
- Power source: Direct current
- Product type
Network switch
- Ethernet ports
5
- 10/100/1000 Mbps ports
5 x
- Weight
115.1 g
- Width
86.5 mm
- Height
23 mm
- Depth
53 mm
- Type
CUDY GS105 5-Port Gigabit Switch
- Factory colour
Black
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Basic switching RJ-45 Ethernet ports quantity
5
- Packet buffer memory
0.125 MB
- Storage relative humidity (H-H)
5 - 90 %
- Switching capacity
10 Gbit/s
- Master (outer) case gross weight
17 kg
- Jumbo frames
9000
- Master (outer) case length
320 mm
- Products per master (outer) case
40 Stück(e)
- Flow control support
yes
- Power over Ethernet (PoE)
no
- Jumbo frames support
yes
- Store-and-forward
yes
- Manual
yes
- Half duplex
yes
- Master (outer) case height
400 mm
- Master (outer) case width
505 mm
- Rack mounting
no
- Mean time between failures (MTBF)
100000 h
- Full duplex
yes
- MAC address table
2048 Eintragungen
- Operating altitude
0 - 3048 m
- Operating relative humidity (H-H)
10 - 90 %
- VLAN support
yes
- Storage temperature (T-T)
-40 - 70 °C
- Forwarding rate
7.44 Mpps
- Power consumption (max)
1.2 W
- Power supply included
yes
Documents & Downloads
Datasheet
Datasheet 3798921 cudy GS105 CUDY GS105 5-Port Gigabit Switch Network switch
User & Safety Instructions
User & Safety Instructions 3798921 cudy GS105 CUDY GS105 5-Port Gigabit Switch Network switch
Description
Remote switches with energy saving mode
Super-fast Gigabit
Five non-blocking 10/100/1000 Mbps Ethernet ports enable instant data transfer without interference.
Additional transmission distance
The Gigabit transmission over 140 meters allows a 40% greater range as compared to a standard switch and simplifies the wiring for larger rooms.
Saves energy
Reducing power consumption with unused Ethernet ports reduces power costs for network equipment.
Wall mounting
Has two mounting holes on the bottom of the housing to allow wall mounting.
A plug-and-play network hub
Connect the office computers to the wired network.
Improve your home devices with stable Ethernet
Robust metal. Compact size
The metal housing provides for easy handling and protection of the network hub and is compact enough to fit in most home network distribution boxes.
This text is machine translated.
Features
- 5 Gigabit Ethernet connections
- Maximum 140 m Gigabit transmission
- IGMP monitoring
- Maximum 1.2 W, no-load 0.2 W
- Table or wall mounting
- Steel housing
- 86.5×53×23 mm (3.41×2.09×0.91″)
