CUDY GS105D - 4.0 - switch - unmanaged - 5 x
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

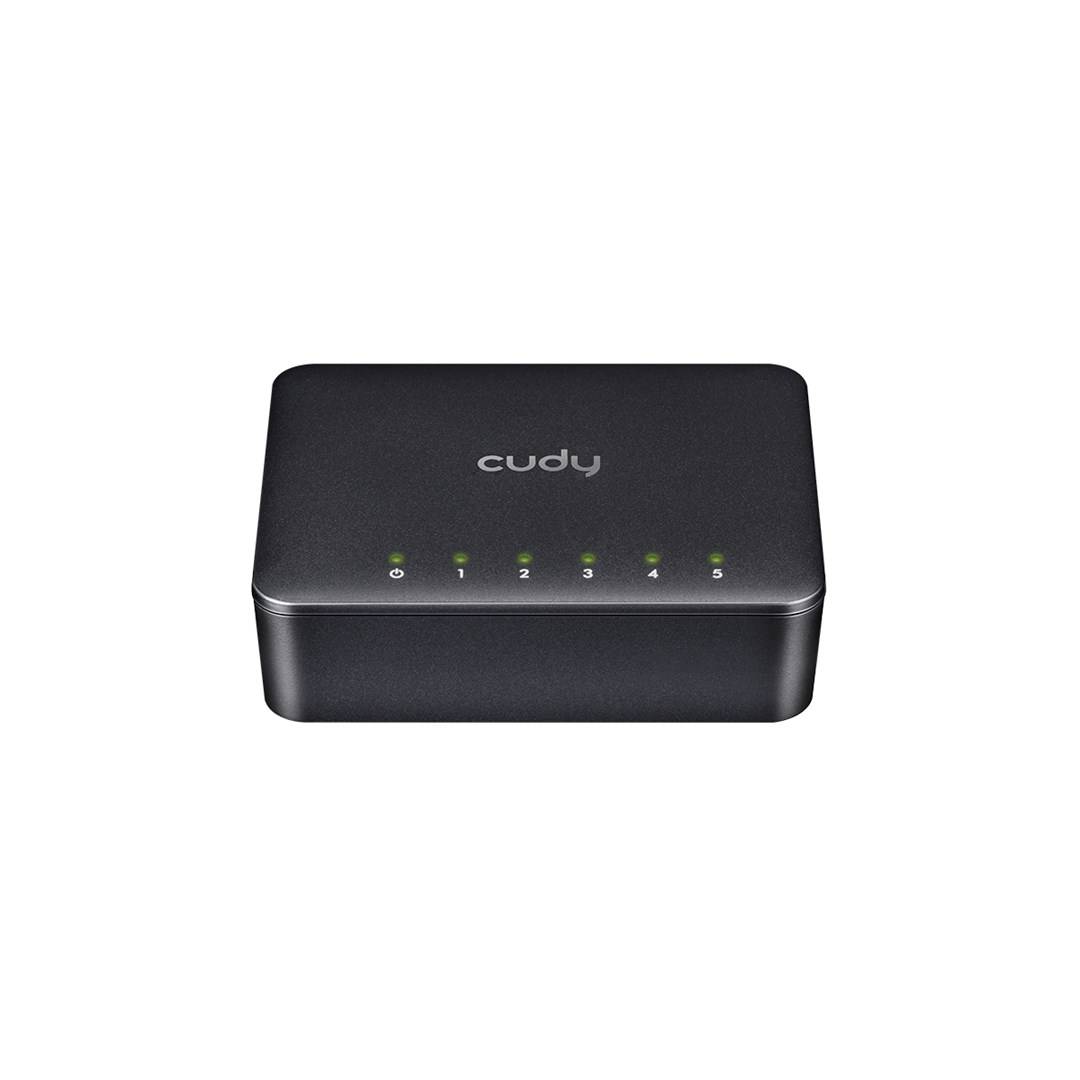

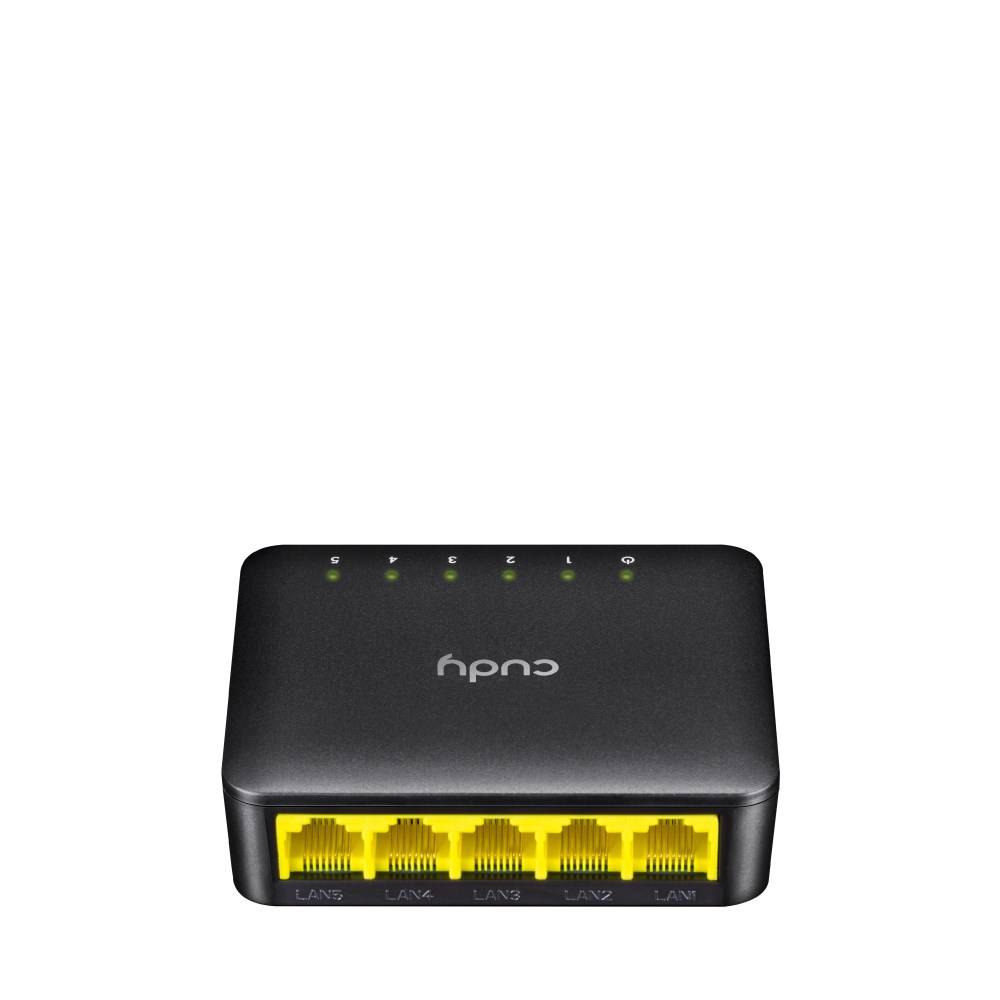

Cudy GS105D Network Switch Unmanaged Gigabit Ethernet (10/100/1000) black
- Unmanaged
- Number of basic switching RJ-45 Ethernet ports: 5
- Cat5, Cat5e, Cat3 100BASE-TX, 10BASE-T, 1000BASE-T
- MAC address table: 2048 entries Routing/switching capacity: 10 Gb/s.
- DC power supply included
Technical specifications
- Power source: Direct current
- Product type
Network switch
- Ethernet ports
5
- 10/100/1000 Mbps ports
5 x
- Weight
52 g
- Width
88 mm
- Height
24 mm
- Depth
52.5 mm
- Type
Cudy GS105D switch di rete Gigabit Ethernet (10/100/1000) Nero
- Factory colour
Black
- Power supply (details)
100 - 240 V
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Basic switching RJ-45 Ethernet ports quantity
5
- Packet buffer memory
0.375 MB
- Storage relative humidity (H-H)
5 - 90 %
- Auto-negotiation
yes
- Switching capacity
10 Gbit/s
- Jumbo frames
15000
- Bandwidth
1 Gbit/s
- Power over Ethernet (PoE)
no
- Jumbo frames support
yes
- Store-and-forward
yes
- Manual
yes
- Half duplex
yes
- Rack mounting
no
- Full duplex
yes
- MAC address table
2048 Eintragungen
- Auto MDI/MDI-X
yes
- Operating relative humidity (H-H)
10 - 90 %
- Storage temperature (T-T)
-40 - 70 °C
- Package weight
137 g
- Forwarding rate
7.44 Mpps
- Plug and Play
yes
- Power supply included
yes
Documents & Downloads
Datasheet
Datasheet 3798919 CUDY GS105D - 4.0 - switch - unmanaged - 5 x
User & Safety Instructions
User & Safety Instructions 3798919 CUDY GS105D - 4.0 - switch - unmanaged - 5 x
Description
Expand the network for more devices
Connect office computers to a wired network
Boost your home devices with stable Ethernet
This text is machine translated.
Features
- Power supply via USB-C
- 5× Gigabit Ethernet ports
- Maximum 140 m Gigabit transmission
- IGMP snooping
- Max 1.2W, idle 0.2W
- Desktop, wall mounting
- 88×52.5×24 mm (3.46×2.07×0.94″)
Scope of delivery

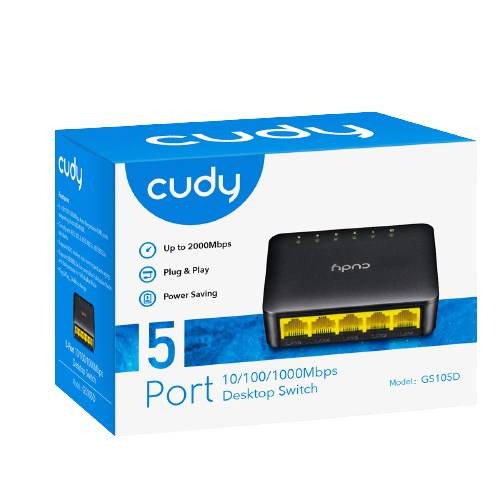

- Switch, power supply, user manual
