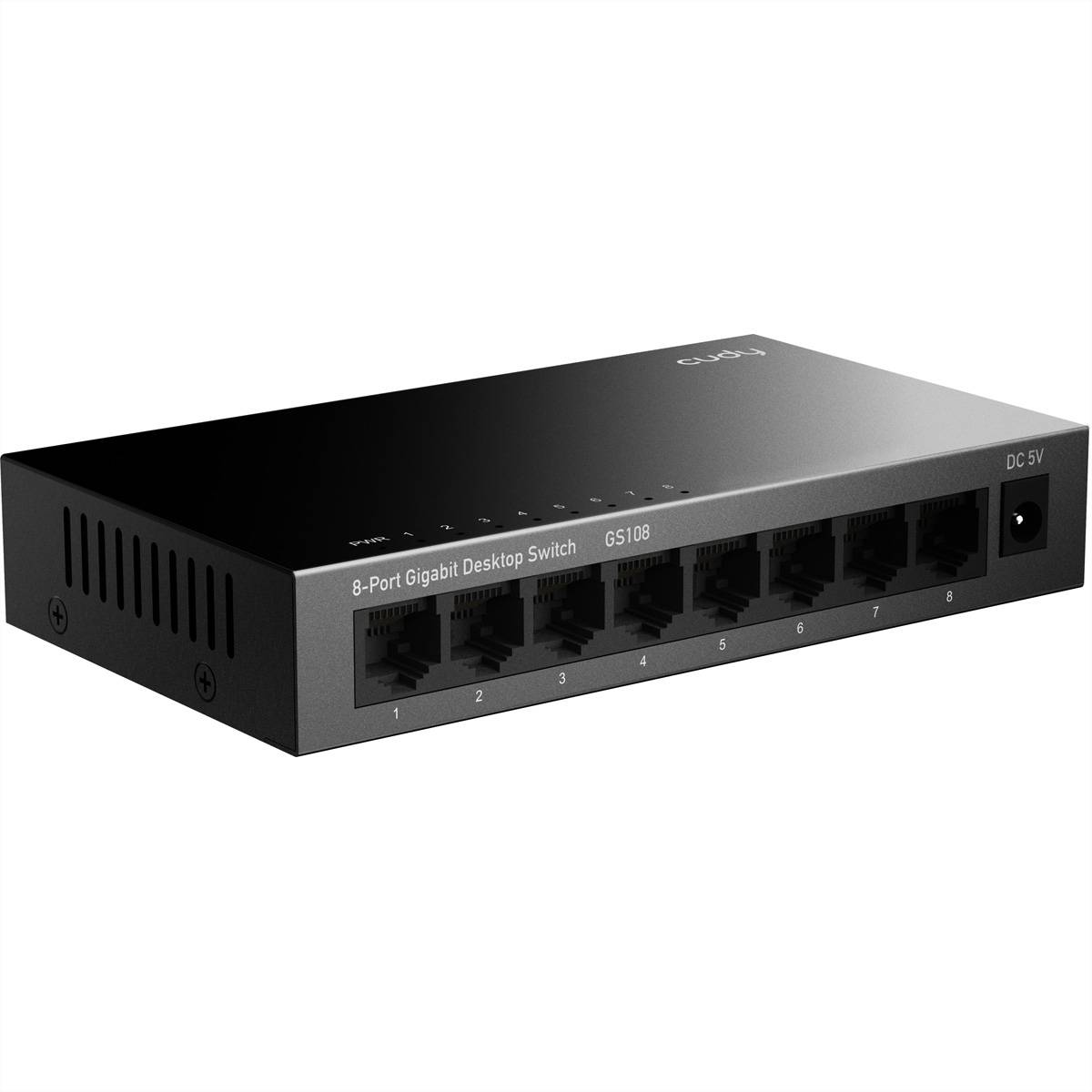

Cudy GS108 Network Switch Unmanaged Gigabit Ethernet (10/100/1000) Black

Highlights & Details

Unmanaged
Number of basic switching RJ-45 Ethernet ports: 8
Cat3, Cat5, Cat5e 10BASE-T, 100Base-TX, 1000BASE-T.
MAC address table: 4096 entries Routing/switching capacity: 16 Gb/s.
DC power supply included

Technical specifications

Power source: Direct current

Product type: Network switch

LAN transfer rate: 1000 MBit/s

Transfer rate: 1000 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 8

10/100 Mbps ports: 8 x

10/100/1000 Mbps ports: 8 x

Weight: 300 g

Width: 138 mm

Height: 25 mm

Depth: 78 mm

Type: GS108 Netzwerk-Switch Gigabit Ethernet 10/100/1000 Schwarz - 1 Gbps

Interfaces: RJ45

Factory colour: Black

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Basic switching RJ-45 Ethernet ports quantity: 8

Packet buffer memory: 0.18 MB

Storage relative humidity (H-H): 5 - 95 %

Switching capacity: 16 Gbit/s

Master (outer) case gross weight: 21 kg

Jumbo frames: 15000

Master (outer) case length: 320 mm

Products per master (outer) case: 40 Stück(e)

Flow control support: yes

Power over Ethernet (PoE): no

Jumbo frames support: yes

Store-and-forward: yes

Quick start guide: yes

Half duplex: yes

Master (outer) case height: 400 mm

Master (outer) case width: 505 mm

Rack mounting: no

Mean time between failures (MTBF): 100000 h

Full duplex: yes

MAC address table: 4096 Eintragungen

Operating altitude: 0 - 3048 m

Operating relative humidity (H-H): 0 - 100 %

VLAN support: yes

Storage temperature (T-T): -40 - 70 °C

Package weight: 500 g

Forwarding rate: 11.904 Mpps

Power supply included: yes

Documents & Downloads

Datasheet

Datasheet 3798922 CUDY GS108 8-port gigabit switch

User & Safety Instructions

User & Safety Instructions 3798922 CUDY GS108 8-port gigabit switch

Description

Super-fast Gigabit

Eight non-blocking 10/100/1000 Mbps Ethernet ports enable instant data transfer without interference.

Additional transmission distance

The Gigabit transmission over 170 meters allows a 70% greater range as compared to a standard switch and simplifies the wiring for larger rooms.

Saves energy

Reducing power consumption with unused Ethernet ports reduces power costs for network equipment.

Wall mounting

Has two mounting holes on the bottom of the housing to allow wall mounting.

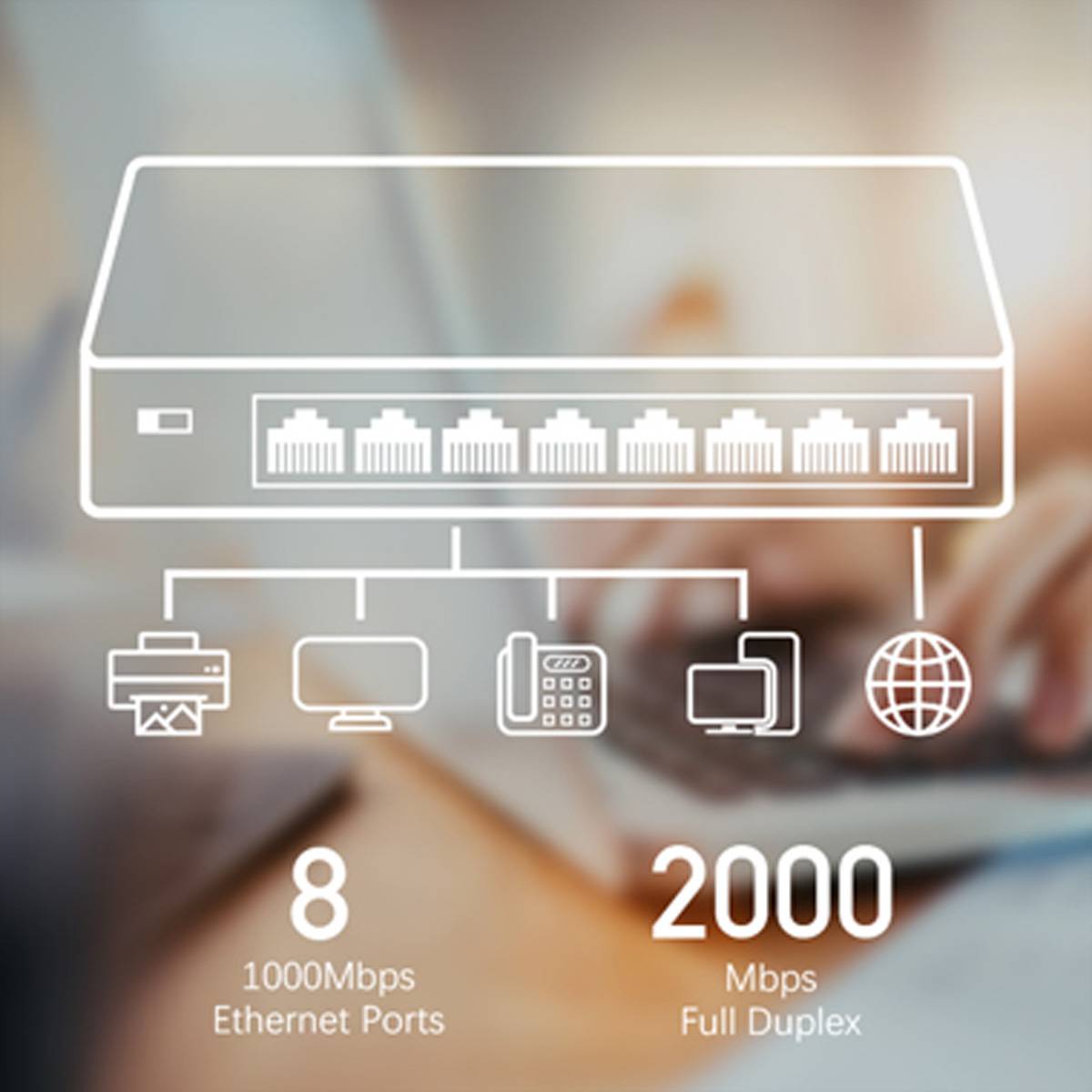

A plug-and-play network hub

Connect the office computers to the wired network.

Improve your home devices with stable Ethernet

Robust metal. Compact size

Compact enough to fit in most home network distribution boxes. The metallic casing provides for a simple handling and protection of your network hub.

This text is machine translated.
