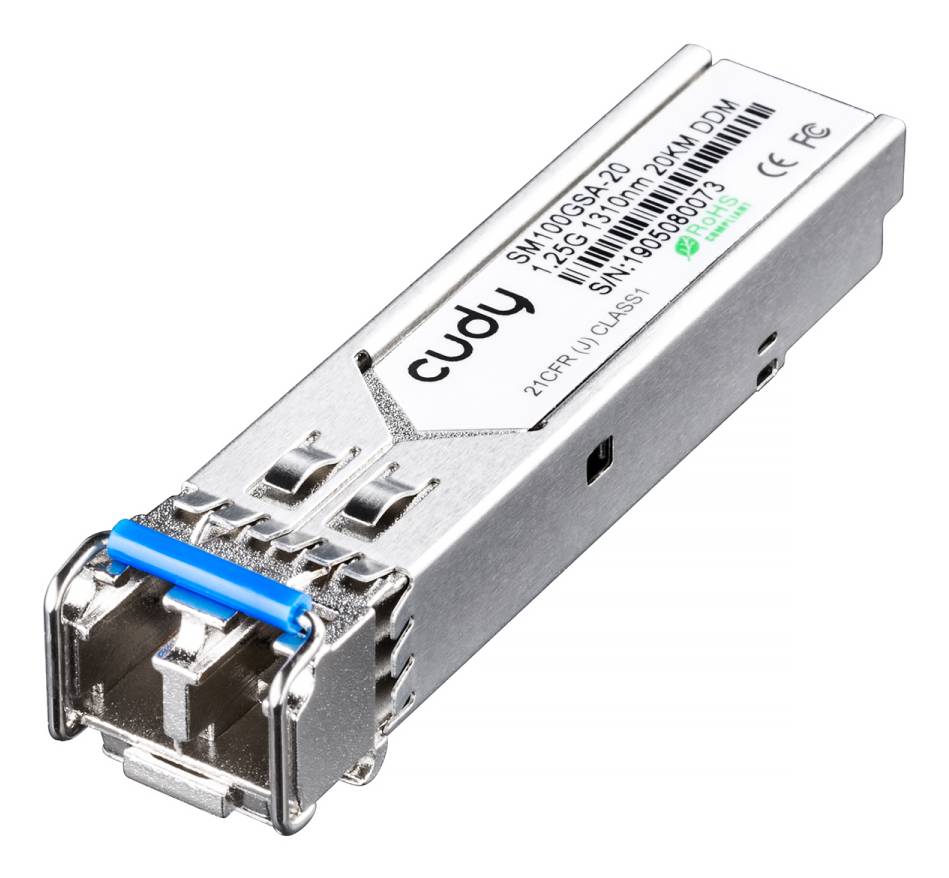

cudy SM100GSA-20 CUDY Transceiver board
EAN:
Part number:
Item no:
Highlights & Details
Cudy SM100GSA-20 network transceiver module fiber optics 1250 Mbit/s SFP 1310 nm
- SFP fiber optics 1250 Mbit/s
- Wavelength 1310 nm
- SFP
- Input voltage: 3.3 V
Technical specifications
- Maximum data transfer rate of 1250 Mbit/s.
- SFP interface
- Form factor: SFP
- Product type
Transceiver board
- Factory colour
Stainless steel
- Depth
68 mm
- Height
13.8 mm
- Width
13.7 mm
LC
- Input voltage
3.3 V
- UKCA
not relevant
- Operating temperature (T-T)
-40 - 70 °C
- Minimum operating temperature
-40 °C
- Maximum voltage
4 V
- Quantity per pack
1 Stück(e)
- Wavelength
1310 nm
- Maximum operating temperature
70 °C
- Single-mode fiber (SMF) supported
yes
- Storage temperature (T-T)
-40 - 85 °C
- Maximum transfer distance
20000 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3798957 cudy SM100GSA-20 CUDY Transceiver board
Description
SFP transceiver, this supports 1G connectors up to 20 km using single-mode fiber with a duplex LC connector.
This text is machine translated.
This text is machine translated.
Features
- Max 1.25 Gbps speed
- Duplex LC connector
- Compatible with SFP slots
- 20 km glass-fiber transmission
Scope of delivery
- CUDY SM100GSA-20 1.25Gb/s SFP GBIC
