cudy WIRELESS ROUTER CUDY AX3000 Router
EAN:
Part number:
Item no:
Datasheet (PDF)

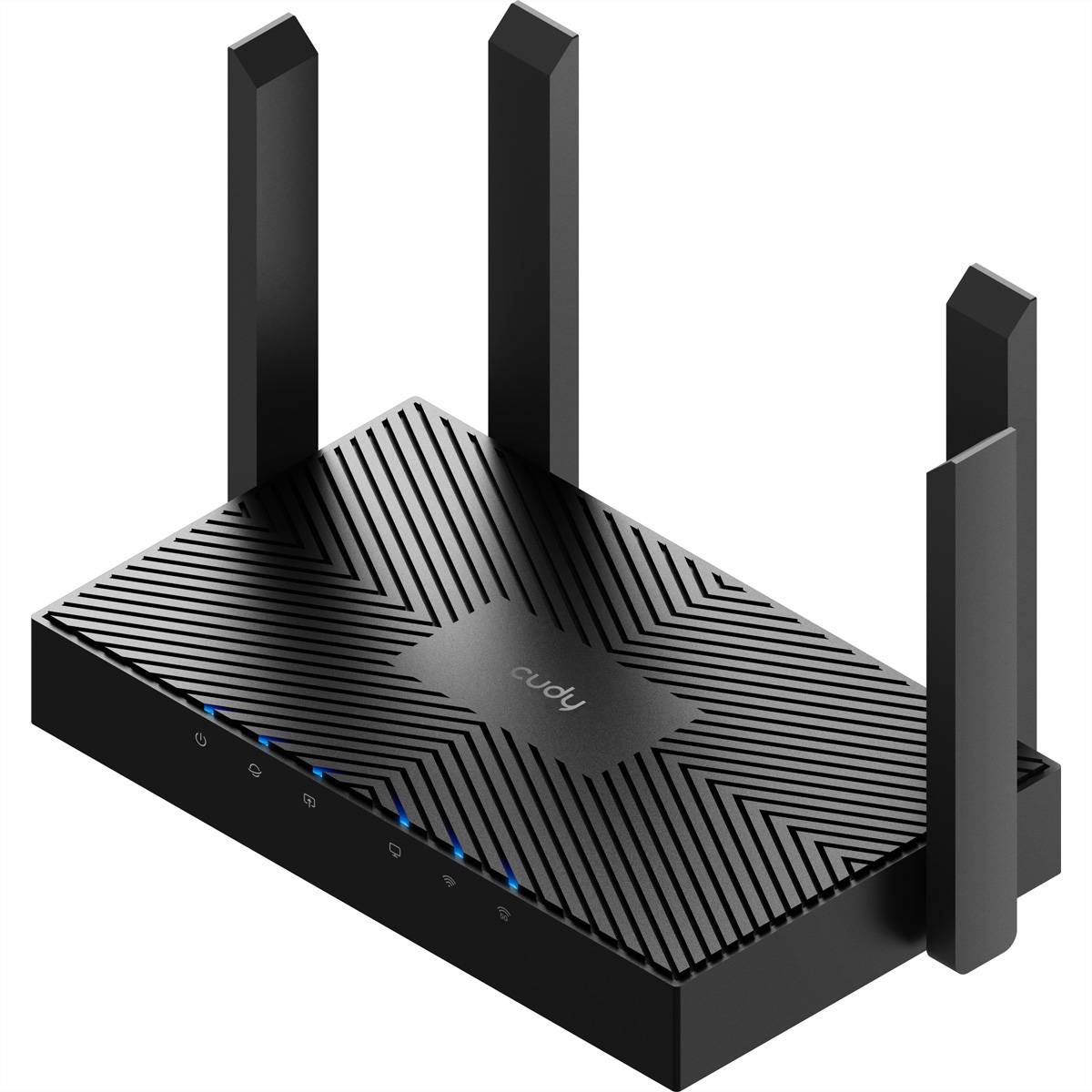

Cudy WR3000 WLAN router Gigabit Ethernet Dual band (2.4 GHz/5 GHz), black
Highlights & Details
- Tablet-router black
- Dual band (2.4 GHz/5 GHz) Wi-Fi 6 (802.11ax) 2402 Mbit/s
- Gigabit Ethernet
- Ethernet WAN
- Number of Ethernet LAN connections (RJ-45): 3
- Web-based management
- MIMO MU-MIMO TECHNOLOGY
Technical specifications
- Wi-Fi band Dual (2.4 GHz/5 GHz)
- WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
- Product type: Tabletop router
- Product type
Router
- Type
WIRELESS ROUTER CUDY AX3000
- WPS compatible
Yes
- No. of antennas
4 x
- 10/100/1000 Mbps ports
3 x
- Width
183.3 mm
- Height
35 mm
- Depth
109 mm
- Weight
295 g
- Factory colour
Black
- Bluetooth
No
- Max. output current
1 A
- Output voltage
12 V
- Power consumption (ON)
4.2 W
- Safety
WPA
WPA2
WPA2
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Ethernet LAN
yes
- Antenna included
yes
- Storage relative humidity (H-H)
5 - 95 %
- Firewall
yes
- URL filtering
yes
- Guest access
yes
- Dynamic DNS (DDNS)
yes
- Wi-Fi Multimedia (WMM)/(WME)
yes
- DC-in jack
yes
- DSL WAN
no
- Ethernet WAN
yes
- SIM card slot
no
- 3G/4G USB modem compatibility
no
- WLAN data transfer rate (max)
2402 Mbit/s
- WLAN data transfer rate (first band)
574 Mbit/s
- WLAN data transfer rate (second band)
2402 Mbit/s
- MIMO
yes
- External power adapter
yes
- MAC address filtering
yes
- Web-based management
yes
- System event log
yes
- DHCP client
yes
- Reset button
yes
- Port triggering
yes
- Bandwidth control
yes
- Number of guest networks (5 GHz)
1
- Number of guest networks (2.4 GHz)
1
- MU-MIMO technology
yes
- Parental control
yes
- Quick installation guide
yes
yes
- Number of products included
1 Stück(e)
- IGMP snooping
yes
- DMZ support
yes
- IP address filtering
yes
- Port forwarding
yes
- Operating relative humidity (H-H)
10 - 90 %
- Storage temperature (T-T)
-40 - 70 °C
- Package weight
614 g
- Mac compatibility
yes
Documents & Downloads
Datasheet
Datasheet 3798883 cudy WIRELESS ROUTER CUDY AX3000 Router
User & Safety Instructions
User & Safety Instructions 3798883 cudy WIRELESS ROUTER CUDY AX3000 Router
Description
Improved coverage, lower latency
Direction detected, signal reinforced
Beamforming detects the direction of the connected devices and produces a focused signal that is aimed at them in order to improve the network coverage.
Easier combinations in games
The improved Wi-Fi 6 standard features downlink and uplink MU-MIMO and OFDMA and it offers up to 8 times (2.4 GHz) to 16 times (5 GHz) higher network capacity for faster responsiveness to heavy loads.

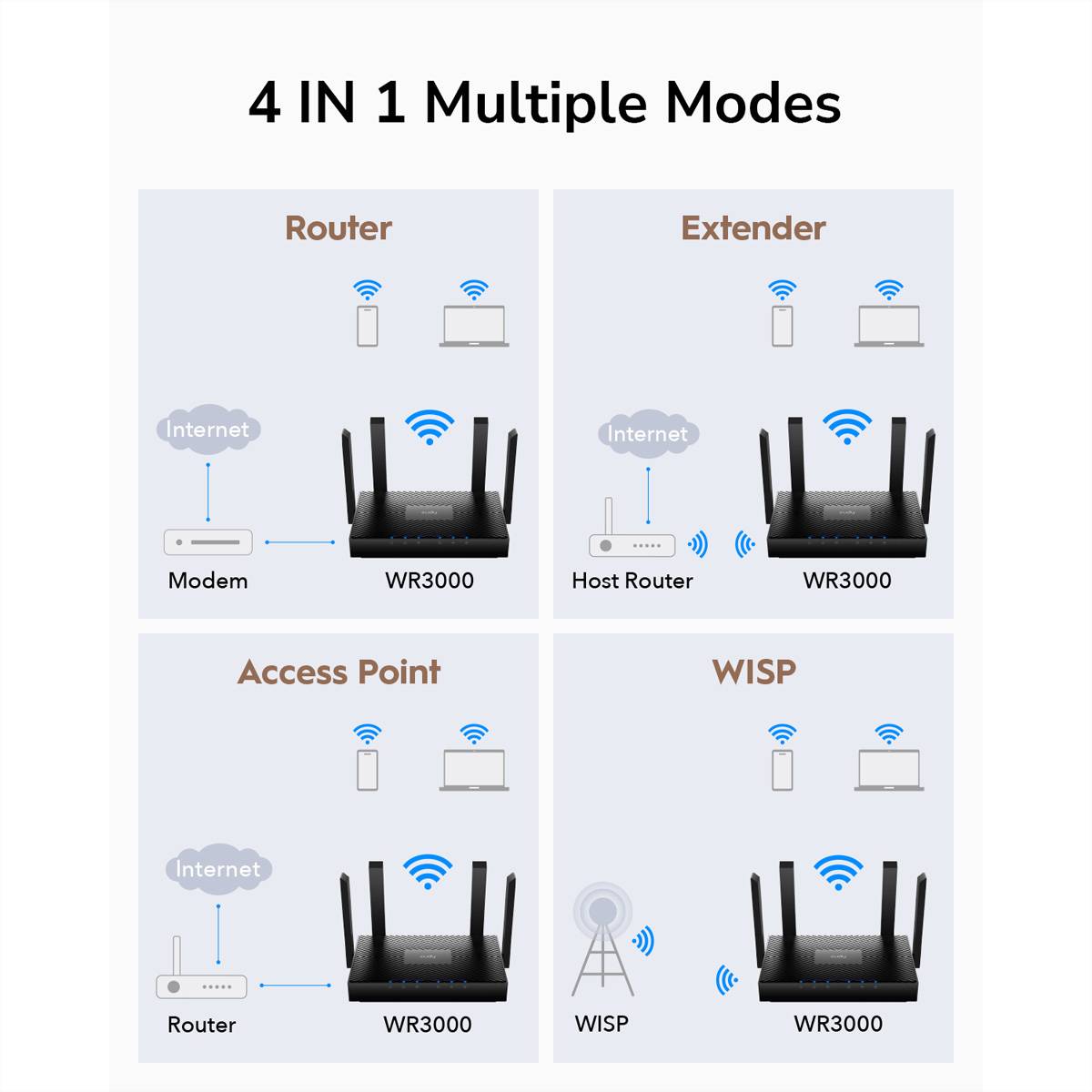

WLAN Routers
WLAN repeater
Wireless Access Point
WISP
Versatile functions
VPN server and client
Enables working from home and secure remote access through support of common VPN protocols. (Requires firmware version 1.16.1 or later)
DNS encryption
Protects your browser data from data leaks through DNS over TLS services with Cloudflare, Google, and Quad9.
Cudy Mesh Ready
Supports Cudy Mesh to enable seamless roaming throughout the house with other Cudy Mesh devices.
IPTV
Configure a specific network port for IPTV transmission to transmit TV services from the network operator to your TV.
This text is machine translated.
Features
- 1.2 GHz Dual-Core-CPU
- 4-Stream Dual band WLAN 6
- 2402 Mbit/s + 574 Mbit/s WLAN
- 4 Gigabit Ethernet connections
- Covers 130 m² (1,400 ft²)
- Cudy Mesh, VPN server and client
- Cudy-APP, Cloud-control
Scope of delivery
- Router, instructions, mains adapter
