CUVEO Wireless Blinds actuator CR-RO500 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

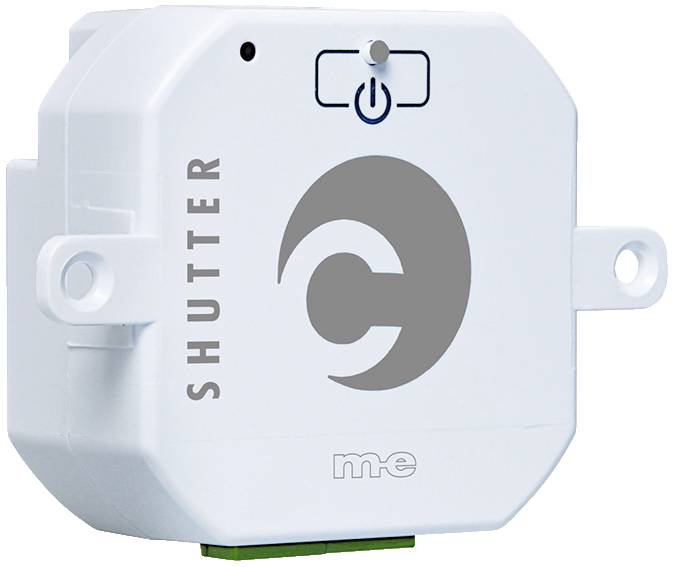

CUVEO wireless shutter switch built-in, 500 watt (receiver)
- For controlling a connected shutter or blind motor
- Inconspicuous mounting in the UP-socket, behind sockets, wall switches or in intermediate ceilings
- Integrated overload protection
- Switching capacity: Max. 500 watts
Technical specifications
- Frequency: 433.92 MHz
- Product type
Blinds actuator
- Series
CUVEO
- Transfer Standard (Smart Home)
Manufacturer-specific
- Max. switching capacity
500 W
- Used at
Indoors
- Power supply (LOV)
mains-powered
- Data transfer (Smart Home)
Wireless
- Frequency
434 MHz
50 m
- Mounting type
Recess-mount
- Factory colour
White
- Width
49 mm
- Height
68 mm
- Depth
25 mm
- Dim
(W x H x D) 49 x 68 x 25 mm
- Hub
Not required
- Data exchange
Unidirectional (uni)
n.rel.
Documents & Downloads
Datasheet
Datasheet 2886945 CUVEO Wireless Blinds actuator CR-RO500 W
User & Safety Instructions
User & Safety Instructions 2886945 CUVEO Wireless Blinds actuator CR-RO500 W
Description
The individual components of the CUVEO radio switch system can be combined as required, i.e. different receivers can be controlled from different transmitters within the radio range. 8 transmitters per receiver are possible. There is no limit to the number of receivers per transmitter.
The CR-RO 500 wireless flush-mounted roller shutter switch enables a roller blind or similar to be connected to it Blind motor with a CUVEO wireless wall switch or a CUVEO remote control for wireless operation. It serves as an addition to a conventional blind button. This means that the existing shutter button for "travel upwards/downwards" is retained; in addition, the roller blind motor can now also be controlled with a CUVEO radio wall switch or a CUVEO remote control.
The wireless range is approx. 50 m outdoors. If required, the range can be extended by using the CUVEO Repeater CR-R1.
This text is machine translated.
The CR-RO 500 wireless flush-mounted roller shutter switch enables a roller blind or similar to be connected to it Blind motor with a CUVEO wireless wall switch or a CUVEO remote control for wireless operation. It serves as an addition to a conventional blind button. This means that the existing shutter button for "travel upwards/downwards" is retained; in addition, the roller blind motor can now also be controlled with a CUVEO radio wall switch or a CUVEO remote control.
The wireless range is approx. 50 m outdoors. If required, the range can be extended by using the CUVEO Repeater CR-R1.
This text is machine translated.
Scope of delivery
- 1 x Wireless roller shutter switch
Hints
Compatible with the CUVEO system only.
System requirements
- You also need a wireless transmitter from the CUVEO series from m-e.
