CUVEO Wireless Motion detector CT-PIn S
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

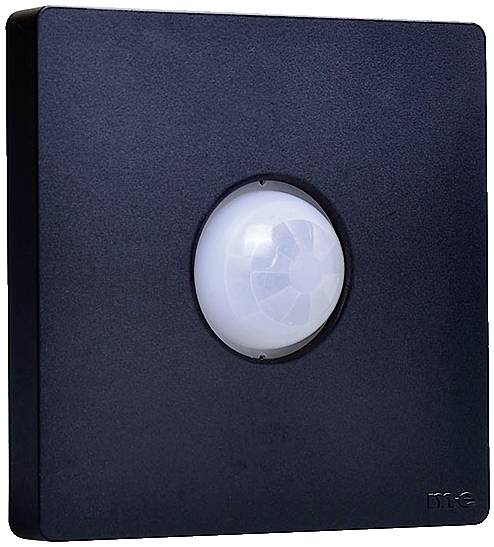

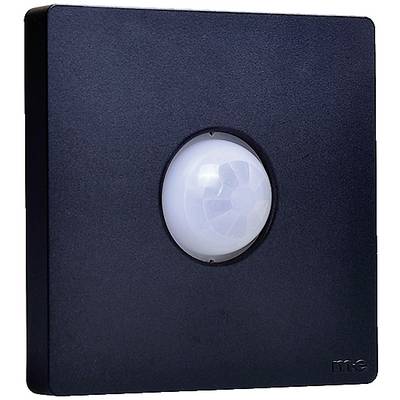

CUVEO Radio motion detector interior black (transmitter)
- Transmitter for indoors
- Automatic ON switch with motion
- Coverage angle of 90°, can be individually adjusted with cover caps included
- Detection range up to 8 m
- Values for brightness and time can be set
- Adjustable activation duration: 5 min, 30 sec, 15 sec, 5 sec
Technical specifications
- Frequency: 433.92 MHz
- Batteries 2 x 1.5 V AAA (included)
- Product type
Motion detector
- Series
CUVEO
- Transfer Standard (Smart Home)
Manufacturer-specific
- Used at
Indoors
- Power supply (LOV)
battery-powered
- Data transfer (Smart Home)
Wireless
- Frequency
434 MHz
50 m
- Factory colour
Black
- Width
80 mm
- Height
80 mm
- Depth
27 mm
- Dim
(W x H x D) 80 x 80 x 27 mm
- Hub
Not required
- Data exchange
Unidirectional (uni)
n.rel.
Documents & Downloads
Datasheet
Datasheet 2886953 CUVEO Wireless Motion detector CT-PIn S
User & Safety Instructions
User & Safety Instructions 2886953 CUVEO Wireless Motion detector CT-PIn S
Description
The individual components of the CUVEO radio switch system can be combined as required, i.e. different receivers can be controlled from different transmitters within the radio range. 8 transmitters per receiver are possible. There is no limit to the number of receivers per transmitter.
If motion is detected in the detection area of the sensor, the radio motion detector radio-activated switches one or more programmed CUVEO receivers ON and OFF for the selected time. If a new motion is detected by the sensor within this set time, the time interval starts again. Both the activation threshold (brightness) and the activation duration can be adjusted.
The wireless range is approx. 50 m outdoors. If required, the range can be extended by using the CUVEO Repeater CR-R1.
This text is machine translated.
If motion is detected in the detection area of the sensor, the radio motion detector radio-activated switches one or more programmed CUVEO receivers ON and OFF for the selected time. If a new motion is detected by the sensor within this set time, the time interval starts again. Both the activation threshold (brightness) and the activation duration can be adjusted.
The wireless range is approx. 50 m outdoors. If required, the range can be extended by using the CUVEO Repeater CR-R1.
This text is machine translated.
Scope of delivery
- Wireless motion detector for indoors
- 2 x 1.5 V AAA batteries

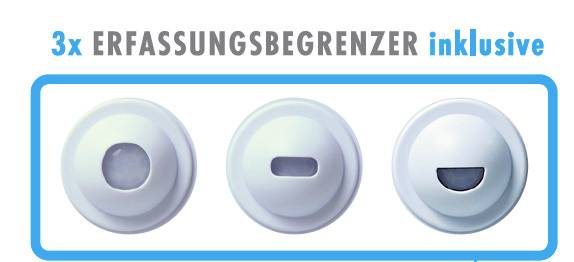

- 3 x detection limiter.
Hints
Available in black and white. Compatible with the CUVEO system only.
System requirements
- You also need a wireless receiver from the CUVEO series from m-e.
