CUVEO Wireless Socket, Dimmer CR-D300 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

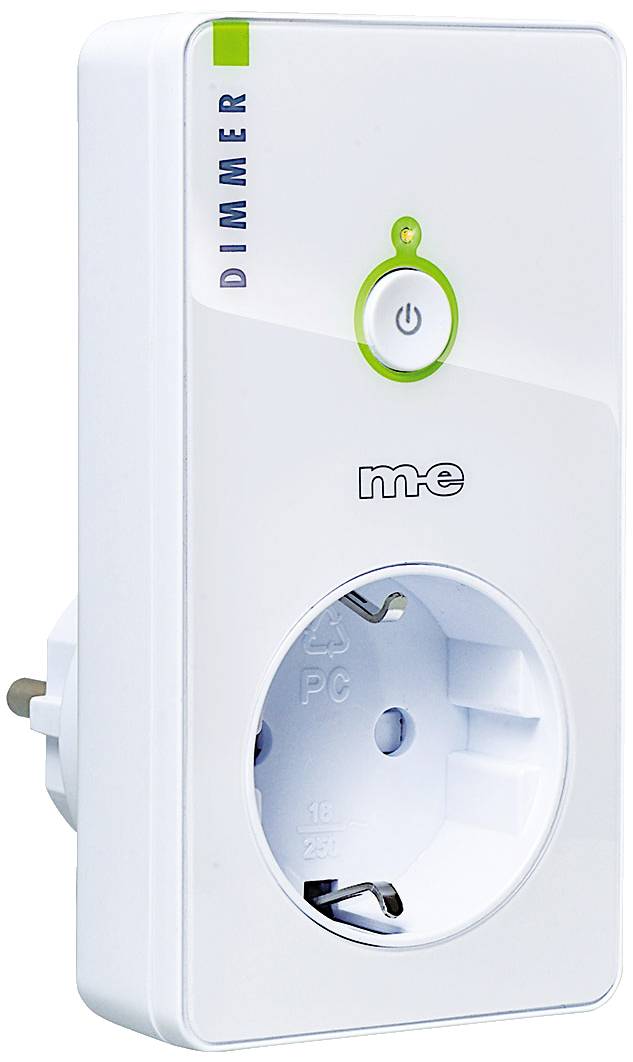

CUVEO Radio-socket dimmer white, 200 watt (receiver)
- ON/OFF switch and DIMMING at the touch of a button
- Switching capacity: LED 5 - 20 Watt, transformer 100 Watt and incandescent bulb max. 200 Watt ohmic load
- Operated at the device or via radio transmitter
- Integrated overload protection
- Increased contact protection
Technical specifications
- Frequency: 433.92 MHz
- Product type
Socket
- Series
CUVEO
- Transfer Standard (Smart Home)
Manufacturer-specific
- Max. switching capacity
200 W
- Used at
Indoors
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Data transfer (Smart Home)
Wireless
- Frequency
434 MHz
70 m
- Factory colour
White
- Width
58 mm
- Height
110 mm
- Depth
72 mm
- Dim
(W x H x D) 58 x 110 x 72 mm
- Hub
Not required
- Data exchange
Unidirectional (uni)
n.rel.
Documents & Downloads
Datasheet
Datasheet 2886965 CUVEO Wireless Socket, Dimmer CR-D300 W
User & Safety Instructions
User & Safety Instructions 2886965 CUVEO Wireless Socket, Dimmer CR-D300 W
Description
The individual components of the CUVEO radio switch system can be combined as required, i.e. different receivers can be controlled from different transmitters within the radio range. 8 transmitters per receiver are possible. There is no limit to the number of receivers per transmitter.
This dimmable wireless socket enables a consumer load to be switched on or off manually at the device, with a CUVEO wireless wall switch or a CUVEO remote control. Furthermore, the consumer, if suitable, can also be dimmed.
The wireless range is approx. 70 m outdoors. If required, the range can be extended by using the CUVEO Repeater CR-R1.
This text is machine translated.
This dimmable wireless socket enables a consumer load to be switched on or off manually at the device, with a CUVEO wireless wall switch or a CUVEO remote control. Furthermore, the consumer, if suitable, can also be dimmed.
The wireless range is approx. 70 m outdoors. If required, the range can be extended by using the CUVEO Repeater CR-R1.
This text is machine translated.
Scope of delivery
- Radio-socket dimmer
Hints
Available in black and white. Compatible with the CUVEO system only.
System requirements
- You also need a wireless receiver from the CUVEO series from m-e.
