CUVEO Wireless Socket, Switch CR-S2000 S
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
5% = € 0.71
€ 13.57
5
7% = € 0.99
€ 13.29
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
14-day return policy included
Highlights & Details

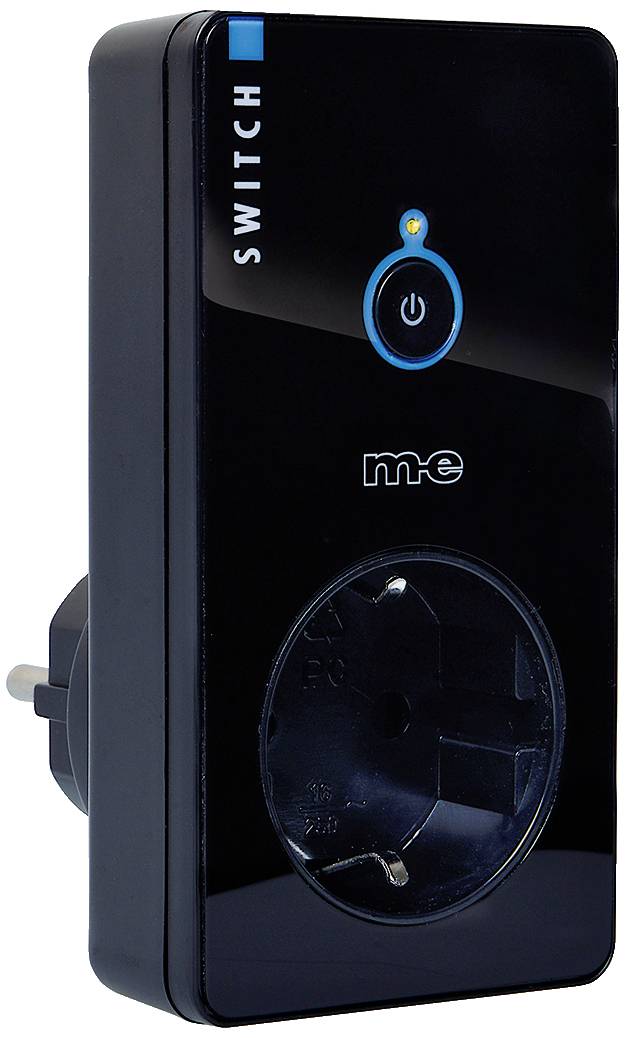

CUVEO wireless socket switch black, 2000 watt (receiver)
- SWITCHING lights ON/OFF, etc. Devices
- Switching capacity max. 2000 watts ohm resistive load, max. 600 watts inductive load
- Operated at the device or via radio transmitter
- Integrated overload protection
- Increased contact protection
Technical specifications
- Frequency: 433.92 MHz
- Product type
Socket
- Series
CUVEO
- Transfer Standard (Smart Home)
Manufacturer-specific
- Max. switching capacity
2000 W
- Used at
Indoors
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Data transfer (Smart Home)
Wireless
- Frequency
434 MHz
70 m
- Factory colour
Black
- Width
58 mm
- Height
110 mm
- Depth
72 mm
- Dim
(W x H x D) 58 x 110 x 72 mm
- Hub
Not required
- Data exchange
Unidirectional (uni)
n.rel.
Documents & Downloads
Datasheet
Datasheet 2886964 CUVEO Wireless Socket, Switch CR-S2000 S
User & Safety Instructions
User & Safety Instructions 2886964 CUVEO Wireless Socket, Switch CR-S2000 S
Description
The individual components of the CUVEO radio switch system can be combined as required, i.e. different receivers can be controlled from different transmitters within the radio range. 8 transmitters per receiver are possible. There is no limit to the number of receivers per transmitter.
When using this radio-controlled switch socket, a consumer load connected to it can be turned on or off wirelessly using a CUVEO radio wall switch or a CCUVEO remote control.
The wireless range is approx. 70 m outdoors. If required, the range can be extended by using the CUVEO Repeater CR-R1.
This text is machine translated.
When using this radio-controlled switch socket, a consumer load connected to it can be turned on or off wirelessly using a CUVEO radio wall switch or a CCUVEO remote control.
The wireless range is approx. 70 m outdoors. If required, the range can be extended by using the CUVEO Repeater CR-R1.
This text is machine translated.
Scope of delivery
- Radio-controlled mains socket switch
Hints
Available in black and white. Compatible with the CUVEO system only.
System requirements
- You also need a wireless receiver from the CUVEO series from m-e.
