d.center GFTA422V0300 FO socket White 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

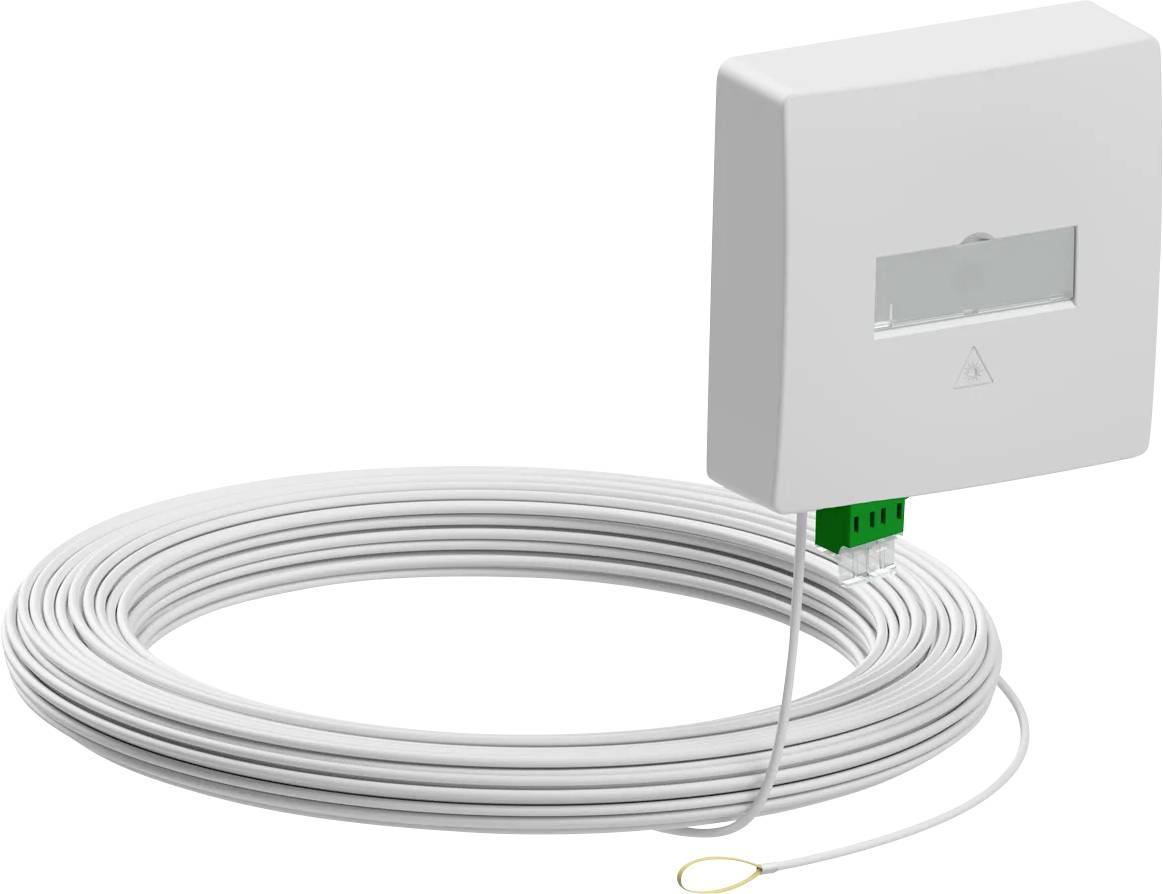

- GF-TA 42 fiber optic socket with connected LC/APC duplex cable (with pull-in unit)

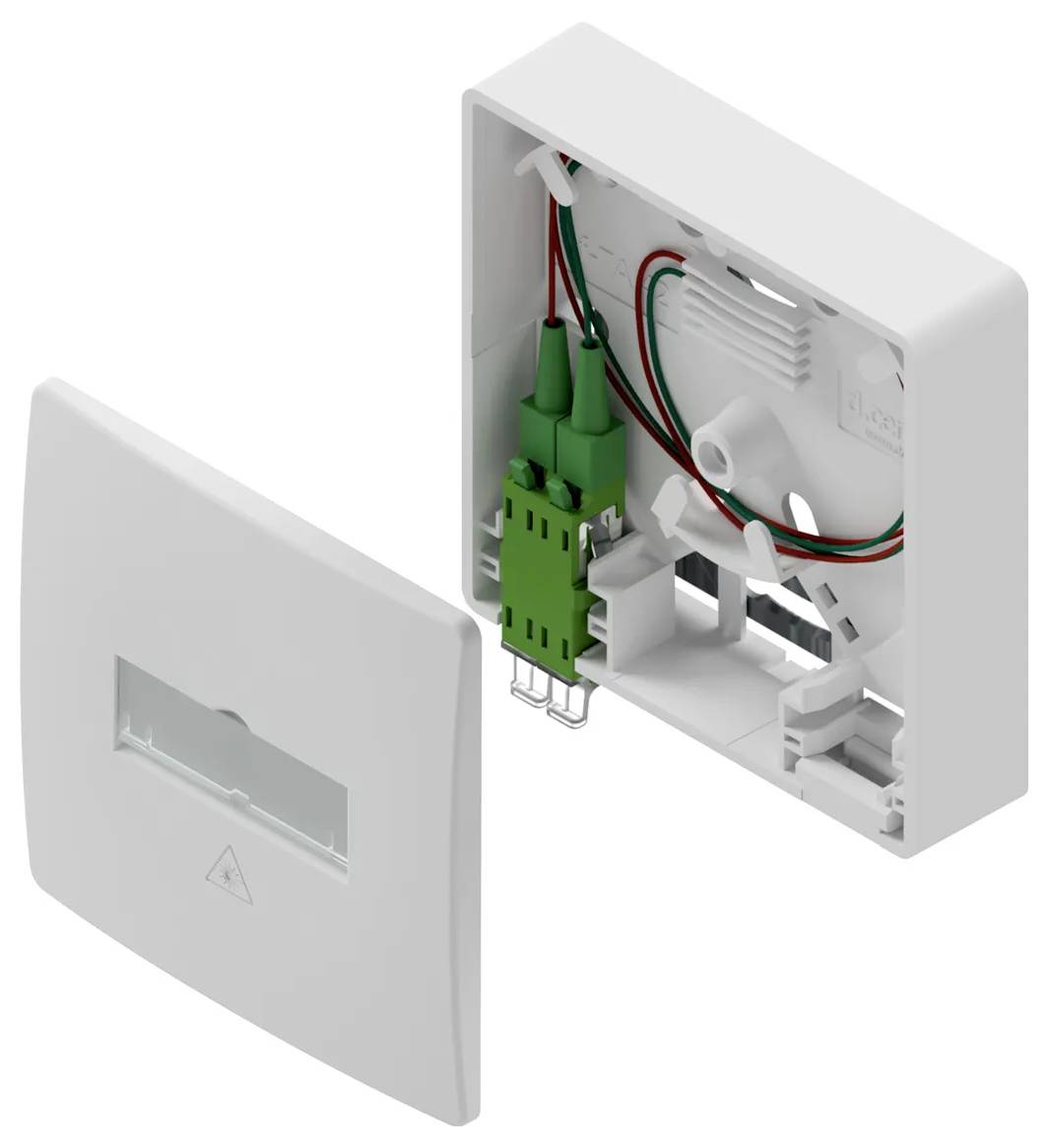

- Coupling with inner laser shutter and dust protection
- Insertion loss of the clutch < 0.2 dB
- Up to 500 mating cycles for the clutch
- Ready-made 2 fiber optic cable with LC/APC duplex plug
- Standard lengths: 15m, 20m, 30m, 40m, 50m; other lengths on request
- Outer diameter of cable: 2.3 mm
- Cable fiber type ITU-T G.657.A2
- Fire class B2ca-S1A, d0, a1
- Storage of 4x Crimp splice
- Wall mounting in-wall or flush-mounting possible; also mountable on standard cavity socket
- With labeling field
Technical specifications
- Product type
FO socket
- Type A
AMP
- Type B
AMP
- Factory colour
White
- Cable length
0 cm
- Version
Cable
- Cable use
FO
- Connection type
Fibreglass
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3798549 d.center GFTA422V0300 FO socket White 1 pc(s)
Description
D.center® GF-TA 42, pre-assembled & terminated, equipped with 1x LCD/APC coupling & 1x LC/APC duplex cable 9/125µm. The GF-TA 42 system covers all the requirements for the so-called network level 4 for FTTH cabling. The fiber optic subscriber connection forms the closing point of the fiber optic cable in the flat, pre-assembled or ready to splice version.
