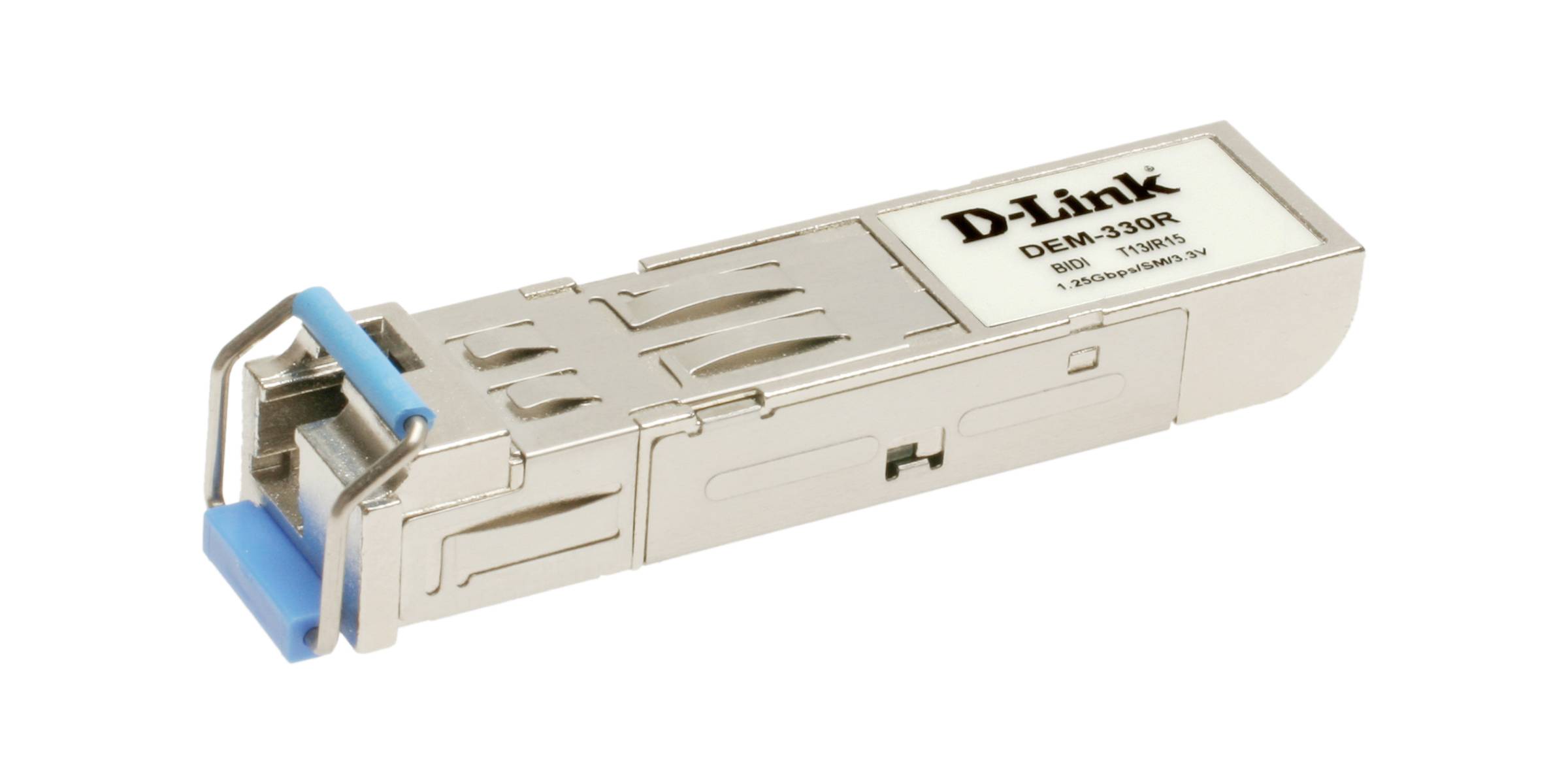

D-Link DEM-330R Transceiver board 1.25 GBit/s 10 km Module type BX
EAN:
Part number:
Item no:
Number
Total (€ 20.16 / piece)
€ 20.16
plus VAT.
14-day return policy included
Highlights & Details
D-Link DEM-330R network transceiver module fiber optics 1250 Mbit/s LC
- LC fiber optics 1250 Mbit/s
- Hot swap
- Input voltage: 3.3 V
Technical specifications
- Maximum data transfer rate of 1250 Mbit/s.
- Interface LC
- Product type
Transceiver board
- Transfer rate
1.25 GBit/s
- Interfaces
LC
SFP
- Module type
BX
- Distances up to
10 km
- Factory colour
Silver
- Depth
55.5 mm
- Height
11.3 mm
- Width
13.4 mm
LC
- Input voltage
3.3 V
- Weight
19.8 g
- Quantity per pack
1 Stück(e)
- Rx wavelength (max)
1550 nm
- Tx wavelength (max)
1310 nm
- Mean time between failures (MTBF)
445890 h
- Hot-swap
yes
- Link budget
18 dB
- Maximum transfer distance
10000 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3841551 D-Link DEM-330R Transceiver board 1.25 GBit/s 10 km Module type BX
Description
- Gigabit Ethernet single-mode fiber (LC simplex)
- WDM bidirectional
- 1310nm transmitter laser (Class 1, EN 60825-1) and 1550nm receiver wavelength
- IEEE 802.3z standard compatible
- Max. 10Km (9/125µm)
- Hot pluggable
- Can only be used as a pair together with THE-330T
- Suitable for all D-Link switches with SFP transceiver slots
This text is machine translated.
- WDM bidirectional
- 1310nm transmitter laser (Class 1, EN 60825-1) and 1550nm receiver wavelength
- IEEE 802.3z standard compatible
- Max. 10Km (9/125µm)
- Hot pluggable
- Can only be used as a pair together with THE-330T
- Suitable for all D-Link switches with SFP transceiver slots
This text is machine translated.
Scope of delivery
- 0
