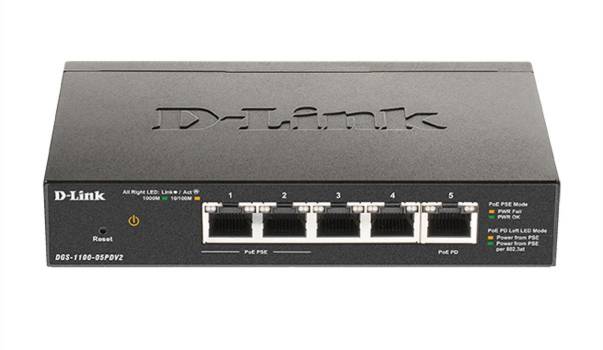

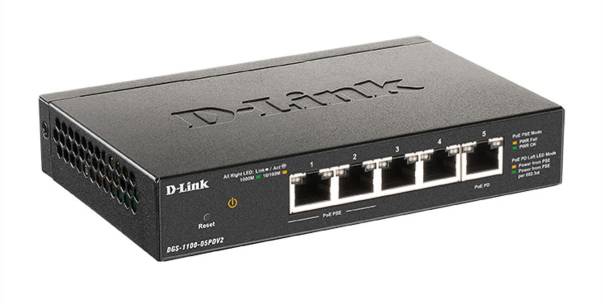

D-Link DGS-1100-05PDV2 DGS-1100-05PDV2 Network switch 5 ports PoE
EAN:
Part number:
Item no:
Datasheet (PDF)
D-Link DGS-1100-05PDV2 Gigabit smart managed switches
Highlights & Details
- Easy Layer 2 management
- Web-based user interface
- PoE options up to a total of 370W
Technical specifications
- 3x 1000Base-T
- 2x 1000Base-T PoE
- Without fan
- 18W with 802.3at / 8W with 802.3af
- Product type
Network switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- 10/100/1000 Mbps ports
5 x
- Router features
PoE
- Power supply (LOV)
Power over Ethernet (PoE)
- Weight
1.32 kg
- Type
DGS-1100-05PDV2
- Interfaces
RJ45
- Factory colour
Black
- Current consumption
PoE
- Port
5 ports
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2290335 D-Link DGS-1100-05PDV2 DGS-1100-05PDV2 Network switch 5 ports PoE
User & Safety Instructions
User & Safety Instructions 2290335 D-Link DGS-1100-05PDV2 DGS-1100-05PDV2 Network switch 5 ports PoE
Description
Simple. Simple. Smart.
The DGS‑1100 smart switch series is a cost-effective solution for environments that require simple network management.
User-friendly web interface
The user-friendly web interface of the DGS-1100 switches allows easy control of Layer 2 functions such as VLANs, Spanning Tree Protocol (STP) and Link Aggregation (static). The DGS-1100 series is versatile in environments that require fast and easy to deploy solutions without additional complexity due to its strong security features such as IGMP Snooping, static MAC addresses and Storm Control.
Easy setup and management
The free D-Link Network Assistant (DNA) displays all connected devices and facilitates initial configuration. The free D-View 7 Network Management System includes a 25-node, 2-probe license and full access to all management tools. Optional upgrade licenses allow you to expand your network and analytics.
MaxPoE with capacities of up to 370 W.
The DGS-1100 smart series includes a range of PoE-enabled switches with hohem power for businesses that want to run a larger number of VoIP phones, wireless access points, or network cameras.
Simple troubleshooting
The DGS-1100 series offers loopback detection and cable diagnostics that help network administrators quickly and easily find and fix network problems. Loopback detection detects loops generated by a particular port and automatically turns off the affected port. The cable diagnostics feature allows network administrators to quickly check the quality of copper cables, identify the type of cable, and detect cable faults.
D‑Link Green technology
Thanks to D-Link Green technology, the DGS-1100 smart series can save power without any functional restrictions. The majority of the product family functions silently and energy-efficiently without fans. All switches comply with the IEEE 802.3az standard and provide scheduled link status detection and PoE (except DGS-1100-05PD and DGS-1100-08P models).
Monitoring Mode
When you select the monitoring mode in the web interface, its user-friendly functions are available for you, with which you can comfortably manage your monitoring network. In this mode, the monitoring devices are automatically detected and combined into a separate automatic monitoring‑VLAN to process their data traffic safely and efficiently.
This text is machine translated.
The DGS‑1100 smart switch series is a cost-effective solution for environments that require simple network management.
User-friendly web interface
The user-friendly web interface of the DGS-1100 switches allows easy control of Layer 2 functions such as VLANs, Spanning Tree Protocol (STP) and Link Aggregation (static). The DGS-1100 series is versatile in environments that require fast and easy to deploy solutions without additional complexity due to its strong security features such as IGMP Snooping, static MAC addresses and Storm Control.
Easy setup and management
The free D-Link Network Assistant (DNA) displays all connected devices and facilitates initial configuration. The free D-View 7 Network Management System includes a 25-node, 2-probe license and full access to all management tools. Optional upgrade licenses allow you to expand your network and analytics.
MaxPoE with capacities of up to 370 W.
The DGS-1100 smart series includes a range of PoE-enabled switches with hohem power for businesses that want to run a larger number of VoIP phones, wireless access points, or network cameras.
Simple troubleshooting
The DGS-1100 series offers loopback detection and cable diagnostics that help network administrators quickly and easily find and fix network problems. Loopback detection detects loops generated by a particular port and automatically turns off the affected port. The cable diagnostics feature allows network administrators to quickly check the quality of copper cables, identify the type of cable, and detect cable faults.
D‑Link Green technology
Thanks to D-Link Green technology, the DGS-1100 smart series can save power without any functional restrictions. The majority of the product family functions silently and energy-efficiently without fans. All switches comply with the IEEE 802.3az standard and provide scheduled link status detection and PoE (except DGS-1100-05PD and DGS-1100-08P models).
Monitoring Mode
When you select the monitoring mode in the web interface, its user-friendly functions are available for you, with which you can comfortably manage your monitoring network. In this mode, the monitoring devices are automatically detected and combined into a separate automatic monitoring‑VLAN to process their data traffic safely and efficiently.
This text is machine translated.
Features
- Web interface: Easy-to-use web interface for administrative functions.
- VLANs: Segment your network into VLANs.
- Monitoring mode interface: D-Link's exclusive monitoring mode interface gives you a snapshot of your surveillance network in no time at all.
