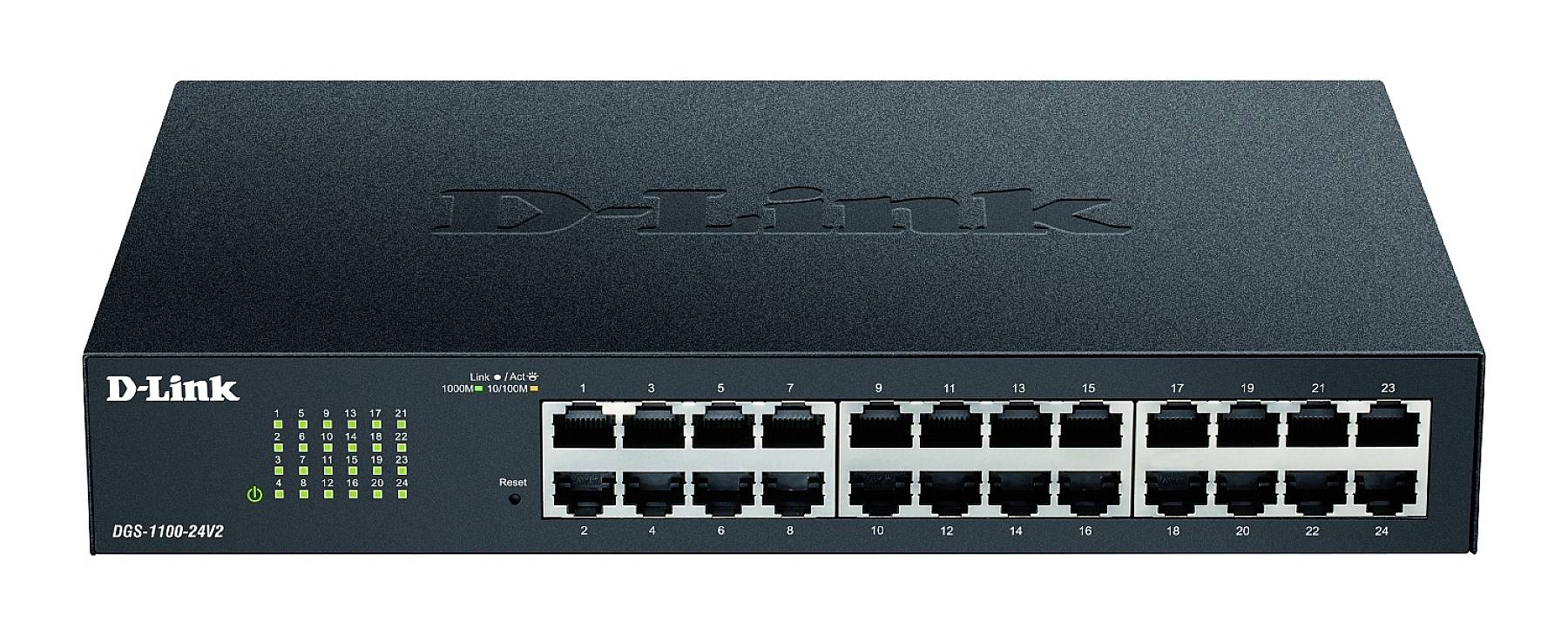

A D-Link network switch with 24 Ethernet ports and LED indicators for connection status. Model number: DGS-1100-24V2.

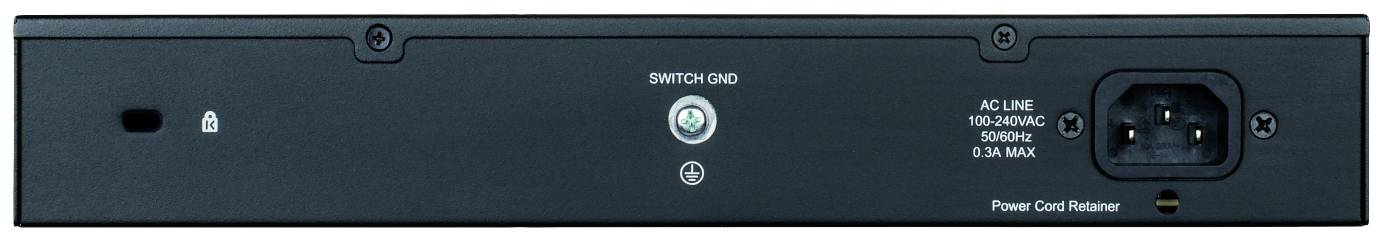

Black rear side of an electronic device with a power socket, a switch, and a security lock.

1/3

Datasheet (PDF)

Unavailable

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

D-Link DGS-1100-24V2/E Gigabit Smart switch (24 ports, 10/100/1000 Mbit/s, simple plug & play installation, without fan)

Highlights & Details

Gigabit Ethernet speed: High-speed ports offer the latest Ethernet technology while maintaining downward compatibility for connections to older computers and devices.Revolutionary energy efficiency: Innovative D-Link green features help to save energy without compromising performance, so you can reduce operating costs and protect the environment.Intelligent and Flexible Management: Powerful switch management capabilities can be performed through the Web management interface or through the client-based utility.

Technical specifications

Product type: Network RJ45 switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 48 Gbit/s

Working principle: Managed switch

Ethernet ports: 24

10/100/1000 Mbps ports: 16 x

Port type: 24 x 10/100/1000 MBit/s

Power supply (LOV): mains-powered

MAC addresses: 8000

Weight: 1.32 kg

Width: 280 mm

Height: 44 mm

Depth: 180 mm

Type: DGS-1100-24V2/E

Factory colour: Black

Current consumption: 100-240V/50-60Hz, internal universal power supply

Port: 24 ports

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2621833 D-Link DGS-1100-24V2/E DGS-1100-24V2/E Network RJ45 switch 24 ports 48 Gbit/s

User & Safety Instructions

User & Safety Instructions 2621833 D-Link DGS-1100-24V2/E DGS-1100-24V2/E Network RJ45 switch 24 ports 48 Gbit/s

Description

The DGS-1100 (V2) series is a series of extremely affordable smart managed switches designed to meet the needs of small, medium and large enterprises. Advanced management, bandwidth management, PoE option, diagnostic and troubleshooting tools, and energy-efficient technologies provide a flexible solution that meets your network needs.The DGS-1100 (V2) series is equipped with advanced security features such as Static MAC, Storm Control and IGMP Snooping to support companies in protecting their networks. The switches are also suitable for IP surveillance Ideal because they support surveillance VLANs, which give high priority to surveillance traffic, in order to avoid interferences and ensure the quality of the video recording.The D-Link network assistant, which can be downloaded free of charge, makes the initial setup quick and easy by detecting all D-Link smart managed switches within the same layer 2 network. It enables the solution of IP conflicts as well as the batch configuration and updating of several switches. The web-based configuration allows network administrators to manage the switch up to the port level.Physical- Available in various configurations, with or without PoE and fiber support- Fanless design for quiet operationGreen technology- Detection of the connection status- IEEE 802.3az-compliant energy-efficient Ethernet- Time-based PoE (PoE models except DGS1100-08PV2)Advanced functions- IGMP snooping- Bandwidth control- IEEE 802.1Q VLAN TRAFFIC SEPARATION- Port-based VLAN- IEEE 802.1p Quality of Service- Monitoring VLAN- Voice VLANManagement functions- Client-based utility or web-based GUI- Built-in SNMP MIB
