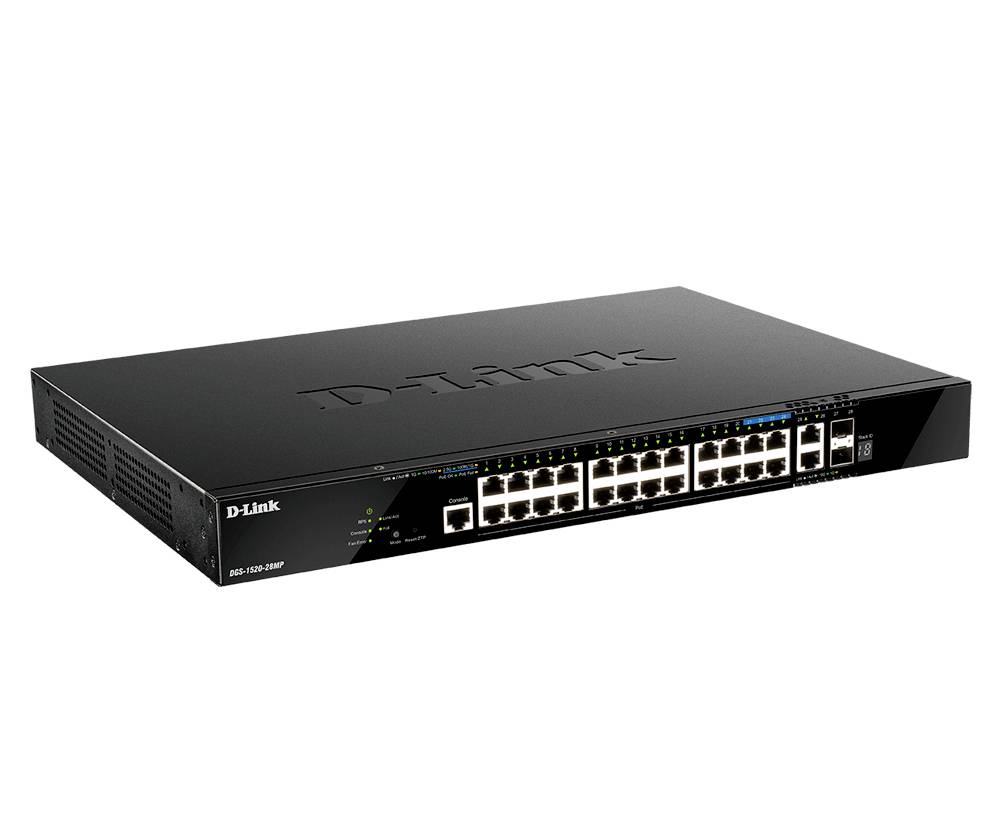

D-Link DGS-1520-28MP/E D-Link DGS-1520-28MP/E 28-Port Smart Man Network switch
EAN:
Part number:
Item no:
Highlights & Details
D-Link DGS-1520-28MP/E network switch managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U black
- Managed L3 Web-based management
- Number of basic switching RJ-45 Ethernet ports: 20
- 10G support
- MAC address table: 16384 entries Routing/switching capacity: 140 Gb/s.
- 1U Rack-mounting Stackable
- Power over Ethernet (PoE)
- This text is machine translated.
Technical specifications
- Optical cable type: SFP+
- Form factor: 1U
- Product type
Network switch
- Weight
4.29 kg
- Type
D-Link DGS-1520-28MP/E 28-Port Smart Man
- Factory colour
Black
- Max. operating noise
57.1 dB
- UKCA
yes
- Power over Ethernet plus (PoE+) ports quantity
20
- Basic switching RJ-45 Ethernet ports quantity
20
- Total Power over Ethernet (PoE) budget
370 W
- Virtual stacking (units)
32
- Physical stacking (units)
8
- Switching capacity
140 Gbit/s
- Heat dissipation
1545.8 BTU/h
- Loop protection
yes
- BPDU filtering/protection
yes
- Jumbo frames
12288
- SFP+ module slots quantity
2
- Flow control support
yes
- Power over Ethernet (PoE)
yes
- Link aggregation
yes
- Stackable
yes
- Jumbo frames support
yes
- GARP VLAN Registration Protocol (GVRP)
yes
- Static route
yes
- Web-based management
yes
- Store-and-forward
yes
- 2.5G Ethernet (copper) ports quantity
4
- 10G Ethernet (copper) ports quantity
2
- Rack mounting
yes
- Mean time between failures (MTBF)
333946 h
- MAC address table
16384 Eintragungen
- Fiber ports quantity
2
- IGMP snooping
yes
- Auto MDI/MDI-X
yes
- Spanning tree protocol
yes
- Head-of-line (HOL) blocking
yes
- VLAN support
yes
- 10G support
yes
- Forwarding rate
104.16 Mpps
- Power consumption (max)
453.3 W
