Buy D-Link DGS-1530-10/E DGS-1530-10/E Network switch 56 GBit/s

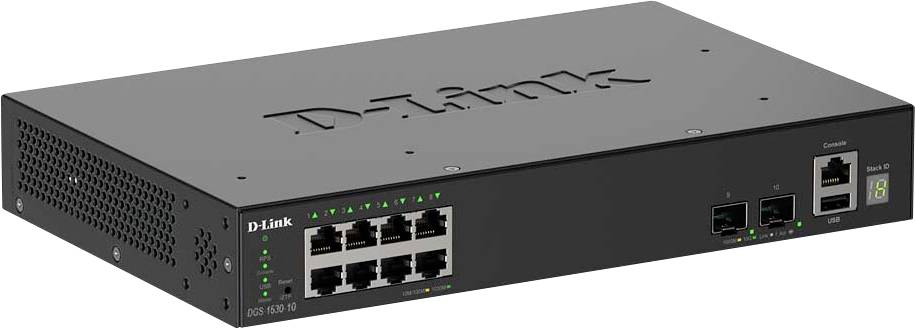

A black D-Link network switch with 10 Ethernet ports and LED indicators on the front, showing power and connectivity status.

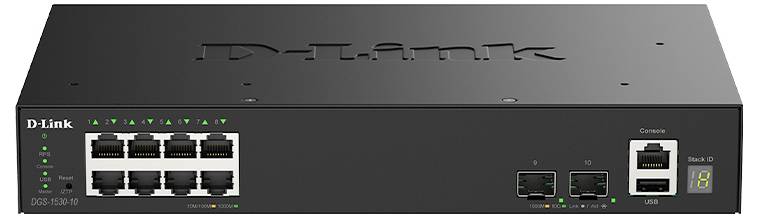

A black D-Link network switch with eight Ethernet ports and two fiberoptic ports on the front panel.

1/2

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

D-Link DGS-1530-10 Managed L2 Gigabit Ethernet (10/100/1000) black

Managed L2 Web-based management
Quality of Service (QoS) Support Site Settings Configuration (CLI)
Number of basic switching RJ-45 Ethernet ports: 8 console port: RJ-45
10G support
MAC address table: 16000 entries Routing/switching capacity: 56 Gb/s.
Access control list
Stackable
AC

Technical specifications

Energy source: AC

Product type: Network switch

LAN transfer rate: 10000 MBit/s

Transfer rate: 56 GBit/s

Working principle: Managed switch

Ethernet ports: 8

SFP+ ports: 2 x

No. of 100 Mbps/1Gbps/10Gbps ports: 2 x

10/100/1000 Mbps ports: 8 x

MAC addresses: 16000

Weight: 1.7 kg

Width: 280 mm

Height: 44 mm

Depth: 180 mm

Type: DGS-1530-10/E

Interfaces: RJ45

Factory colour: Black

Power supply (details): 100 - 240 V

Safety: SNMP
SNMPv2
SNMPv3

UKCA: yes

Operating temperature (T-T): -5 - 50 °C

Basic switching RJ-45 Ethernet ports quantity: 8

Packet buffer memory: 1.5 MB

Password protection: yes

Auto-negotiation: yes

Switching capacity: 56 Gbit/s

Traffic classification: yes

Loop protection: yes

BPDU filtering/protection: yes

ARP inspection: yes

Jumbo frames: 10240

SFP+ module slots quantity: 2

Flow control support: yes

Power over Ethernet (PoE): no

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Stackable: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Access Control List (ACL) ingress: 2000

Access Control List (ACL) egress: 1000

Policy-based routing: yes

Configuring Location Settings (CLI): yes

Web-based management: yes

Store-and-forward: yes

Access Control List (ACL): yes

System event log: yes

Half duplex: yes

Full duplex: yes

MAC address table: 16000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Number of VLANs: 4096

Spanning tree protocol: yes

Operating relative humidity (H-H): 0 - 95 %

VLAN support: yes

10G support: yes

Forwarding rate: 41.67 Mpps

Power consumption (max): 14.6 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3595705 D-Link DGS-1530-10/E DGS-1530-10/E Network switch 56 GBit/s

Description

The DGS-1530-series is the latest generation of Smart managed switches from D-Link with 10 gigabit ports. The DGS-1530-10 has 8 gigabit RJ45 connections as well as additional SFP / SFP+ ports.

This text is machine translated.

Scope of delivery

DGS-1530-10, multi-lingual printed installation instructions, C13 low power cable SCHUKO, rack mounting kit
