Buy D-Link DGS-1530-28P/E DGS-1530-28P/E Network RJ45 switch

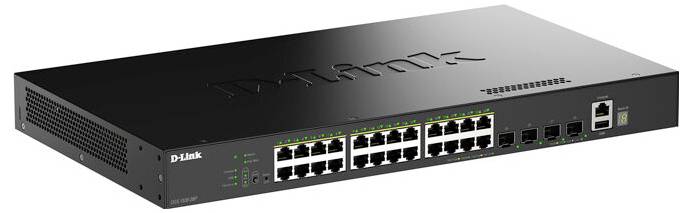

D-Link network switch with 24 Ethernet ports and LED indicator lights, used for connecting multiple devices to a network.

Fast track dispatch on Tue, 22 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 987.39 / piece)

€ 987.39

plus VAT.

Only 1 Piece(s) available

14 days return policy included

Report legal concerns

D-Link DGS-1530-28P/E Network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE), black

Highlights & Details

Managed L2 Web-based management
Quality of Service (QoS) Support Site Settings Configuration (CLI)
Number of basic switching RJ-45 Ethernet ports: 24 console port: RJ-45
10G support
MAC address table: 16000 entries Routing/switching capacity: 128 Gb/s.
Access control list
Rack mounting Stackable
AC power supply includes Power over Ethernet (PoE)

Technical specifications

Number of fans: 3 fans
Energy source: AC

Product type: Network RJ45 switch

Weight: 3.8 kg

Width: 440 mm

Height: 44 mm

Depth: 250 mm

Type: DGS-1530-28P/E

Factory colour: Black

Max. ambient temperature: -5 °C

Min. ambient temperature: 50 °C

No. of USB A 2.0 ports: 1 x

Max. operating noise: 54.7 dB

Power supply (details): 100 - 240 V

Safety: SNMP
SNMPv2
SNMPv3

UKCA: yes

Operating temperature (T-T): -5 - 50 °C

Power over Ethernet plus (PoE+) ports quantity: 24

Basic switching RJ-45 Ethernet ports quantity: 24

Total Power over Ethernet (PoE) budget: 370 W

Packet buffer memory: 1.5 MB

Storage relative humidity (H-H): 0 - 95 %

Password protection: yes

Auto-negotiation: yes

Switching capacity: 128 Gbit/s

Heat dissipation: 1554.96 BTU/h

Traffic classification: yes

Loop protection: yes

ARP inspection: yes

SFP+ module slots quantity: 4

Flow control support: yes

Power over Ethernet (PoE): yes

MAC address filtering: yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Stackable: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Access Control List (ACL) ingress: 2000

Access Control List (ACL) egress: 1000

Policy-based routing: yes

Configuring Location Settings (CLI): yes

Web-based management: yes

Store-and-forward: yes

Access Control List (ACL): yes

USB Type-A ports quantity: 1

Rack mounting: yes

Mean time between failures (MTBF): 330520 h

Full duplex: yes

MAC address table: 16000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Auto MDI/MDI-X: yes

Number of VLANs: 4096

Spanning tree protocol: yes

Operating relative humidity (H-H): 0 - 95 %

VLAN support: yes

10G support: yes

Storage temperature (T-T): -20 - 70 °C

Forwarding rate: 95.24 Mpps

Power consumption (max): 456 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3466348 D-Link DGS-1530-28P/E DGS-1530-28P/E Network RJ45 switch

Description

The D-Link SmartPro DGS-1530-28P is a versatile switch, which has been developed for the requirements of modern network environments. With 80 Gbps switching capacity and 128 Gbps forwarding power, it ensures smooth data transfer and efficient network traffic management. This switch supports IPv4 and IPv6 routing and offers space for up to 4,000 IPv4 routes and 8 IPv6 routes, making it suitable for current and future network requirements.
The DGS-1530-28P is designed for longevity and reliability, works efficiently in environments from -5 °C to 50 °C and offers PoE+ support with a total power consumption of 370 W. It has 24 Gigabit Ethernet ports with additional 10 gigabit SFP+ connectivity, WAS ensures scalability and flexibility in corporate networks. This device can be managed via several remote management protocols such as SNMP, SSH and CLI, and WAS enables an optimized monitoring and configuration of the network settings.

This text is machine translated.
