Buy D-Link DGS-1530-28S/E DGS-1530-28S/E Network SFP+ switch 128 Gbit/s PoE

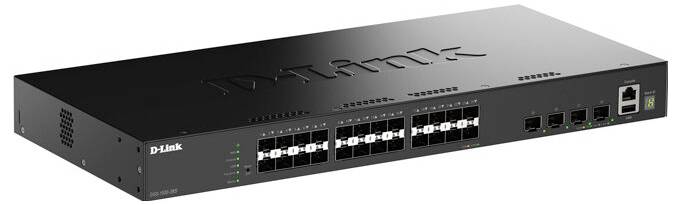

A black D-Link network switch with multiple labeled ports and LED indicators on the front panel.

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 957.14 / piece)

€ 957.14

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

D-Link DGS-1530-28S/E Managed L2 network switch, black

Managed L2 Web-based management
Quality of Service (QoS) Support Site Settings Configuration (CLI)
Console port RJ-45
10G support
MAC address table: 16000 entries Routing/switching capacity: 128 Gb/s.
Access control list
Rack mounting Stackable
AC

Technical specifications

Number of fans: 2 fans
Energy source: AC

Product type: Network SFP+ switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 128 Gbit/s

Working principle: Managed switch

Ethernet ports: 24

SFP+ ports: 4 x

SFP ports: 4 x

10/100/1000 Mbps ports: 24 x

Port type: 24 x 10 Gigabit SFP+ + 4 x 10 Gigabit SFP+

Router features: PoE

Power supply (LOV): mains-powered

MAC addresses: 16000

Weight: 3.1 kg

Width: 440 mm

Height: 44 mm

Depth: 210 mm

Type: DGS-1530-28S/E

Factory colour: Black

Max. ambient temperature: -5 °C

Min. ambient temperature: 50 °C

No. of USB A 2.0 ports: 1 x

Max. operating noise: 52.4 dB

Power supply (details): 100 - 240 V

Safety: SNMP
SNMPv2
SNMPv3

UKCA: yes

Operating temperature (T-T): -5 - 50 °C

Packet buffer memory: 1.5 MB

Storage relative humidity (H-H): 0 - 95 %

Password protection: yes

Auto-negotiation: yes

Switching capacity: 128 Gbit/s

Heat dissipation: 154.13 BTU/h

Traffic classification: yes

Loop protection: yes

ARP inspection: yes

SFP module slots quantity: 24

SFP+ module slots quantity: 4

Flow control support: yes

Power over Ethernet (PoE): no

MAC address filtering: yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Stackable: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Access Control List (ACL) ingress: 2000

Access Control List (ACL) egress: 1000

Policy-based routing: yes

Configuring Location Settings (CLI): yes

Web-based management: yes

Store-and-forward: yes

Access Control List (ACL): yes

USB Type-A ports quantity: 1

Rack mounting: yes

Mean time between failures (MTBF): 446328 h

Full duplex: yes

MAC address table: 16000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Number of VLANs: 4096

Spanning tree protocol: yes

Operating relative humidity (H-H): 0 - 95 %

VLAN support: yes

10G support: yes

Storage temperature (T-T): -20 - 70 °C

Forwarding rate: 95.24 Mpps

Power consumption (max): 45.2 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3466349 D-Link DGS-1530-28S/E DGS-1530-28S/E Network SFP+ switch 128 Gbit/s PoE

Description

The D-Link SmartPro DGS-1530-28S switch offers performance for high network requirements with a switching capacity of 80 Gbit/s and a forwarding power of 128 Gbit/s. It is designed for efficiency and supports up to 4000 IPv4 routes and 8 IPv6 routes as well as functions such as RADIUS support and Link Aggregation. The bandwidth for various applications is ensured with a total of 28 ports, including 4 10 Gigabit SFP+ ports. This switch was developed for use in different environments and works optimally at temperatures from -5 °C to 50 °C. It offers high operational safety with an air humidity tolerance of 0-95 % (non-condensing). Thanks to its compact design, it can be used flexibly, both in desktop and in rack configurations. The D-Link SmartPro DGS-1530-28S is the ideal choice for managing extensive networks with a simultaneous reduced power consumption thanks to D-Link green technology.

This text is machine translated.
