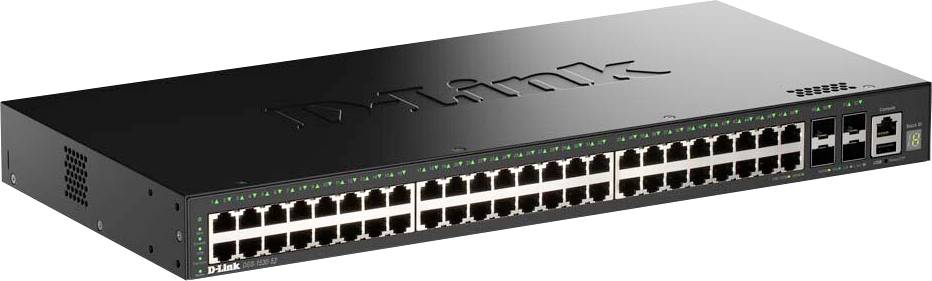

D-Link DGS-1530-52/E DGS-1530-52/E Network SFP+ switch 176 Gbit/s
EAN:
Part number:
Item no:
Total (€ 982.35 / piece)
€ 982.35
plus VAT.
14-day return policy included
Highlights & Details
D-Link DGS-1530-52/E Network switch Managed L2 Gigabit Ethernet (10/100/1000), black
- Managed L2 Web-based management
- Quality of Service (QoS) Support Site Settings Configuration (CLI)
- Number of basic switching RJ-45 Ethernet ports: 48 console port: RJ-45
- 10G support
- MAC address table: 16000 entries Routing/switching capacity: 176 Gb/s.
- Access control list
- Rack mounting Stackable
- AC
Technical specifications
- Number of fans: 2 fans
- Energy source: AC
- Product type
Network SFP+ switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Transfer rate
176 Gbit/s
- Working principle
Managed switch
- Ethernet ports
48
- SFP+ ports
4 x
- SFP ports
4 x
- 10/100/1000 Mbps ports
48 x
- Port type
48 x 10/100/1000 + 4 x 10 Gigabit SFP+
- Power supply (LOV)
mains-powered
- Weight
3.2 kg
- Width
440 mm
- Height
44 mm
- Depth
210 mm
- Type
DGS-1530-52/E
- Factory colour
Black
- Max. ambient temperature
-5 °C
- Min. ambient temperature
50 °C
- No. of USB A 2.0 ports
1 x
- Max. operating noise
54.7 dB
- Power supply (details)
100 - 240 V
- Safety
SNMP
SNMPv2
SNMPv3
- UKCA
yes
- Operating temperature (T-T)
-5 - 50 °C
- Basic switching RJ-45 Ethernet ports quantity
48
- Packet buffer memory
1.5 MB
- Storage relative humidity (H-H)
0 - 95 %
- Password protection
yes
- Auto-negotiation
yes
- Switching capacity
176 Gbit/s
- Heat dissipation
150.38 BTU/h
- Traffic classification
yes
- Loop protection
yes
- ARP inspection
yes
- SFP+ module slots quantity
4
- Flow control support
yes
- Power over Ethernet (PoE)
no
- MAC address filtering
yes
- Quality of Service (QoS) support
yes
- Port mirroring
yes
- Link aggregation
yes
- Stackable
yes
- Jumbo frames support
yes
- Multicast support
yes
- Broadcast storm control
yes
- Access Control List (ACL) ingress
2000
- Access Control List (ACL) egress
1000
- Policy-based routing
yes
- Configuring Location Settings (CLI)
yes
- Web-based management
yes
- Store-and-forward
yes
- Access Control List (ACL)
yes
- USB Type-A ports quantity
1
- Rack mounting
yes
- Mean time between failures (MTBF)
330520 h
- Full duplex
yes
- MAC address table
16000 Eintragungen
- SSH/SSL support
yes
- IGMP snooping
yes
- Auto MDI/MDI-X
yes
- Number of VLANs
4096
- Spanning tree protocol
yes
- Operating relative humidity (H-H)
0 - 95 %
- VLAN support
yes
- 10G support
yes
- Forwarding rate
130.95 Mpps
- Power consumption (max)
44.1 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3466358 D-Link DGS-1530-52/E DGS-1530-52/E Network SFP+ switch 176 Gbit/s
Description
The D-Link SmartPro DGS-1530-52 is designed to meet the requirements of small and large networks with 80 Gb/s switching capacity and 176 Gb/s forwarding power. With 52 ports, including 48 10/100/1000 interfaces and 4 10 Gigabit SFP+ ports, this switch offers scalability and flexibility to meet your network needs. The device operates in a temperature range from -5 °C to 50 °C and ensures a reliable performance in different environments.
The DGS-1530-52 supports IPv4 and IPv6 routing and allows up to 4,000 IPv4 and 8 IPv6 routes. Its robust features such as ARP support, flow control, and RADIUS support improve network management and security. With 32 queues per port and support for different VLAN groups, the switch effectively handles high traffic while ensuring seamless connectivity across your entire network.
This text is machine translated.
The DGS-1530-52 supports IPv4 and IPv6 routing and allows up to 4,000 IPv4 and 8 IPv6 routes. Its robust features such as ARP support, flow control, and RADIUS support improve network management and security. With 32 queues per port and support for different VLAN groups, the switch effectively handles high traffic while ensuring seamless connectivity across your entire network.
This text is machine translated.
Scope of delivery
- DGS-1530-52
- User manual
- C13 low-power cable Schuko
- Rack mounting kit
