Buy D-Link DGS-1530-52P/E DGS-1530-52P/E Network SFP+ switch 176 Gbit/s PoE

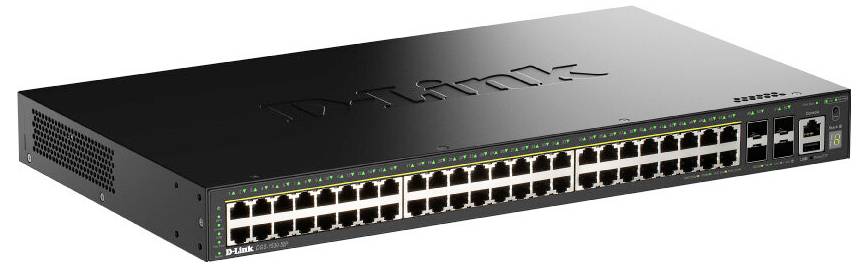

A network switch with 48 Ethernet ports and LED indicators on its front panel, used for connecting multiple devices within a LAN.

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 1,827.73 / piece)

€ 1,827.73

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

D-Link DGS-1530-52P/E Network Switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Managed L2 Web-based management
Quality of Service (QoS) Support Site Settings Configuration (CLI)
Number of basic switching RJ-45 Ethernet ports: 48 console port: RJ-45
10G support
MAC address table: 16000 entries Routing/switching capacity: 176 Gb/s.
Access control list
Rack mounting Stackable
AC power supply includes Power over Ethernet (PoE)

Technical specifications

Number of fans: 3 fans
Energy source: AC

Product type: Network SFP+ switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 176 Gbit/s

Working principle: Managed switch

Ethernet ports: 48

SFP+ ports: 4 x

Port type: 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+

Router features: PoE

Power supply (LOV): mains-powered

MAC addresses: 16000

Weight: 4.35 kg

Width: 440 mm

Height: 44 mm

Depth: 250 mm

Type: DGS-1530-52P/E

Factory colour: Black

Max. ambient temperature: -5 °C

Min. ambient temperature: 50 °C

No. of USB A 2.0 ports: 1 x

Max. operating noise: 52.7 dB

Power supply (details): 100 - 240 V

Safety: SNMP
SNMPv2
SNMPv3

UKCA: yes

Operating temperature (T-T): -5 - 50 °C

Power over Ethernet plus (PoE+) ports quantity: 48

Basic switching RJ-45 Ethernet ports quantity: 48

Total Power over Ethernet (PoE) budget: 370 W

Packet buffer memory: 1.5 MB

Storage relative humidity (H-H): 0 - 95 %

Password protection: yes

Auto-negotiation: yes

Switching capacity: 176 Gbit/s

Heat dissipation: 1643.62 BTU/h

Traffic classification: yes

Loop protection: yes

ARP inspection: yes

SFP+ module slots quantity: 4

Flow control support: yes

Power over Ethernet (PoE): yes

MAC address filtering: yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Stackable: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Access Control List (ACL) ingress: 2000

Access Control List (ACL) egress: 1000

Policy-based routing: yes

Configuring Location Settings (CLI): yes

Web-based management: yes

Store-and-forward: yes

Access Control List (ACL): yes

USB Type-A ports quantity: 1

Rack mounting: yes

Mean time between failures (MTBF): 230300 h

Full duplex: yes

MAC address table: 16000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Auto MDI/MDI-X: yes

Number of VLANs: 4096

Spanning tree protocol: yes

Operating relative humidity (H-H): 0 - 95 %

VLAN support: yes

10G support: yes

Storage temperature (T-T): -20 - 70 °C

Forwarding rate: 130.95 Mpps

Power consumption (max): 482 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3466350 D-Link DGS-1530-52P/E DGS-1530-52P/E Network SFP+ switch 176 Gbit/s PoE

Description

The D-Link SmartPro DGS-1530-52P is an manageable switch designed for efficient processing of up to 4000 IPv4 routes. With support for 8 IPv6 routes and 32 queues per port, this switch ensures powerful computing and optimized connectivity. It is suitable for Ideal for IPv4 and IPv6 environments and has 48 ports with PoE+ functionality, whereby the power supply of the connected devices is improved. With an operating temperature range from -5 °C to 50 °C and an air humidity of 0 to 95%, this switch is designed for demanding conditions. Additional features, including various remote management protocols and compliance with multiple network standards, ensure adaptable performance in different computer environments. The DGS-1530-52P is used in data centers or corporate networks and offers reliable performance and energy-efficient operation in a compact desktop or rack design.
