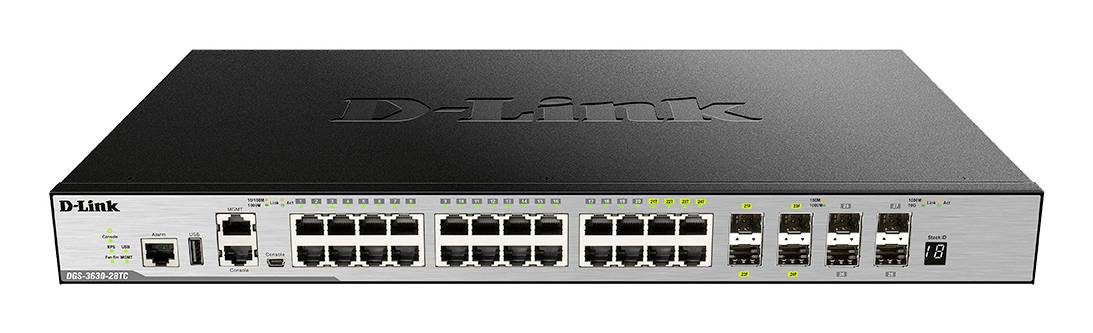

D-Link network switch front panel with multiple Ethernet ports and status lights, shown on a gray 1U rackmount device.

D-Link network switch front panel with multiple Ethernet ports and status lights, shown on a gray 1U rackmount device.

Front panel of a Redundant Power Supply unit with power switch, status indicators, and labeled controls.

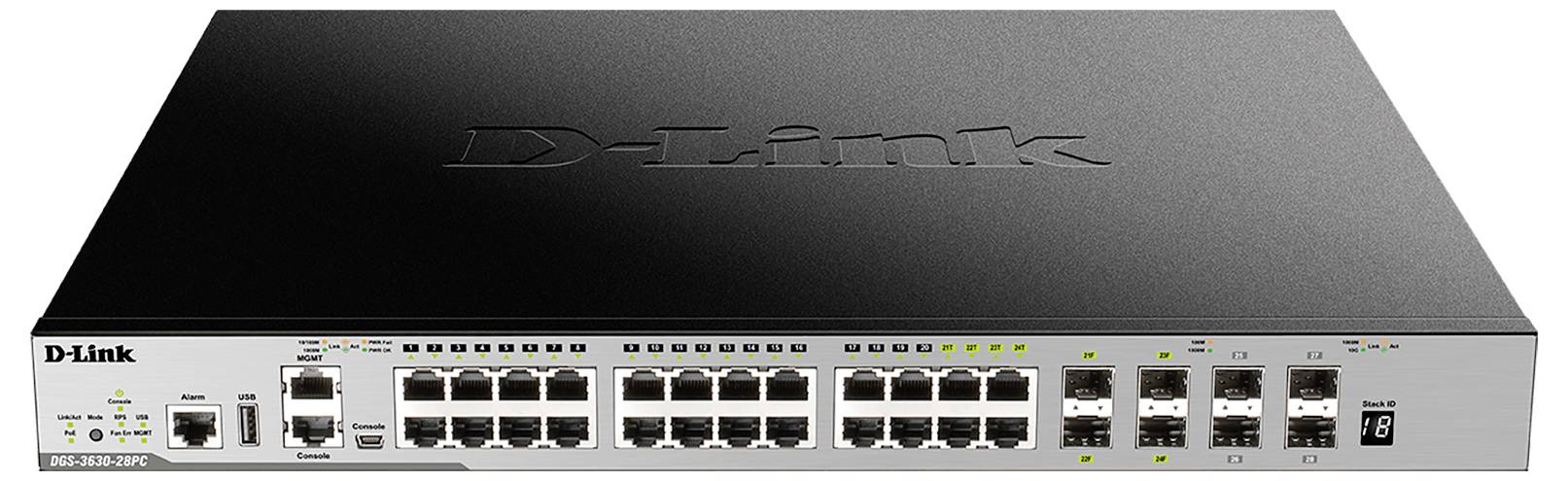

Front view of a D-Link network switch with multiple Ethernet ports, four SFP uplink slots, status LEDs, and a power switch on the right.

1/3

D-Link

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

D-Link DGS-3630-28PC/SI/E Network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) black, gray

Managed L3 Web-based management
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 20 console port: RJ-45/mini USB
10G SUPPORT 10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 68000 entries Routing/switching capacity: 128 Gb/s.
Access control list
Rack mounting Stackable
AC/DC Power over Ethernet (PoE)
This text is machine translated.

Technical specifications

Optical cable type: SFP+
Number of fans: 4 fans
Energy source AC / DC

Product type: Network switch

Ethernet ports: 24

Weight: 5.88 kg

Width: 441 mm

Height: 44 mm

Depth: 380 mm

Type: D-Link DGS-3630-28PC/SI/E 28-Port Layer

Factory colour: Black
Grey

No. of USB A 2.0 ports: 1 x

Power supply (details): 100 - 240 V

Safety: 802.1x RADIUS
SNMP
SNMPv3
SSH
SSL/TLS

UKCA: yes

Operating temperature (T-T): -5 - 50 °C

Power over Ethernet plus (PoE+) ports quantity: 24

Combo SFP ports quantity: 4

Basic switching RJ-45 Ethernet ports quantity: 20

Total Power over Ethernet (PoE) budget: 370 W

Packet buffer memory: 4 MB

Number of static routes: 512

Virtual stacking (units): 32

Physical stacking (units): 9

Storage relative humidity (H-H): 5 - 95 %

Auto-negotiation: yes

Switching capacity: 128 Gbit/s

Loop protection: yes

BPDU filtering/protection: yes

IP-MAC-Port binding: yes

Jumbo frames: 12000

Power over Ethernet (PoE) power per port: 30 W

Pallet gross width: 120 cm

Pallet gross length: 110 cm

Shipping (inner) case width: 36.2 cm

Shipping (inner) case length: 57.9 cm

Shipping (inner) case height: 57.2 cm

Shipping (inner) case gross weight: 18 kg

Products per shipping (inner) case: 2 Stück(e)

Shipping (inner) case net weight: 12.9 kg

SFP+ module slots quantity: 4

Flow control support: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Stackable: yes

Jumbo frames support: yes

Redundant power supply (RPS) support: yes

Multicast support: yes

Static route: yes

Web-based management: yes

Store-and-forward: yes

Access Control List (ACL): yes

IP routing: yes

Pallet gross weight (air): 342.4 kg

Master (outer) cases per pallet (air): 18 Stück(e)

Products per pallet (air): 36 Stück(e)

Pallet height (air): 185.1 cm

Pallet gross weight (sea): 342.4 kg

Master (outer) cases per pallet (sea): 18 Stück(e)

Products per pallet (sea): 36 Stück(e)

Pallet height (sea): 185.1 cm

Rack mounting: yes

Full duplex: yes

MAC address table: 68000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Number of VLANs: 4000

Head-of-line (HOL) blocking: yes

Operating relative humidity (H-H): 10 - 95 %

VLAN support: yes

Routing entries: 16000

10G support: yes

Storage temperature (T-T): -40 - 70 °C

Forwarding rate: 95.24 Mpps

Built-in processor: yes
