Buy D-Link DIS-100G-5W DIS-100G-5W Network RJ45 switch 5 ports 10 / 100 / 1000 MBit/s

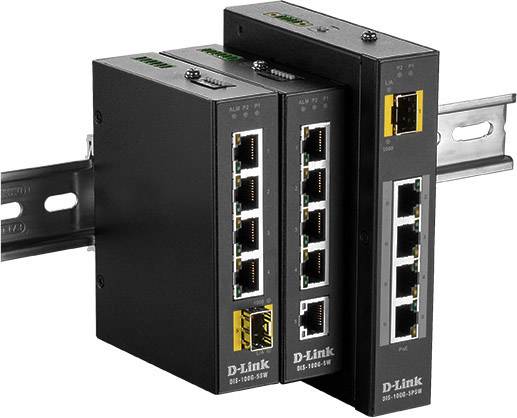

Two industrial Ethernet switches by D-Link mounted on a DIN rail, showing network connections and LEDs for status indication.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 180.66 / piece)

€ 180.66

plus VAT.

Report legal concerns

D-Link DIR-100 G-5W Unmanaged L2 Gigabit Ethernet (10/100/1000)

Highlights & Details

5 x 100/1000 Base-T-Ports
Unmanaged, uncomplicated, Plug-and-play
Holding extreme temperatures
Certified vibration, shock, camber strength, NEMA TS 2 Section 2, and EMC

Technical specifications

Product type: Network RJ45 switch

LAN transfer rate: 10000 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 5

10/100/1000 Mbps ports: 5 x

Auto-uplink at each port: Yes

Jumbo frames: Yes

MAC addresses: 2000

Weight: 295 g

Width: 112.2 mm

Height: 29.1 mm

Depth: 89.4 mm

Type: DIS-100G-5W

Interfaces: RJ45

Factory colour: Black

Max. ambient temperature: 75 °C

Min. ambient temperature: -40 °C

Port: 5 ports

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1970496 D-Link DIS-100G-5W DIS-100G-5W Network RJ45 switch 5 ports 10 / 100 / 1000 MBit/s

User & Safety Instructions

User & Safety Instructions 1970496 D-Link DIS-100G-5W DIS-100G-5W Network RJ45 switch 5 ports 10 / 100 / 1000 MBit/s

Security datasheet

Security datasheet 1970496 D-Link DIS-100G-5W DIS-100G-5W Network RJ45 switch 5 ports 10 / 100 / 1000 MBit/s

Description

The Industrial Gigabit Unmanaged Switches the DIS-100G series have been specially developed to a large temperature range, vibrations and impacts. These robust yet easy to execute switches offer vis-à-vis switches for commercial use superior protection against environmental influences. Due to the durable design together with high availability network functions form the switches an essential part of any network infrastructure for the growing networking needs of Smart Citys, city-wide surveillance systems and wireless connections. DIS-100G Unmanaged Switches have 5 Gigabit Ethernet ports and support as a true plug-and-play solution industry standard applications even without complicated set-up.

This text is machine translated.
