1/2
D-Link DLink Deutschland LTE gateway
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

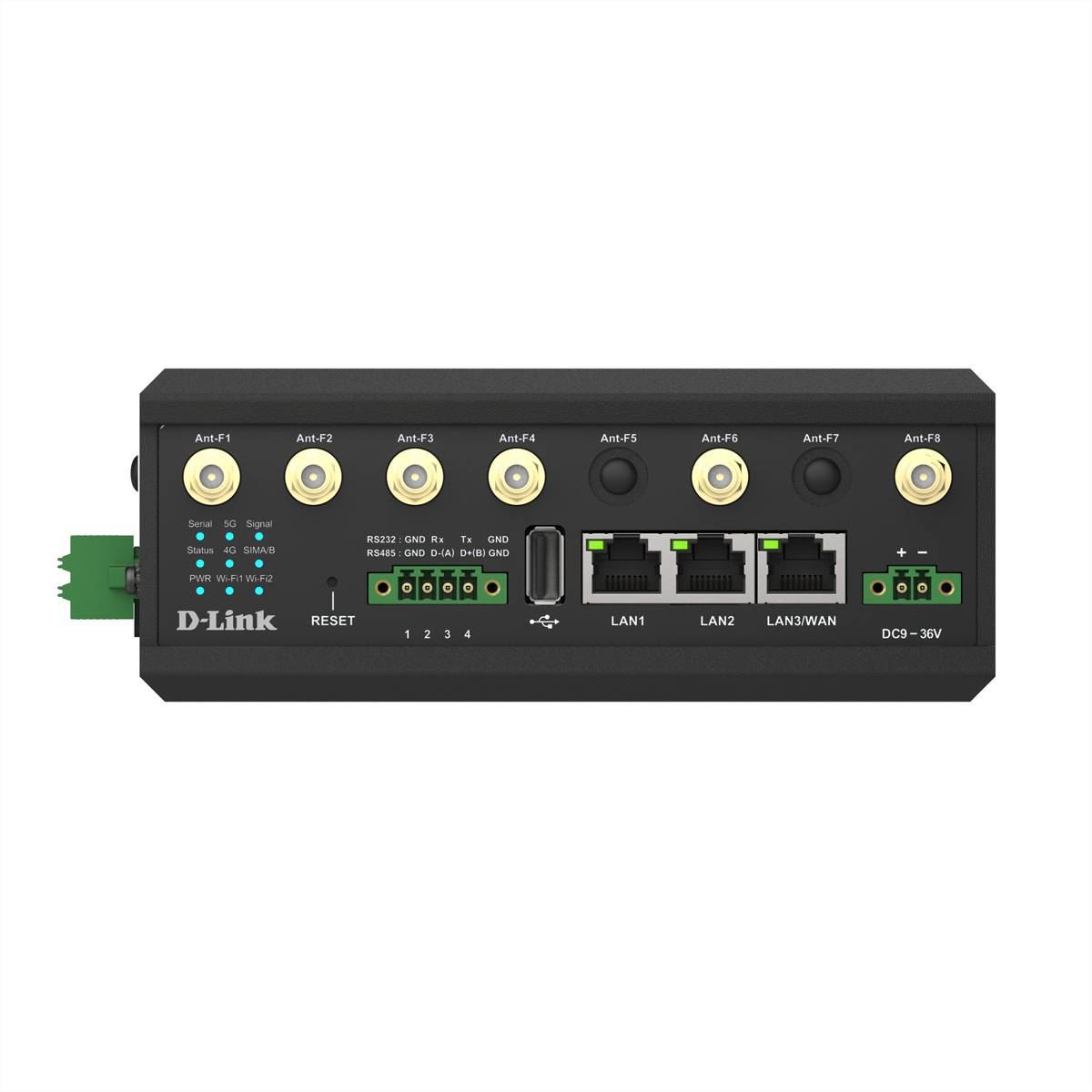

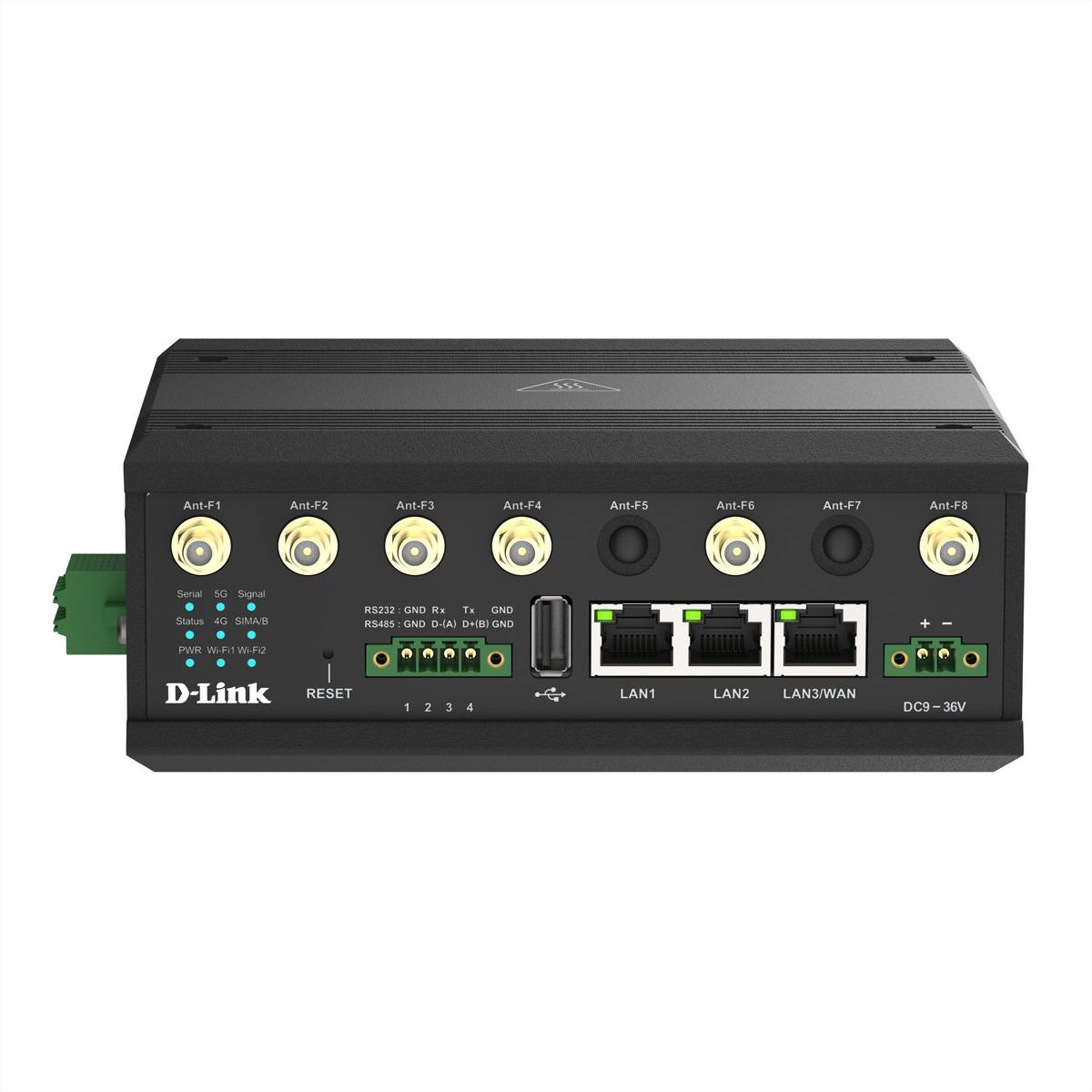

D-Link DOM-550-GSO mobile network device gateway for mobile network
- Gateway for wireless network
- Ethernet / LAN, WLAN
- 4G standards: LTE
- Antenna type: External SMA
- Black
Technical specifications
- WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
- Product type
LTE gateway
- Type
DLink Deutschland
- No. of antennas
6 x
- 10/100/1000 Mbps ports
3 x
- Width
125 mm
- Height
62 mm
- Depth
160 mm
- Weight
2.013
- Factory colour
Black
- Cable length
0 cm
- No. of USB A 2.0 ports
1 x
- Keyboard layout
German, QWERTZ
- Input voltage
9 -36 V
- Safety
SNMP
SNMPv2
SNMPv3
- Wi-Fi
Yes
- UKCA
yes
- Operating temperature (T-T)
-30 - 70 °C
- Serial ports quantity
1
- Ethernet LAN
yes
- Firewall
yes
- USB port
yes
- Card reader integrated
yes
- DHCP server
yes
- IP routing
yes
- Reset button
yes
- DMZ support
yes
- Port forwarding
yes
- Operating relative humidity (H-H)
10 - 95 %
- Network address translation (NAT)
yes
- Storage temperature (T-T)
-40 - 85 °C
- Number of SIM cards
2
Documents & Downloads
Datasheet
Datasheet 3798656 D-Link DLink Deutschland LTE gateway
User & Safety Instructions
User & Safety Instructions 3798656 D-Link DLink Deutschland LTE gateway
Description
The DOM-550-GSO 5G IIoT Gateway provides Dual mode connectivity for 5G NR and 4G LTE with download speeds of up to 3.4 Gbps It has three Gigabit Ethernet ports – one of which can be configured as an Ethernet WAN – for seamless switching between broadband and mobile networks. 1x Gigabit Ethernet WAN/LAN port. 2x Gigabit Ethernet LAN port. Two 3FF micro SIM slots. 5G NSA: 3.4 Gbit/s (DL) / 550 Mbit/s (UL). 5G SA: 2.4 Gbit/s (DL) / 900 Mbit/s (UL). LTE 1.6 Gbit/s (DL)/200 Mbit/s (UL). Mobile/Ethernet WAN failover. 2x (RS-232 or RS-485) (connection block) 2x DI, 2x DO, Modbus. 2x AI GPS/GLONASS 1x USB port. 1x microSD card slot. 802.11a/b/g/n/ac Wi-Fi 5, up to 300 Mbit/s in the 2.4 GHz band and 866 Mbit/s in the 5 GHz band. WPA/WPA2, WPA2, WPA2-PSK(AES), WPA-PSK/WPA2-PSK(AES, TKIP/AES), 802.1x IPv4/v6, static route, RIPv4/RIPv2, OSPF, BGP, QoS. IPS, MAC control IPsec, PPTP, L2TP, OpenVPN, WireGuard, GRE, VPN pass-through SMS service Management via Web UI, SSH and D-ECS. Large temperature range (-30 to +70 °C) Power supply: 2-pin TB for DC 9 V–36 V.
This text is machine translated.
Scope of delivery
- D-Link DOM-550-GSO 5G-IIoT gateway
