D-Link DLink Deutschland Power supply unit 770 W
EAN:
Part number:
Item no:
Highlights & Details

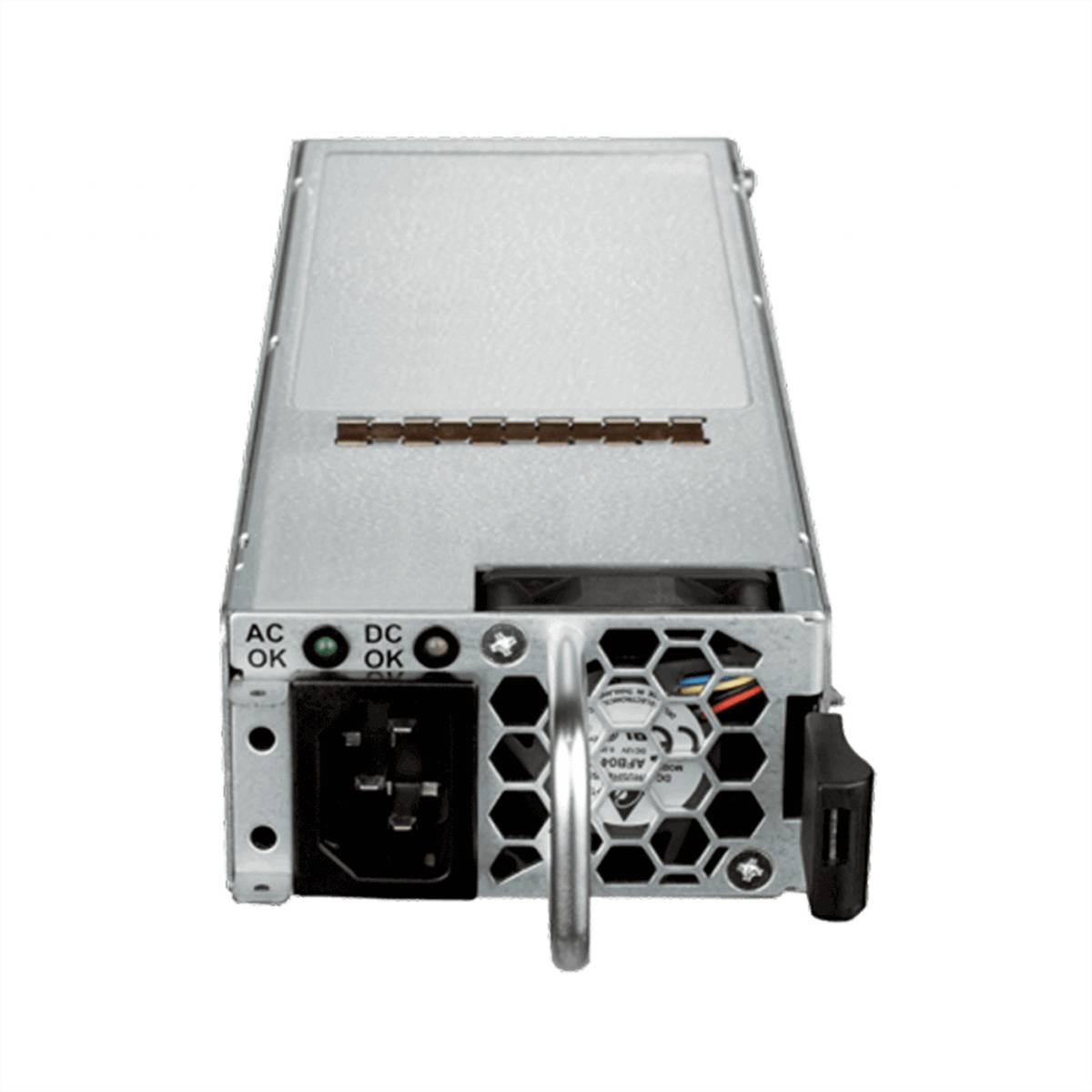

D-Link DXS-PWR700AC power supply switch
- PSU output 770 W
- PCI Express (6+2-pin) x
- Cable management Yes
Technical specifications
- Product type: Power supply
- Power rating
751 W -
- PSU output power
770 W
- Product type
Power supply unit
- Modular
Yes
- Dim
(W x H x D) 54.5 x 40.2 x 322 mm
- Weight
1 kg
- Width
54.5 mm
- Height
40.2 mm
- Depth
322 mm
- Factory colour
Multicolour
- Load (max.)
10 A
- Power supply (details)
100 - 240 V
- UKCA
yes
- Operating temperature (T-T)
0 - 45 °C
- Storage relative humidity (H-H)
0 - 95 %
- Operating relative humidity (H-H)
0 - 95 %
- Storage temperature (T-T)
-40 - 70 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3798285 D-Link DLink Deutschland Power supply unit 770 W
Description
Redundant 770W AC power supply for DXS-3610 series 770 W AC modular Power supply with front-to-back air flow, Redundant 770W AC power supply for DXS-3610 series, hot swappable, load sharing, 1+1 redundancy, front-to-back air flow
This text is machine translated.
Scope of delivery
- D-Link DXS-PWR700AC 770W power supply
