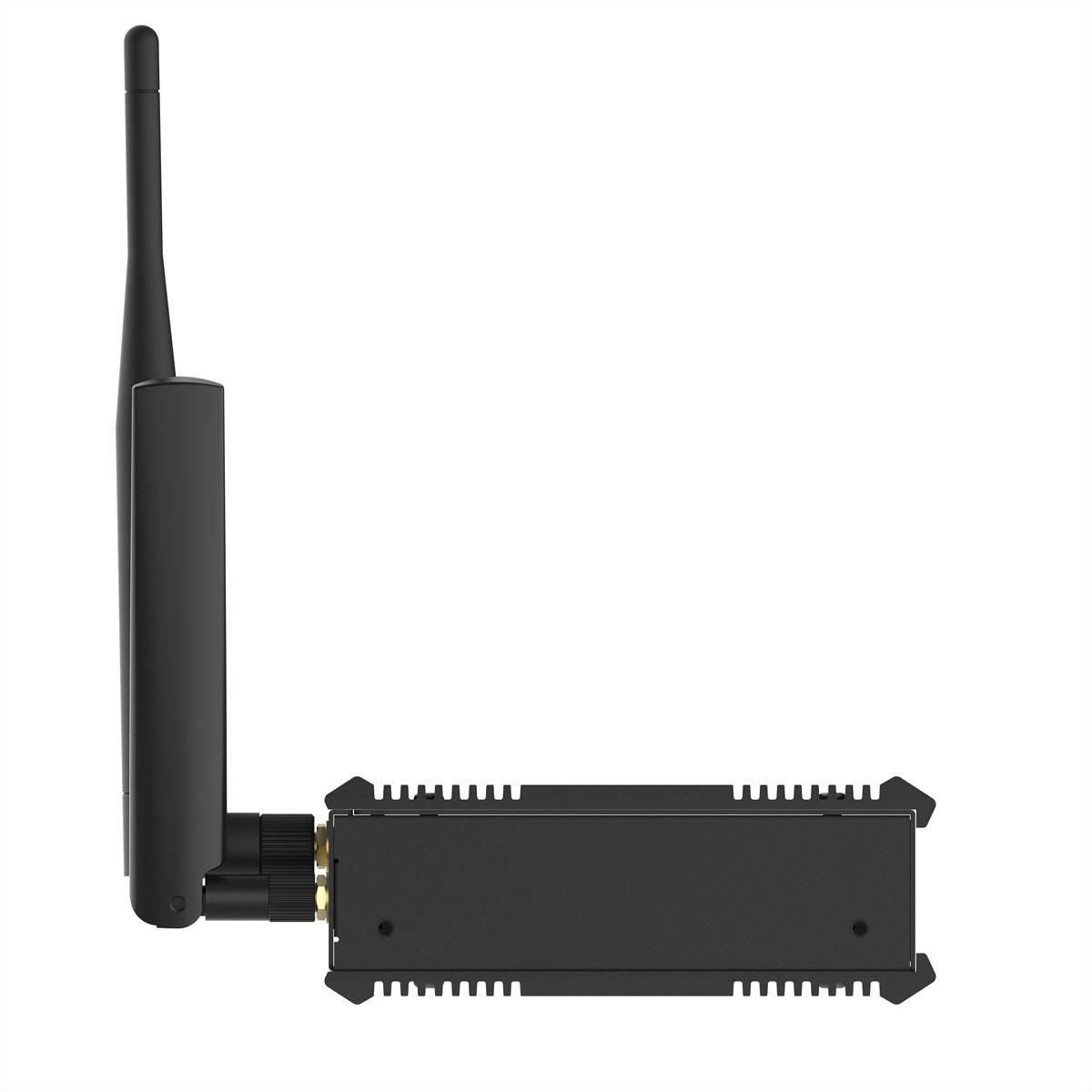

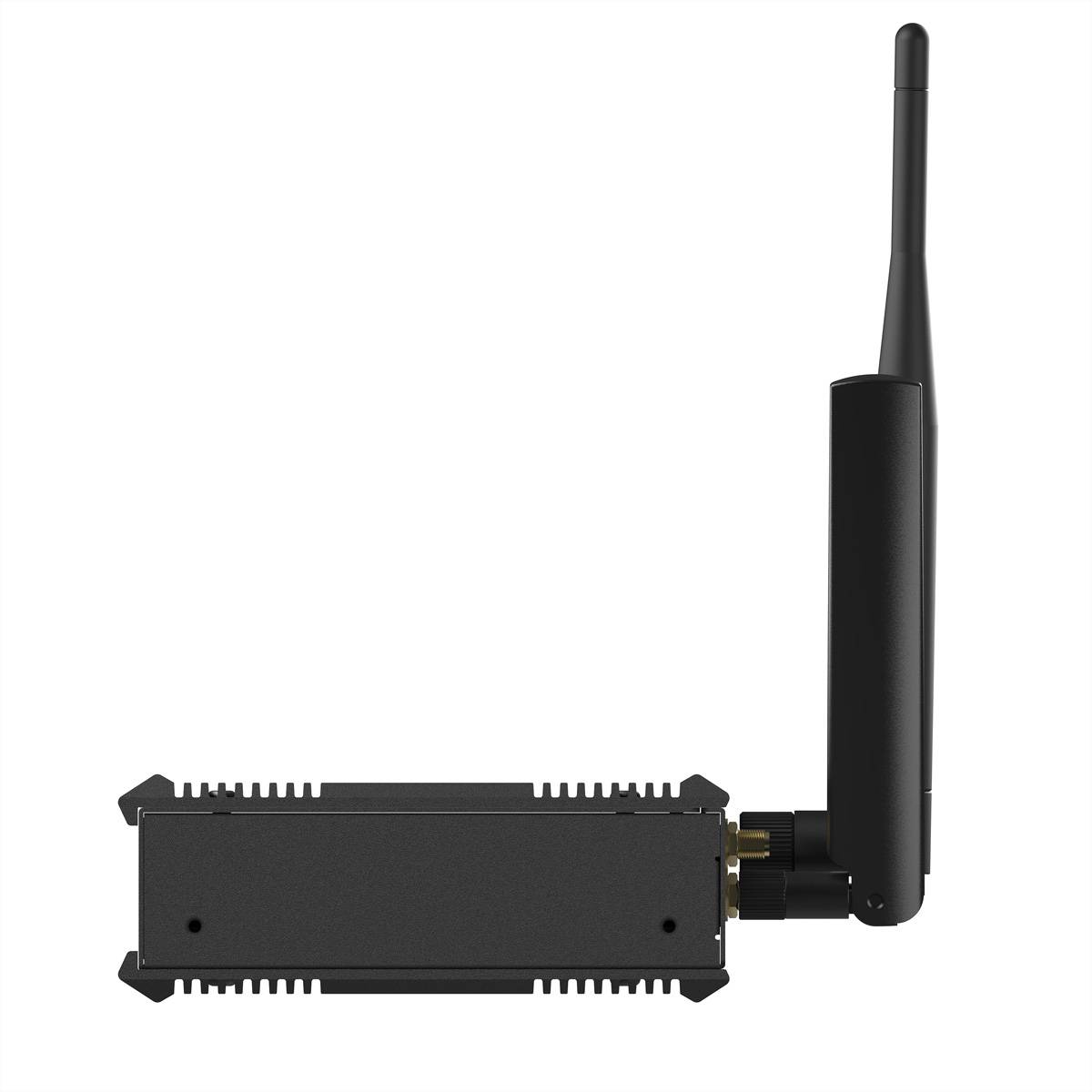

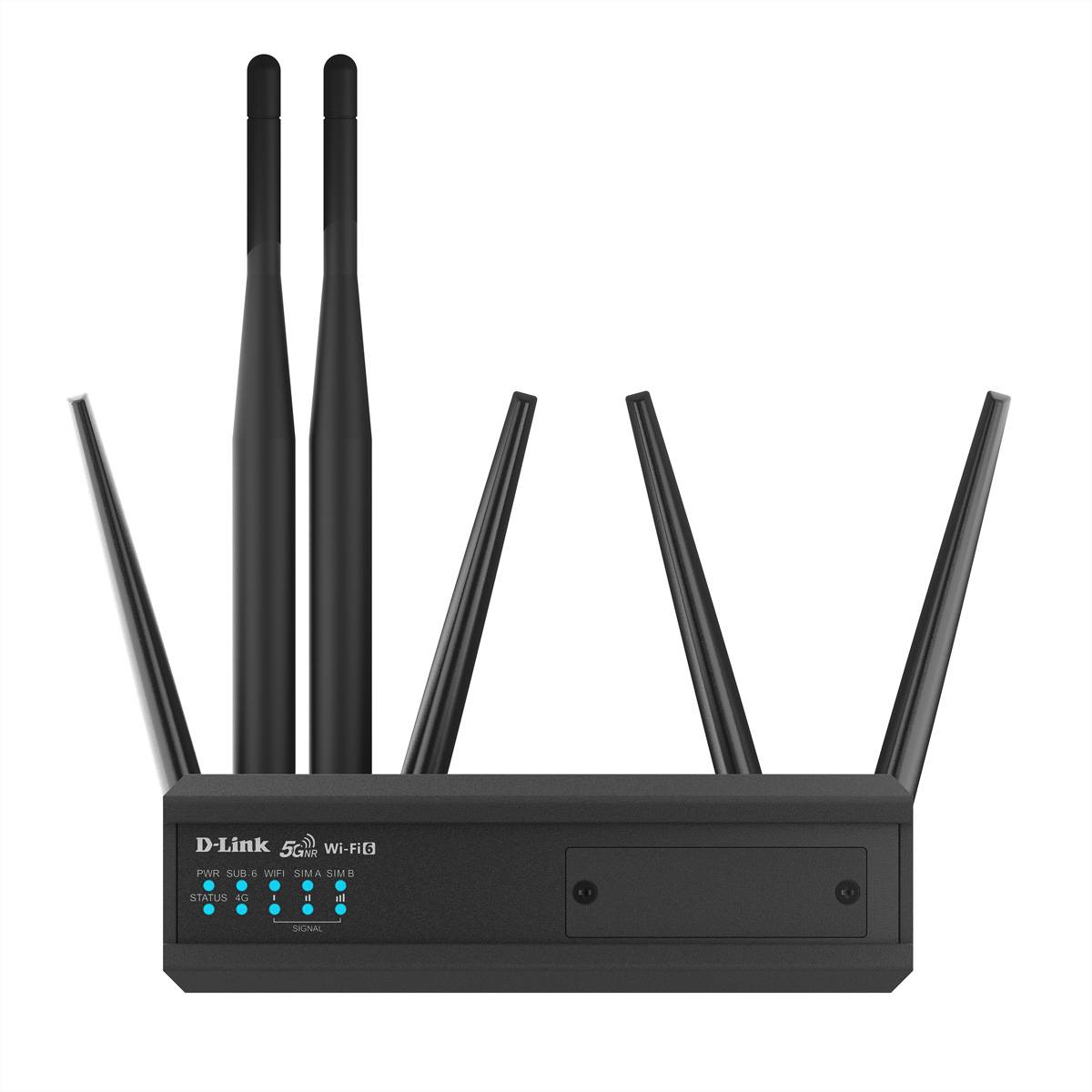

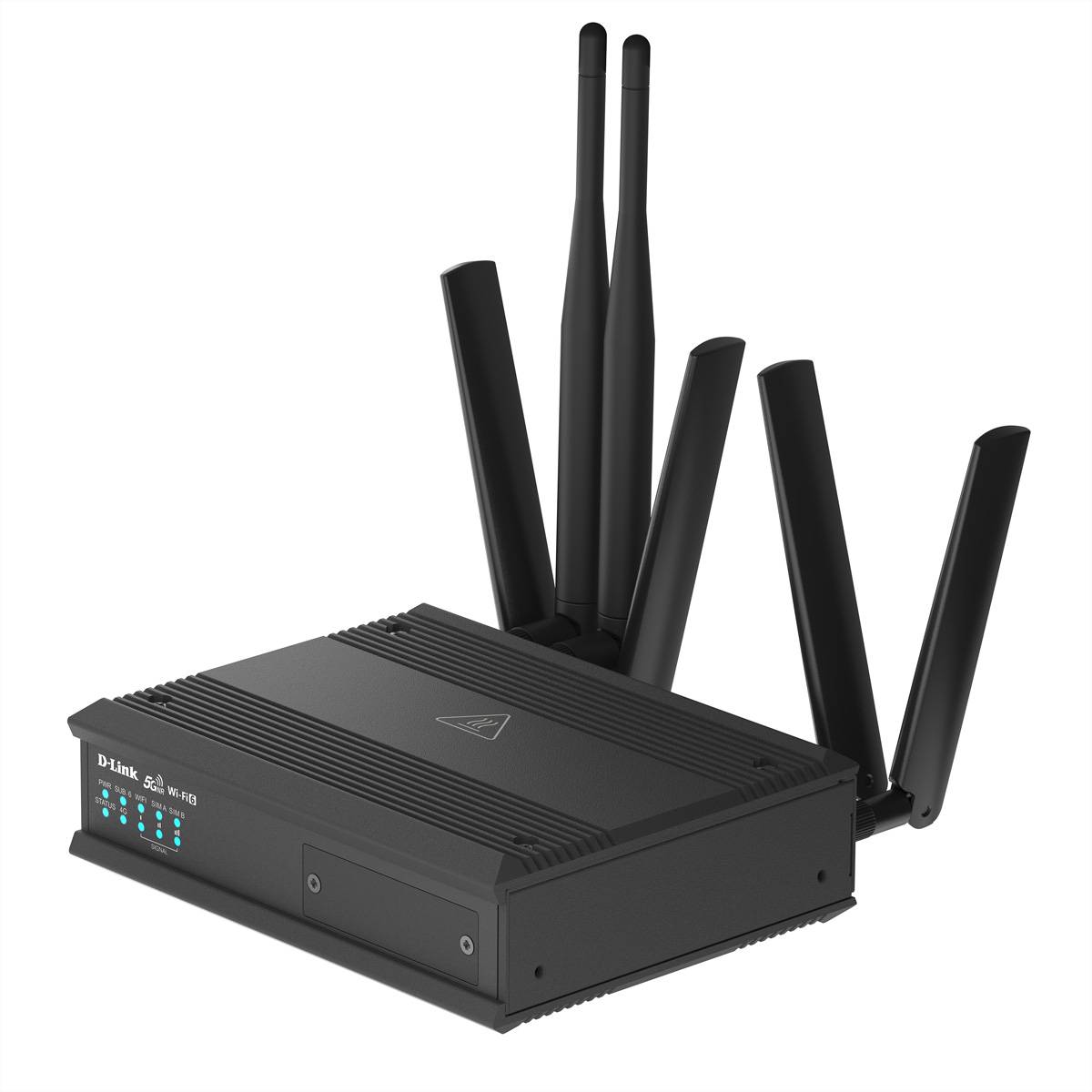

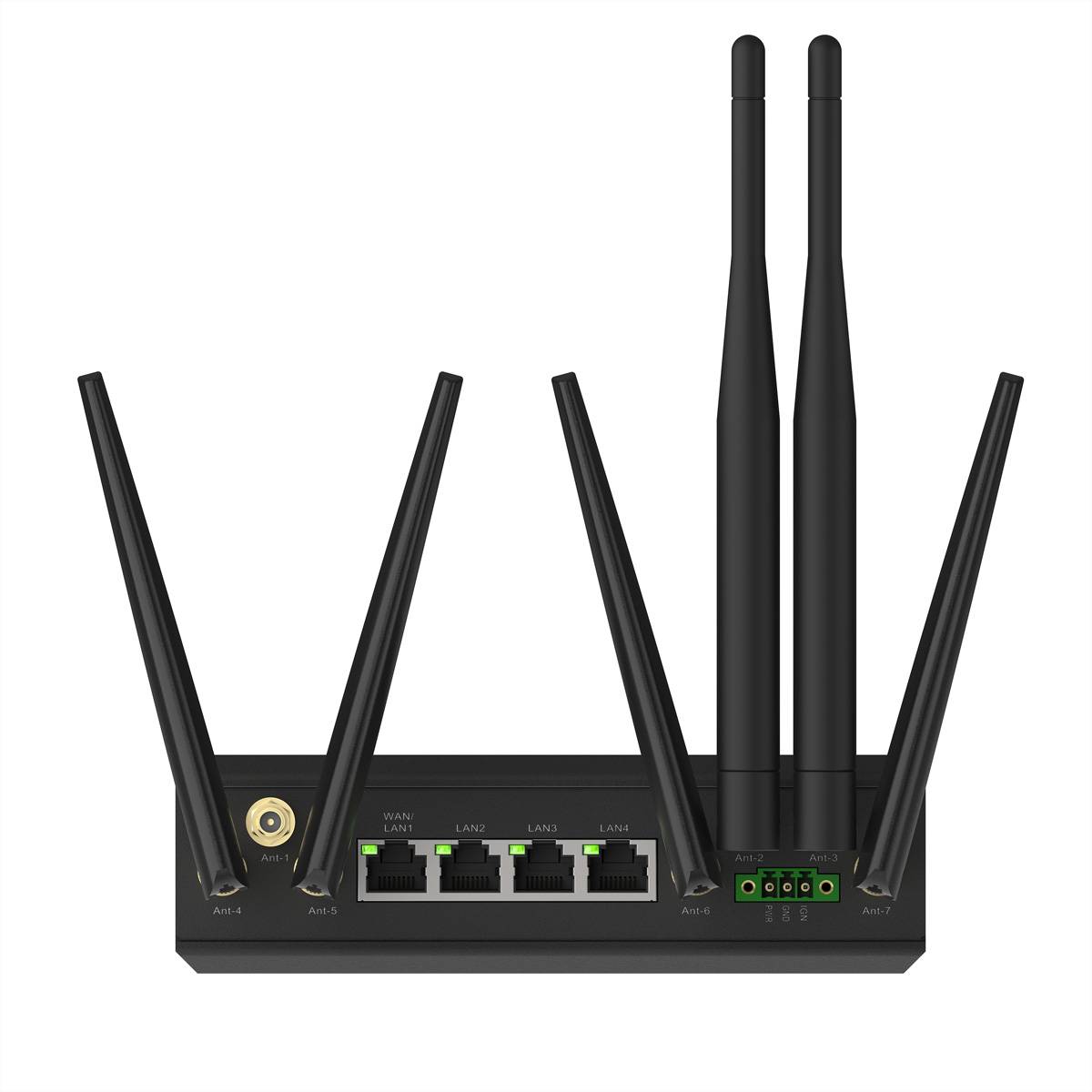

D-Link DTM-550-G mobile network device gateway for mobile wireless network
Highlights & Details
- Gateway for wireless network
- Ethernet / LAN, WLAN
- 4G standards: LTE
- Antenna type: External SMA
- Black
Technical specifications
- WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
- Product type
Router
- Type
DLink Deutschland
- No. of antennas
7 x
- 10/100/1000 Mbps ports
4 x
- Width
160 mm
- Height
47 mm
- Depth
120 mm
- Weight
1.629
- Factory colour
Black
- Cable length
0 cm
- Keyboard layout
German, QWERTZ
- Input voltage
12 - 36 V
- Safety
AES
WPA
WPA-PSK
WPA2
WPA2-PSK
WPA2-Enterprise
WPA2-SAE
- Wi-Fi
Yes
- UKCA
yes
- Operating temperature (T-T)
-30 - 70 °C
- Ethernet LAN
yes
- Firewall
yes
- DHCP server
yes
- Reset button
yes
- DMZ support
yes
- Port forwarding
yes
- Operating relative humidity (H-H)
10 - 95 %
- Network address translation (NAT)
yes
- Storage temperature (T-T)
-40 - 85 °C
- Number of SIM cards
2
Documents & Downloads
Datasheet
Datasheet 3798657 D-Link DLink Deutschland Router
User & Safety Instructions
User & Safety Instructions 3798657 D-Link DLink Deutschland Router
Description
The D-Link DTM-550-G 5G Transit Gateway offers seamless 5G NR and LTE connectivity for wireless uplink and downlink connectivity. It features a 5G/4G mobile module with two SIM slots, four Gigabit Ethernet ports and Wi-Fi 6 AX1800 technology for high-capacity connections. The D-Link DTM-550-G is a powerful 5G router designed for vehicles such as campers and caravans and provides a fast and reliable connection while traveling. Thanks to the included antennas it is immediately ready to use and is supplied with mounting brackets, which enable a quick and secure installation. The D-Link DTM-550-G has a 12 V DC input for seamless integration in your vehicle, ignition detection for automatic on and off switching as well as two SIM card slots for an uninterrupted connection. With Wi-Fi 6 and four Gigabit Ethernet connections it offers a fast and stable Internet connection for all devices – anytime and anywhere.
This text is machine translated.
Scope of delivery
- DTM-550-G, 4x mobile phone SMA antennas, 2x WLAN RP-SMA antennas, 1x RJ-45 cable, 1x connection block (3-pin), 2x wall brackets
