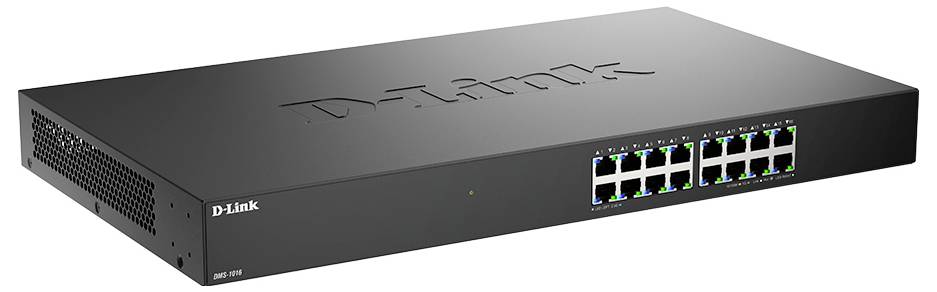

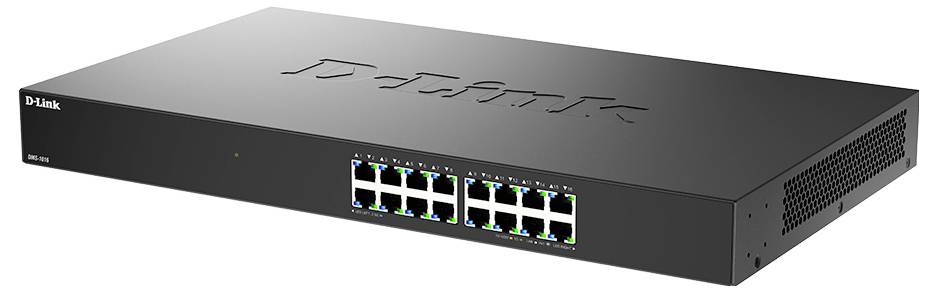

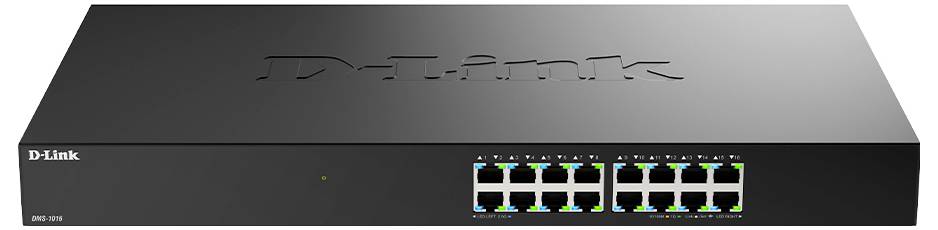

D-Link DMS-1016/E DMS-1016/E Network switch
EAN:
Part number:
Item no:
Highlights & Details
D-Link DMS-1016 unmanaged L2+ 2.5G Ethernet (100/1000/2500) black
- Unmanaged L2+
- Quality of Service (QoS) support
- Number of basic switching RJ-45 Ethernet ports: 16
- MAC address table: 16000 entries Routing/switching capacity: 80 Gb/s.
- Stackable
- DC power supply included
Technical specifications
- Power source: Direct current
- Product type
Network switch
- LAN transfer rate
2500 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
16
- 10/100 Mbps ports
16 x
- 10/100/1000 Mbps ports
16 x
- Auto-uplink at each port
Yes
- Jumbo frames
Yes
- MAC addresses
16000
- Weight
2.93 kg
- Width
440 mm
- Height
44 mm
- Depth
250 mm
- Type
DMS-1016/E
- Interfaces
RJ45
- Factory colour
Black
- Operating voltage
12 V DC
- UKCA
yes
- Operating temperature (T-T)
-5 - 50 °C
- Basic switching RJ-45 Ethernet ports quantity
16
- Storage relative humidity (H-H)
0 - 95 %
- Switching capacity
80 Gbit/s
- Heat dissipation
62.29 BTU/h
- Traffic classification
yes
- Jumbo frames
12288
- Power over Ethernet (PoE)
no
- Quality of Service (QoS) support
yes
- Stackable
yes
- Jumbo frames support
yes
- Store-and-forward
yes
- Quick start guide
yes
- Mean time between failures (MTBF)
800034.25 h
- MAC address table
16000 Eintragungen
- Auto MDI/MDI-X
yes
- Operating relative humidity (H-H)
10 - 90 %
- 10G support
no
- Storage temperature (T-T)
-20 - 70 °C
- Forwarding rate
59.52 Mpps
- Power consumption (max)
19.135 W
- Power supply included
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3595707 D-Link DMS-1016/E DMS-1016/E Network switch
Description
The D-Link DMS-1016 16-port multi-gigabit unmanaged switch is the ideal network solution for small offices and demanding home networks. With sixteen 2.5G Ethernet ports and lower speed support, it offers maximum flexibility and speed. Plug & Play, automatic cable detection, energy-efficient operation and priority data transfer make it the perfect solution for reliable, fast networking.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 16-port multi-gigabit unmanaged switch (DMS-1016), power cable, rack-mount kit, quick start guide
