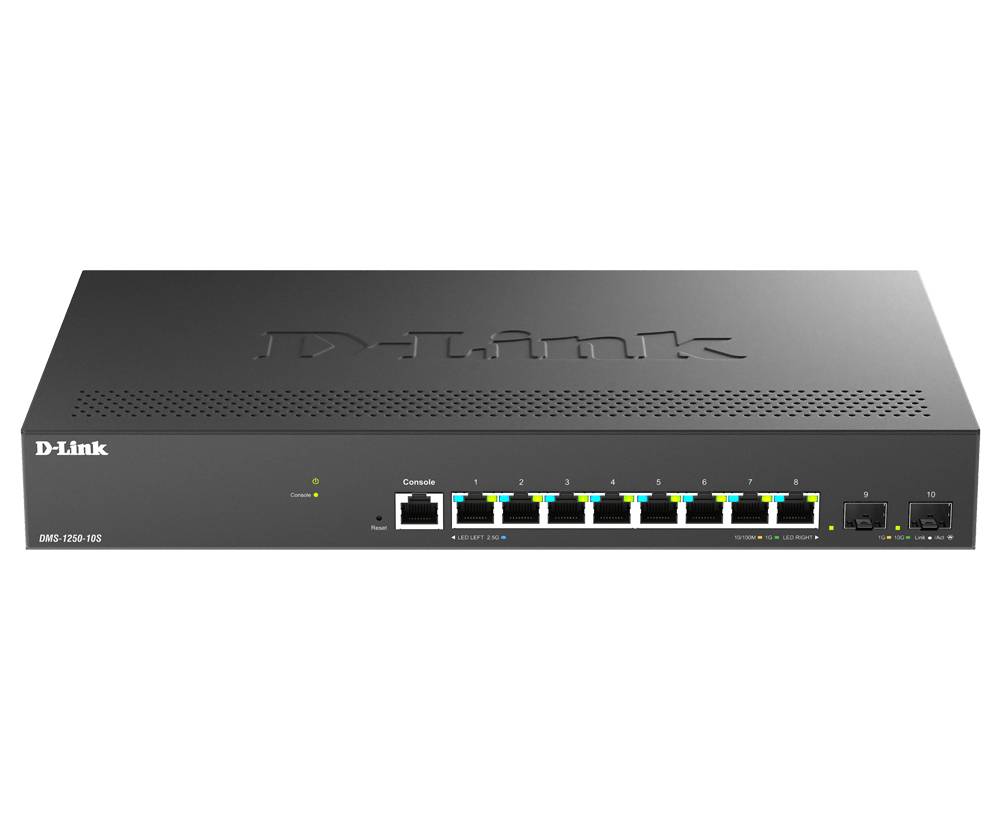

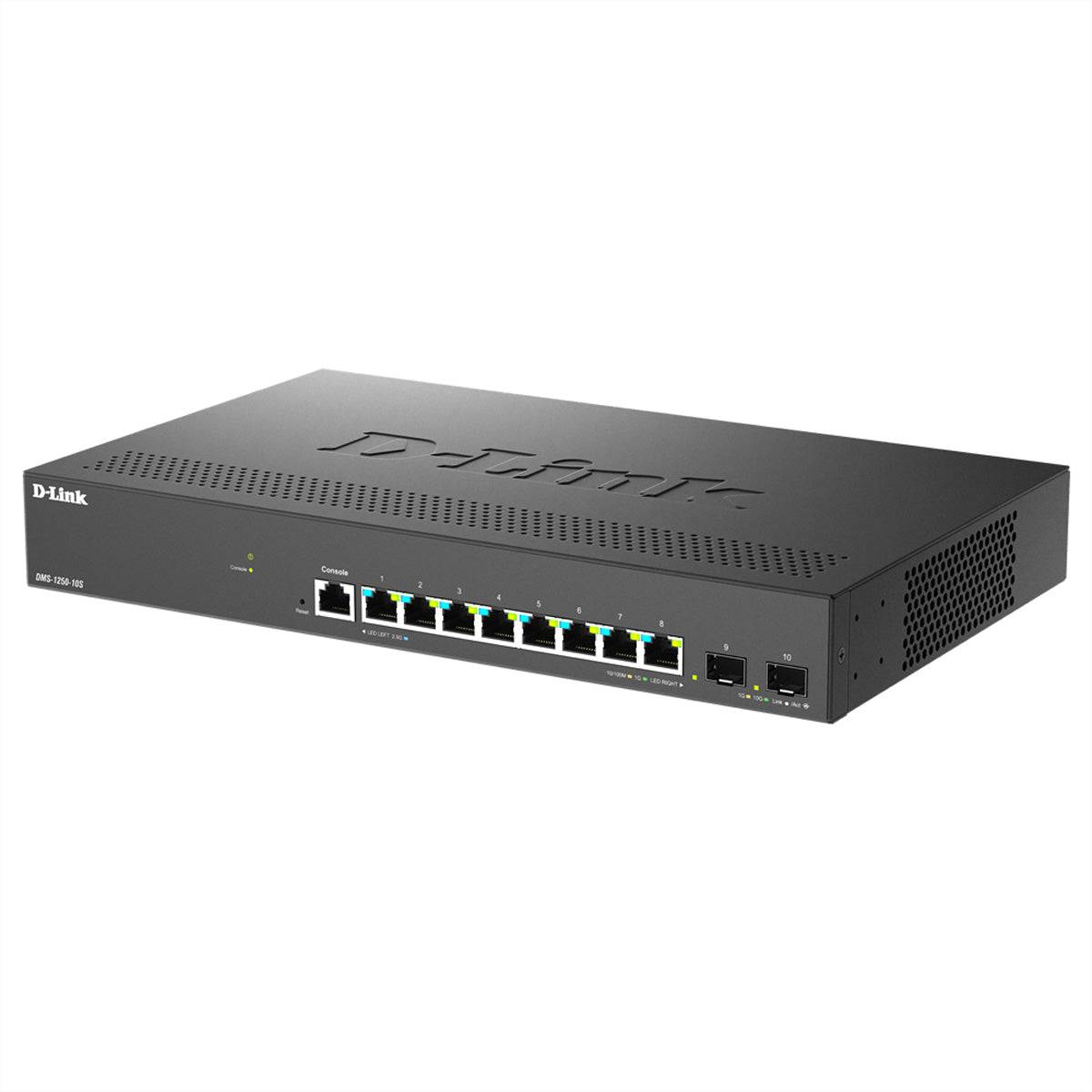

D-Link DMS-1250-10S - Switch – L2+ – Smart
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
D-Link DMS-1250-10S/E Network Switch Managed 2.5G Ethernet (100/1000/2500), black
- Managed Web-based management
- Quality of Service (QoS) support
- Number of basic switching RJ-45 Ethernet ports: 8
- 10G support
- MAC address table: 16000 entries Routing/switching capacity: 80 Gb/s.
- Access control list
- Rack installation
- AC power supply included
Technical specifications
- Memory type: DRAM
- Energy source: AC
- Product type
Network switch
- Ethernet ports
10
- SFP ports
2 x
- Weight
1.88 kg
- Width
330 mm
- Height
44 mm
- Depth
200 mm
- Type
DLink Deutschland
- Factory colour
Black
- Power supply (details)
100 - 240 V
512 MB
- UKCA
yes
- Fanless
yes
- Operating temperature (T-T)
-5 - 50 °C
- Combo SFP ports quantity
2
- Basic switching RJ-45 Ethernet ports quantity
8
- Number of static routes
128
- Storage relative humidity (H-H)
0 - 95 %
- Password protection
yes
- Switching capacity
80 Gbit/s
- Loop protection
yes
- ARP inspection
yes
- Jumbo frames
12000
- Flow control support
yes
- Power over Ethernet (PoE)
no
- Quality of Service (QoS) support
yes
- Port mirroring
yes
- Jumbo frames support
yes
- Broadcast storm control
yes
- Static route
yes
- IGMP entries
256
- Access Control List (ACL) IPv4 entries
768
- Access Control List (ACL) IPv6 entries
384
- Web-based management
yes
- Store-and-forward
yes
- Access Control List (ACL)
yes
- Reset button
yes
- Quick start guide
yes
- 2.5G Ethernet (copper) ports quantity
8
- Rack mounting
yes
- Flash memory
32 MB
- MAC address table
16000 Eintragungen
- IGMP snooping
yes
- Number of VLANs
4094
- Spanning tree protocol
yes
- Operating relative humidity (H-H)
0 - 95 %
- VLAN support
yes
- 10G support
yes
- Storage temperature (T-T)
-20 - 70 °C
- Forwarding rate
59.53 Mpps
- Power consumption (max)
13.58 W
- Power supply included
yes
Documents & Downloads
Datasheet
Datasheet 3798646 D-Link DMS-1250-10S - Switch – L2+ – Smart
User & Safety Instructions
User & Safety Instructions 3798646 D-Link DMS-1250-10S - Switch – L2+ – Smart
Description
The D-Link DMS 1250-10S switch was developed to
to meet the requirements of modern networks,
and offers robust security, high performance and
extended network functions.
With a switching capacity of 80 Gbps and
supporting up to 4094 VLAN groups
he was developed, br to <>enable efficient data flow and secure connectivity across the network.
The switch's comprehensive security features,
including support for various
authentication methods and encryption algorithms,
ensure a protected network environment. The
fan-less design and energy-efficient operation
also make it the ideal choice for companies that <>minimize noise and noise
want to reduce operating costs.
Whether for small companies or large companies, the
D-Link DMS 1250-10S offers reliable,
scalable and secure...
This text is machine translated.
to meet the requirements of modern networks,
and offers robust security, high performance and
extended network functions.
With a switching capacity of 80 Gbps and
supporting up to 4094 VLAN groups
he was developed, br to <>enable efficient data flow and secure connectivity across the network.
The switch's comprehensive security features,
including support for various
authentication methods and encryption algorithms,
ensure a protected network environment. The
fan-less design and energy-efficient operation
also make it the ideal choice for companies that <>minimize noise and noise
want to reduce operating costs.
Whether for small companies or large companies, the
D-Link DMS 1250-10S offers reliable,
scalable and secure...
This text is machine translated.
Features
- D-Link DMS 1250-10S - Switch – 8 connections – Smart
- Device type : switch - 8 connections – L2+ - Smart
- Sub-type : 2.5 Gigabit Ethernet
- Ports : 8 x 2.5GBase-T + 2 x 10 Gigabit SFP+
- Performance : 80 Gbps switching capacity
- Transfer rate packet: 59.53 Mpps
- Capacity : MAC addresses per port: 64
- Static MAC addresses: 256
- Packed buffer size: 12 Mbit
- IGMP groups: 256
- MLD groups: 256
- Link aggregation groups: 8
- Link aggregation ports per channel: 8
- VLAN Groups: 4094
- Queues per port: 8
- IPv4 routes (static): 128
- IPv6 routes (static): 64
- Port Security inputs 64
- ARP entries: 64
- Size of the MAC address table : 16,000 entries
- Jumbo Frame Support : 12KB
- Routing protocol : static IP routing, STP, MSTP, RSTP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2
- Remote management protocol : IPv6, IPv4, DHCP, Telnet, TFTP, SNMP, SNMP 2C, SNMP 3, CLI, BOOTP, ICMP, RMON, MIB
- Features : 6 kV surge protection, DiffServ support, QoS, port mirroring, DHCP relays, IGMP Snooping, MLD Snooping, without Fan, ACL Support, Floating Storm Control, Port Security, Voice VLAN, DSCP Marking, Auto Uplink (Auto MDI/MDI-X), Store and Forward, loopback detection, LLDP support, LLDP-MED, flow control, EEE, HOL blocking prevention, multicast filter function, PD-Alive, DDM, WRR, Bandwidth control, VLAN support, NDP, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DoS Attack Protection, DHCP Server, IPMB, ARP Inspection, ARP support, AAA, 802.1x authentication, OTP, Cable Diagnostics function, SNMP trap, TFTP client, Telnet server, firmware can be updated, SNTP support
- Product certifications : IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.11g, IEEE 802.1w, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x
- Power supply : AC 100-240 V (50/60 Hz)
- Dimensions (width x depth x height): 33 cm x 20 cm x 4.4 cm
- Weight: 1,877 kg
- Localization : Europe
Scope of delivery
- D-Link DMS-1250-10S/E 10-port switch
