Buy D-Link DMS-1250-18/E DMS-1250-18/E Network SFP+ switch

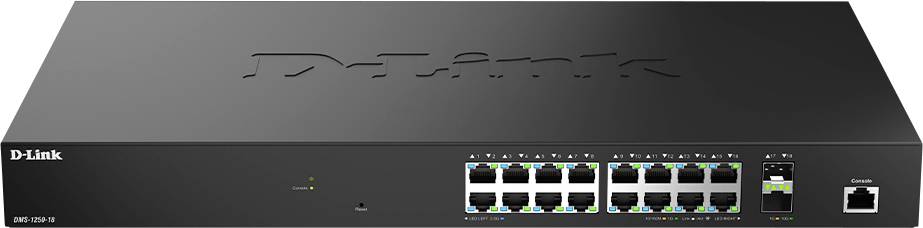

A black D-Link network switch with sixteen Ethernet ports, labeled 'D-Link' on top. Suitable for managing multiple network connections.

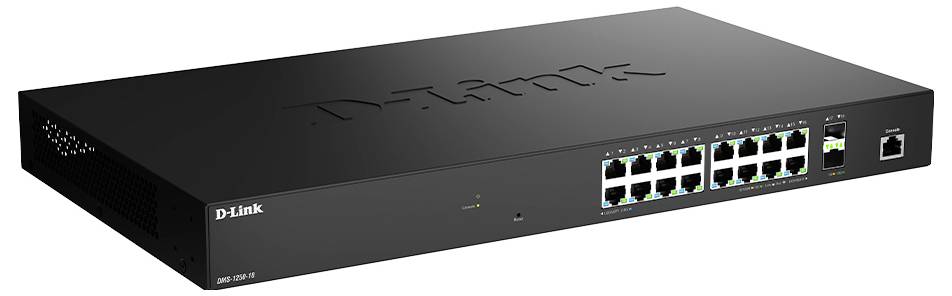

A black D-Link network switch with 16 Ethernet ports and additional connectivity options displayed on the front panel.

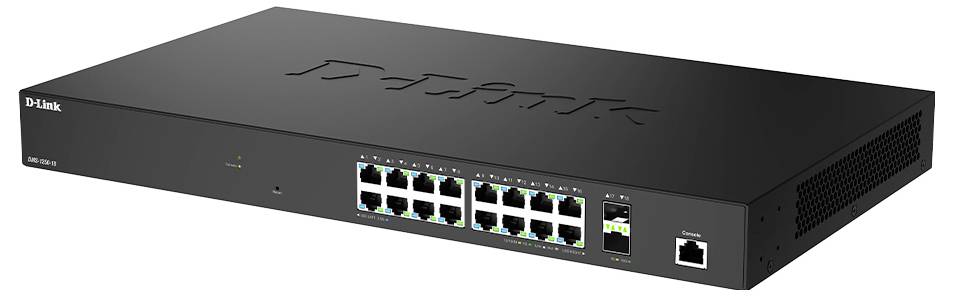

A black D-Link network switch with 16 Ethernet ports and LED indicators, used for managing data traffic in a network.

The back panel of an electronic device featuring multiple ventilation holes, power socket, and various ports, including labeled inputs and connections.

1/4

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 357.14 / piece)

€ 357.14

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

D-Link DMS-1250-18/E Network switch Managed L2 2.5G Ethernet (100/1000/2500) black

Managed L2 Web-based management
Quality of Service (QoS) Support Site Settings Configuration (CLI)
Number of basic switching RJ-45 Ethernet ports: 16
MAC address table: 16000 entries Routing/switching capacity: 120 Gb/s.
Access control list
Rack mounting Stackable
AC power supply included

Technical specifications

Energy source: AC

Product type: Network SFP+ switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s
2500 MBit/s

Working principle: Managed switch

Ethernet ports: 18

SFP+ ports: 2 x

SFP ports: 2 x

Port type: 18 x 10/100/1000/2.5G + 2 x 10 Gigabit SFP+

Auto-uplink at each port: Yes

Jumbo frames: Yes

Power supply (LOV): mains-powered

MAC addresses: 16000

Weight: 2.97 kg

Width: 440 mm

Height: 44 mm

Depth: 250 mm

Type: DMS-1250-18/E

Factory colour: Black

Max. ambient temperature: -5 °C

Min. ambient temperature: 50 °C

Power supply (details): 100 - 240 V

: 512 MB

UKCA: yes

Fanless: yes

Operating temperature (T-T): -5 - 50 °C

Basic switching RJ-45 Ethernet ports quantity: 16

Packet buffer memory: 12 MB

Storage relative humidity (H-H): 0 - 95 %

Password protection: yes

Switching capacity: 120 Gbit/s

Traffic classification: yes

Loop protection: yes

ARP inspection: yes

Jumbo frames: 12000

Active link detection: yes

SFP+ module slots quantity: 2

Flow control support: yes

Power over Ethernet (PoE): no

MAC address filtering: yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Stackable: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Configuring Location Settings (CLI): yes

Web-based management: yes

Store-and-forward: yes

Access Control List (ACL): yes

Rate limiting: yes

Rack mounting: yes

Flash memory: 32 MB

MAC address table: 16000 Eintragungen

IGMP snooping: yes

Auto MDI/MDI-X: yes

Number of VLANs: 4096

Spanning tree protocol: yes

Operating relative humidity (H-H): 0 - 95 %

VLAN support: yes

Storage temperature (T-T): -20 - 70 °C

Forwarding rate: 89.29 Mpps

Power consumption (max): 22 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3466356 D-Link DMS-1250-18/E DMS-1250-18/E Network SFP+ switch

Description

The D-Link DMS 1250-18 is a versatile switch that optimizes your network operation while providing robust management functions. It supports a significant capacity of up to 128 IGMP groups, 4094 VLAN groups, and 16,000 MAC addresses, ensuring extensive connectivity options for a variety of devices. Thanks to its fan-less design this switch works silently and is therefore suitable for Ideal for use on your desk, whether in the office or at home. With advanced security features such as port security, ARP inspection and DoS attack protection it protects your network against unauthorized access and attacks.

This text is machine translated.
