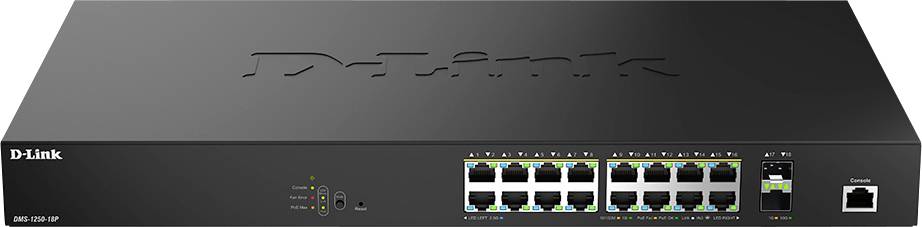

A black D-Link network switch with multiple Ethernet ports and indicator lights on the front panel.

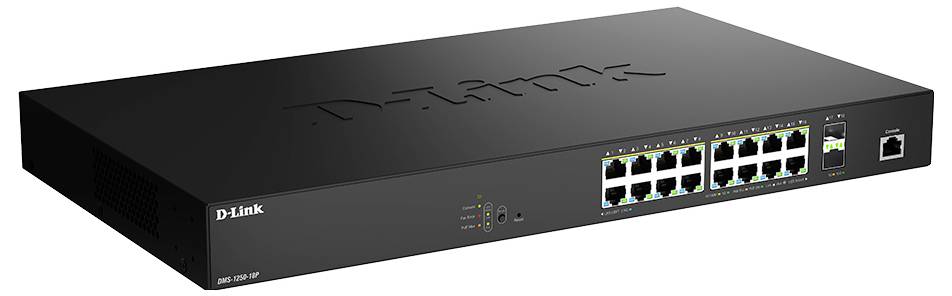

A 24-port D-Link network switch with LED indicators, designed for managing wired connections in a network infrastructure environment.

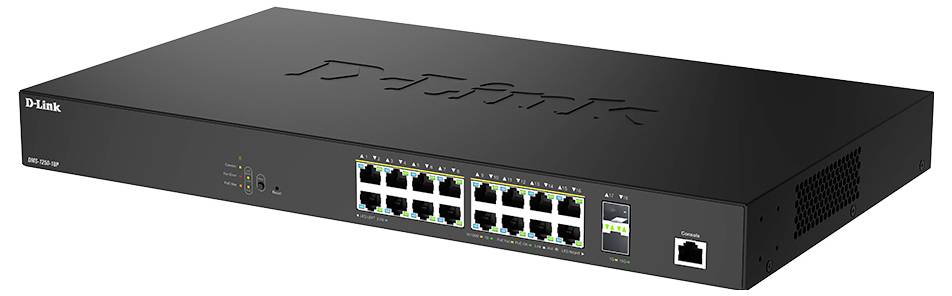

A black D-Link network switch with 16 Ethernet ports and indicator lights, designed for managing data connections in networks.

'Cisco Systems' device rear panel with ventilation, power connector, and small buttons.

1/4

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 604.20 / piece)

€ 604.20

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

D-Link DMS-1250-18P/E Network switch Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) black

Managed L2 Web-based management
Quality of Service (QoS) Support Site Settings Configuration (CLI)
Number of basic switching RJ-45 Ethernet ports: 16
MAC address table: 16000 entries Routing/switching capacity: 120 Gb/s.
Access control list
Rack mounting Stackable
AC power supply includes Power over Ethernet (PoE)

Technical specifications

Number of fans: 3 fans
Energy source: AC

Product type: Network RJ45 switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s
2500 MBit/s

Working principle: Managed switch

Ethernet ports: 16

SFP+ ports: 2 x

Port type: 16 x 10/100/1000/2.5G (PoE+) + 2 x 10 Gigabit SFP+

Auto-uplink at each port: Yes

Jumbo frames: Yes

Router features: PoE

Power supply (LOV): mains-powered

MAC addresses: 16000

Weight: 3.52 kg

Width: 440 mm

Height: 44 mm

Depth: 250 mm

Type: DMS-1250-18P/E

Factory colour: Black

Max. ambient temperature: -5 °C

Min. ambient temperature: 50 °C

Power supply (details): 100 - 240 V

: 512 MB

UKCA: yes

Power over Ethernet (PoE) ports quantity: 16

Operating temperature (T-T): -5 - 50 °C

Basic switching RJ-45 Ethernet ports quantity: 16

Packet buffer memory: 12 MB

Storage relative humidity (H-H): 0 - 95 %

Password protection: yes

Switching capacity: 120 Gbit/s

Traffic classification: yes

Loop protection: yes

ARP inspection: yes

Jumbo frames: 12000

Active link detection: yes

Power over Ethernet (PoE) power per port: 370 W

SFP+ module slots quantity: 2

Flow control support: yes

Power over Ethernet (PoE): yes

MAC address filtering: yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Stackable: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Configuring Location Settings (CLI): yes

Web-based management: yes

Store-and-forward: yes

Access Control List (ACL): yes

Rate limiting: yes

Rack mounting: yes

Flash memory: 32 MB

MAC address table: 16000 Eintragungen

IGMP snooping: yes

Auto MDI/MDI-X: yes

Number of VLANs: 4096

Spanning tree protocol: yes

Operating relative humidity (H-H): 0 - 95 %

VLAN support: yes

Storage temperature (T-T): -20 - 70 °C

Forwarding rate: 89.29 Mpps

Power consumption (max): 443.84 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3466357 D-Link DMS-1250-18P/E DMS-1250-18P/E Network RJ45 switch PoE

Description

The D-Link DMS 1250-18P switch was developed to meet the requirements of modern networks and to simultaneously offer a reliable and efficient performance. With a maximum switching capacity of 120 Gbit/s and a packet forwarding rate of 89.29 Mpps, this switch ensures a fast data transfer between the attached devices. It supports Power over Ethernet (PoE+) with a power of 240 W, so that devices such as IP cameras and telephones can be supplied with power via the network cable, which reduces the need for additional sockets.
The D-Link DMS 1250-18P offers comprehensive management functions, including SNMP-support for remote monitoring and management as well as various protocols for an improved network security. With functions such as VLAN-support, IGMP-snooping and port-security this switch contributes for maintaining an optimum network performance and -security. Its rugged design includes environmental resistance with an operating temperature range from -5°C to 50°C and humidity of up to 95%, ensuring reliable functionality in different environments.
