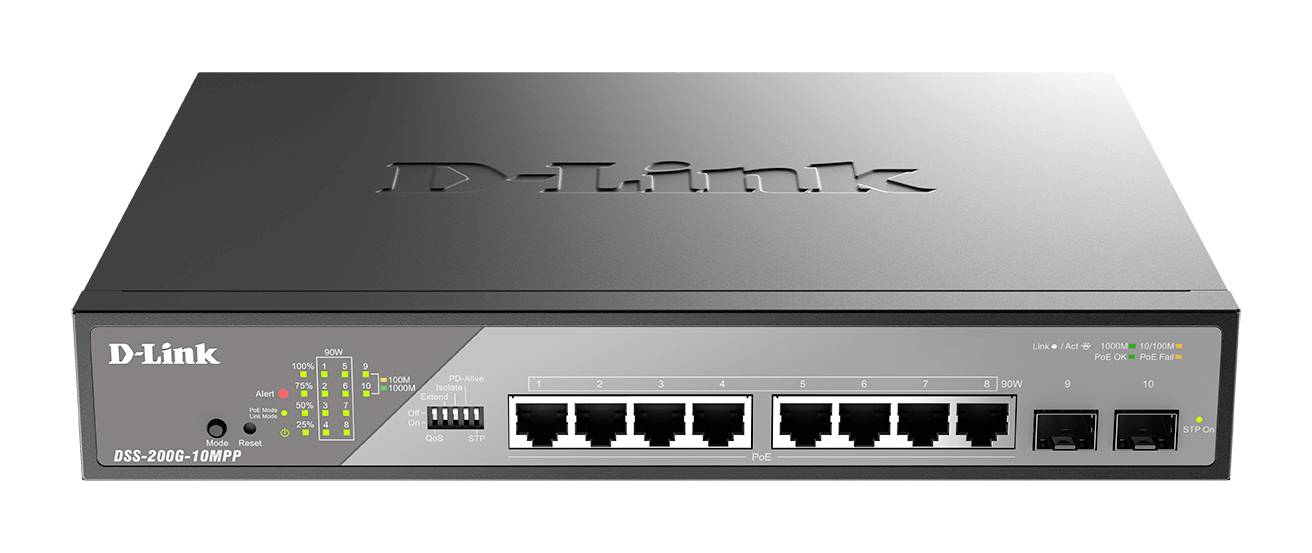

Front view of a D-Link network switch, model DGS-2000-10MP, with 10 Ethernet ports, status LEDs, and power/network indicators.

Front view of a D-Link network switch, model DGS-2000-10MP, with 10 Ethernet ports, status LEDs, and power/network indicators.

D-Link 16-port rackmount Ethernet switch, shown at an angle with front status LEDs, numbered ports, and power indicator.

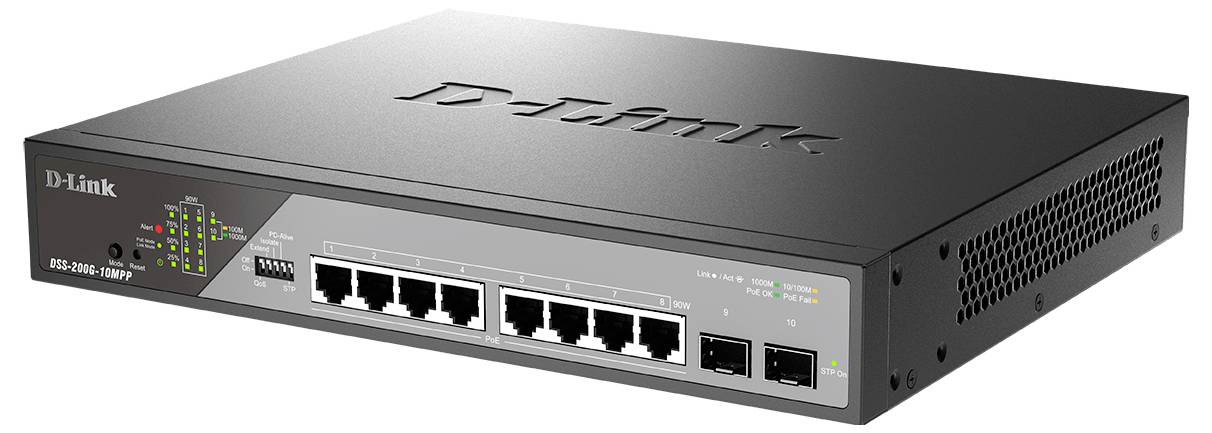

D-Link DGS-1100-08MP 8-port Ethernet switch with front status LEDs, eight network ports, and two uplink ports in a black metal case

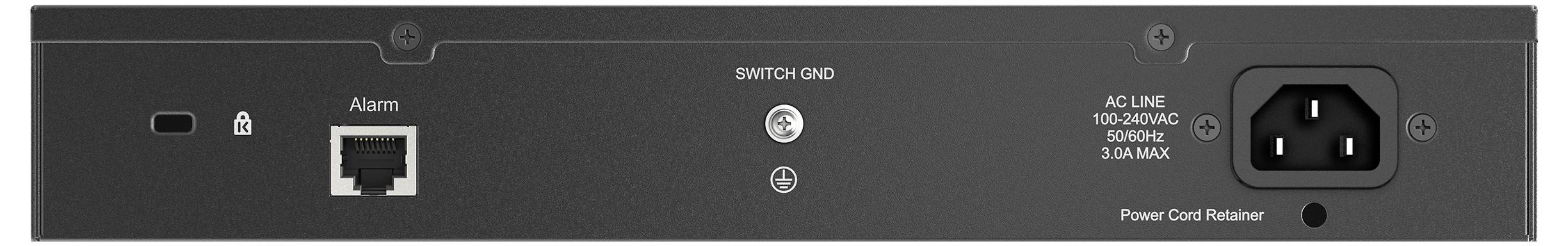

Black control-panel backplate with an RJ45 port labeled Alarm, switch ground symbol, AC line marking, and IEC power inlet labeled 10A 120V 50/60Hz 3.0A max.

1/4

D-Link

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

D-Link DSS-200G-10MPP/E network switch managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U gray

Managed L2 Web-based management
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 8
MAC address table: 8000 entries Routing/switching capacity: 20 Gb/s Controllable multicast
1U
AC power supply includes Power over Ethernet (PoE)
This text is machine translated.

Technical specifications

Form factor: 1U
Number of fans: 1 fans
DDR3-SDRAM memory type
Energy source: AC

Product type: Network switch

Weight: 2.05 kg

Width: 280 mm

Height: 44 mm

Depth: 230 mm

Type: D-Link DSS-200G-10MPP/E 10-Port Switch,

Factory colour: Grey

Max. operating noise: 50.6 dB

Power supply (details): 100 - 240 V

Input voltage: 100 - 240 V

: 128 MB

UKCA: yes

Power over Ethernet (PoE) ports quantity: 8

Fanless: no

Operating temperature (T-T): -5 - 50 °C

Installed SFP modules quantity: 2

Basic switching RJ-45 Ethernet ports quantity: 8

Total Power over Ethernet (PoE) budget: 242 W

Packet buffer memory: 4.1 MB

Storage relative humidity (H-H): 0 - 95 %

Password protection: yes

Auto-negotiation: yes

Switching capacity: 20 Gbit/s

Heat dissipation: 87 BTU/h

Traffic classification: yes

Jumbo frames: 10240

Power over Ethernet (PoE) power per port: 90 W

Flow control support: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Number of queues: 4

Web-based management: yes

Rate limiting: yes

Reset button: yes

Half duplex: yes

Mean time between failures (MTBF): 508112 h

Full duplex: yes

Flash memory: 32 MB

MAC address table: 8000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Auto MDI/MDI-X: yes

Number of VLANs: 4094

Spanning tree protocol: yes

Head-of-line (HOL) blocking: yes

Operating relative humidity (H-H): 0 - 95 %

VLAN support: yes

Storage temperature (T-T): -40 - 70 °C

Forwarding rate: 14.88 Mpps

Power consumption (max): 267.5 W

Power supply included: yes
