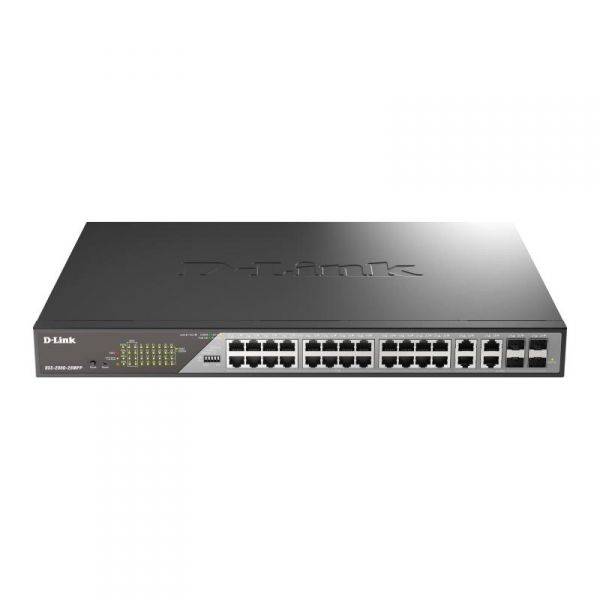

D-Link DSS-200G-28MPP D-Link DSS-200G-28MPP/E 28-Port Switch, Network switch
EAN:
Part number:
Item no:
Highlights & Details
D-Link DSS-200G-28MPP network switch managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U gray
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Number of basic switching RJ-45 Ethernet ports: 24
- MAC address table: 8000 entries Routing/switching capacity: 56 Gb/s Controllable multicast
- 1U
- AC power supply includes Power over Ethernet (PoE)
- This text is machine translated.
Technical specifications
- Form factor: 1U
- Number of fans: 2 fans
- DDR3-SDRAM memory type
- Energy source: AC
- Product type
Network switch
- Weight
4.71 kg
- Width
440 mm
- Height
44 mm
- Depth
330 mm
- Type
D-Link DSS-200G-28MPP/E 28-Port Switch,
- Factory colour
Grey
- Max. operating noise
54 dB
- Power supply (details)
100 - 240 V
- Input voltage
100 - 240 V
128 MB
- Power over Ethernet (PoE) ports quantity
24
- Fanless
no
- Operating temperature (T-T)
-5 - 50 °C
- Combo SFP ports quantity
4
- Basic switching RJ-45 Ethernet ports quantity
24
- Total Power over Ethernet (PoE) budget
518 W
- Packet buffer memory
4.1 MB
- Storage relative humidity (H-H)
0 - 95 %
- Password protection
yes
- Auto-negotiation
yes
- Switching capacity
56 Gbit/s
- Heat dissipation
209.16 BTU/h
- Traffic classification
yes
- Jumbo frames
10240
- Power over Ethernet (PoE) power per port
30 W
- Flow control support
yes
- Power over Ethernet (PoE)
yes
- Quality of Service (QoS) support
yes
- Port mirroring
yes
- Link aggregation
yes
- Jumbo frames support
yes
- Multicast support
yes
- Broadcast storm control
yes
- Number of queues
4
- Web-based management
yes
- Rate limiting
yes
- Reset button
yes
- Half duplex
yes
- Mean time between failures (MTBF)
289075 h
- Full duplex
yes
- Flash memory
32 MB
- MAC address table
8000 Eintragungen
- SSH/SSL support
yes
- IGMP snooping
yes
- Auto MDI/MDI-X
yes
- Number of VLANs
4094
- Spanning tree protocol
yes
- Head-of-line (HOL) blocking
yes
- Operating relative humidity (H-H)
0 - 95 %
- VLAN support
yes
- Storage temperature (T-T)
-40 - 70 °C
- Forwarding rate
41.67 Mpps
- Power consumption (max)
579.3 W
- Power supply included
yes
