Buy D-Link DWM-314-GP/E LTE module Built-in modem: 5G 3.4 GBit/s

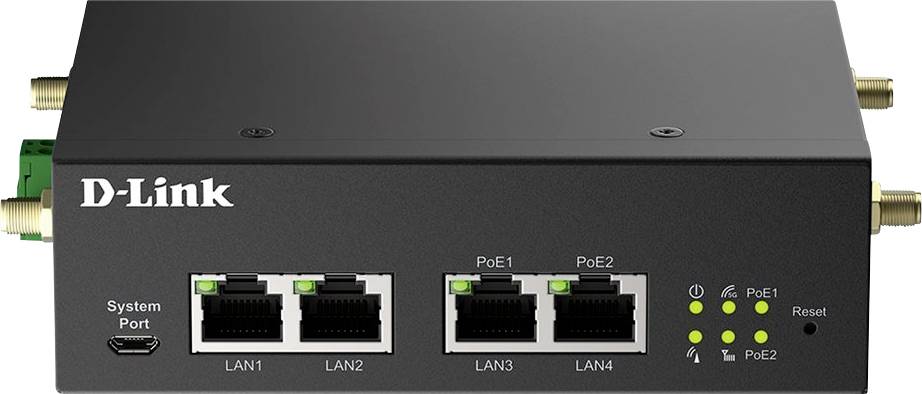

Black D-Link network switch with four LAN ports, two PoE ports, system port and LEDs for status indication.

Datasheet (PDF)

Unavailable

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

D-Link DWM-314-GP 5G M2M VPN PoE router

Highlights & Details

Supports 5G NR and 4G LTE protocols
3.4 Gbps maximum transfer rate
Four external removable antennas for improved signal quality
Two micro SIM slots for more connectivity options
Robust design that can withstand extreme temperatures and moisture

Technical specifications

Product type: LTE module

Type: DWM-314-GP/E

Function: 5G modem

Built-in modem: 5G

Wi-Fi transmission rate (max.): 3.4 GBit/s

LAN data transfer rate: 3.4 GBit/s

Interfaces: LTE

No. of antennas: 4 x

LTE rate: 1.6 Gbps

5G speed: 3.4 Gbps

Width: 131 mm

Height: 40 mm

Depth: 99 mm

Weight: 0

Factory colour: Black

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3428339 D-Link DWM-314-GP/E LTE module Built-in modem: 5G 3.4 GBit/s

User & Safety Instructions

User & Safety Instructions 3428339 D-Link DWM-314-GP/E LTE module Built-in modem: 5G 3.4 GBit/s

Description

The D-Link DWM-314-GP 5G M2M Multi-Connect VPN PoE router/modem offers 5G-NR and 4G-LTE Dual mode connectivity. It has four Gigabit Ethernet ports, including two PoE-enabled, for expanding the connectivity to meet the requirements of M2M applications. The DWM-314-GP provides both data and power via a single Ethernet cable. It rationalizes M2M communication for IoT applications, reduces the need for a separate electrical infrastructure and reduces installation costs for an additional PoE switch. It Ideal supplies power to surveillance cameras, digital signage, wireless access points and IoT sensors, enabling flexible device placement without the need for additional wiring. Equipped with Dual SIM slots, simply insert two SIM cards for a reliable high speed 5G connection. Combined with seamless 4G/5G switching support, the DWM-314-GP supports failover redundancy to maintain connectivity to devices even if an operator network fails. The DWM-314-GP has a corrosion-resistant, galvanized steel housing and can withstand extreme temperatures and a high input voltage (48-57 V DC), so that it can be used reliably even in harsh environments.

Reliable connectivity
The D-Link DWM-314-GP supports multiple wireless protocols, including 5G NR and 4G LTE, providing flexibility and speed for a variety of applications.

High performance
With a maximum transmission rate of 3.4 Gbit/s, this modem is equipped for high data traffic and ensures a fast Internet access.

Flexible design
With four external removable antennas, the modem improves signal reception and is therefore suitable for different environments and distances.

Durable design
The modem is equipped with a corrosion-resistant, zinc-plated steel housing and is designed for long life and reliable performance under harsh conditions.

Comprehensive security features
The modem has advanced security protocols such as VPN support and firewall protection, which ensure secure data transmission for users.

This text is machine translated.
