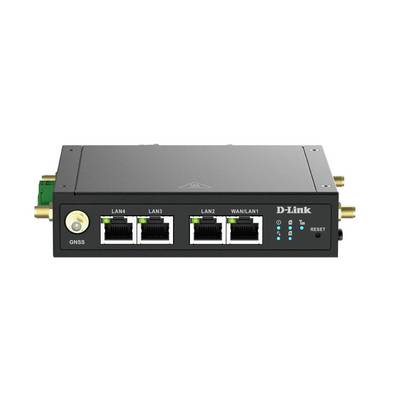

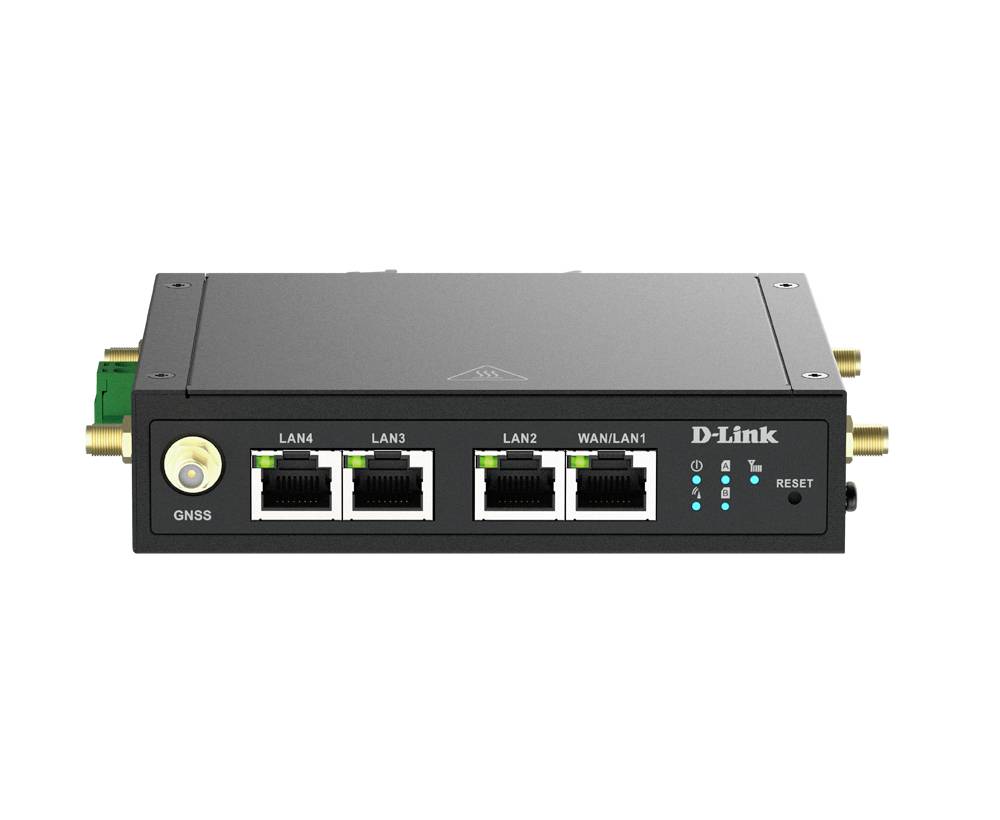

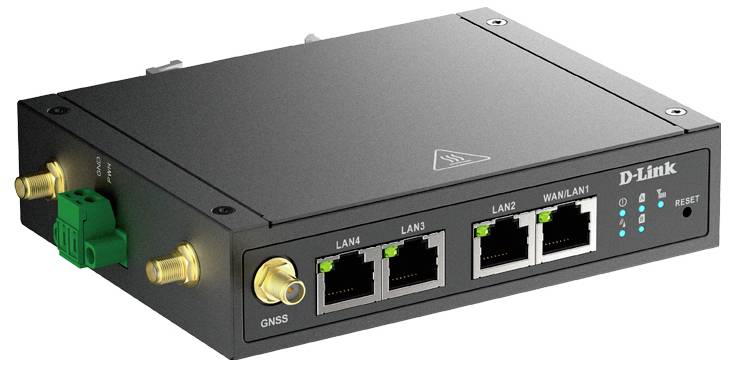

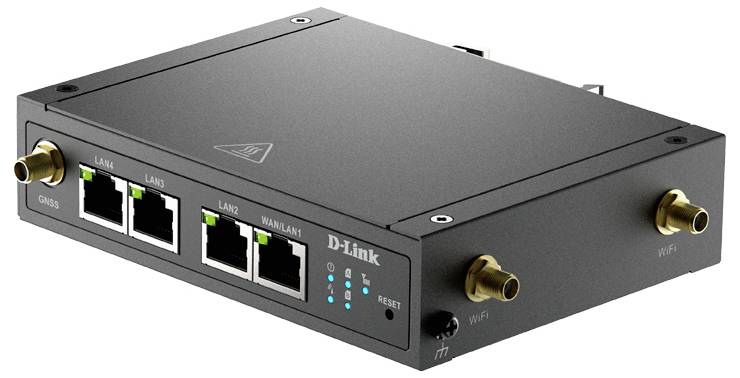

D-Link DWM-530-T Wi-Fi router
EAN:
Part number:
Item no:
D-Link DWM-530-T portable network device router for mobile phone network
Highlights & Details
- Router for mobile networks
- Wi-Fi
- 4G standards: LTE
- Antenna type: External SMA
- Black
Technical specifications
- WLAN standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- Product type
Wi-Fi router
- Type
DWM-530-T
- No. of antennas
4 x
- 10/100/1000 Mbps ports
4 x
- Width
131 mm
- Height
31 mm
- Depth
99 mm
- Weight
1.081
- Factory colour
Black
- Cable length
0 cm
- Keyboard layout
German, QWERTZ
- Input voltage
9 -36 V
- Safety
SNMP
SNMPv2
SNMPv3
WEP
WPA
WPA-PSK
WPA2
WPA2-PSK
- Wi-Fi
Yes
- UKCA
yes
- Operating temperature (T-T)
-30 - 70 °C
- Firewall
yes
- Card reader integrated
yes
- DHCP server
yes
- Reset button
yes
- DMZ support
yes
- Port forwarding
yes
- Operating relative humidity (H-H)
10 - 95 %
- Network address translation (NAT)
yes
- Storage temperature (T-T)
-40 - 85 °C
- Number of SIM cards
2
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3759758 D-Link DWM-530-T Wi-Fi router
Description
The DWM-530-T 4G-M2M router offers LTE-CAT-4 capability. It is equipped with four Fast Ethernet ports, one of which can be configured as an Ethernet WAN. This makes it easy to switch between broadband and 4G-LTE. There is also Wi-Fi N300 connectivity, making it suitable for a wide range of M2M applications.
This text is machine translated.
This text is machine translated.
Scope of delivery
- DWM-530-T, 2 x mobile radio antennas, 2 x WLAN antenna, mains adapter (DC 12V/2A), network cable, 2 pin terminal Block, DIN-rail kit
