D-Link DMC-G10SC/E Network Media Converter 1000 Mbit / s single mode

Highlights & Details

Cable connected
1000 Mbit/s 10000 m
Number of Ethernet LAN (RJ-45) ports: 1 DC (DC)
Single mode SC

Technical specifications

Maximum data transfer rate of 1000 Mbit/s.

Product type: Media converter

10/100/1000 Mbps ports: 1 x

Weight: 124 g

Width: 93.5 mm

Height: 26 mm

Depth: 70.5 mm

Type: Converter

Factory colour: Black

: SC

Max. output current: 0.55 A

Output voltage: 5 V

Transfer type: Corded

UKCA: yes

Operating temperature (T-T): 0 - 55 °C

Internal: no

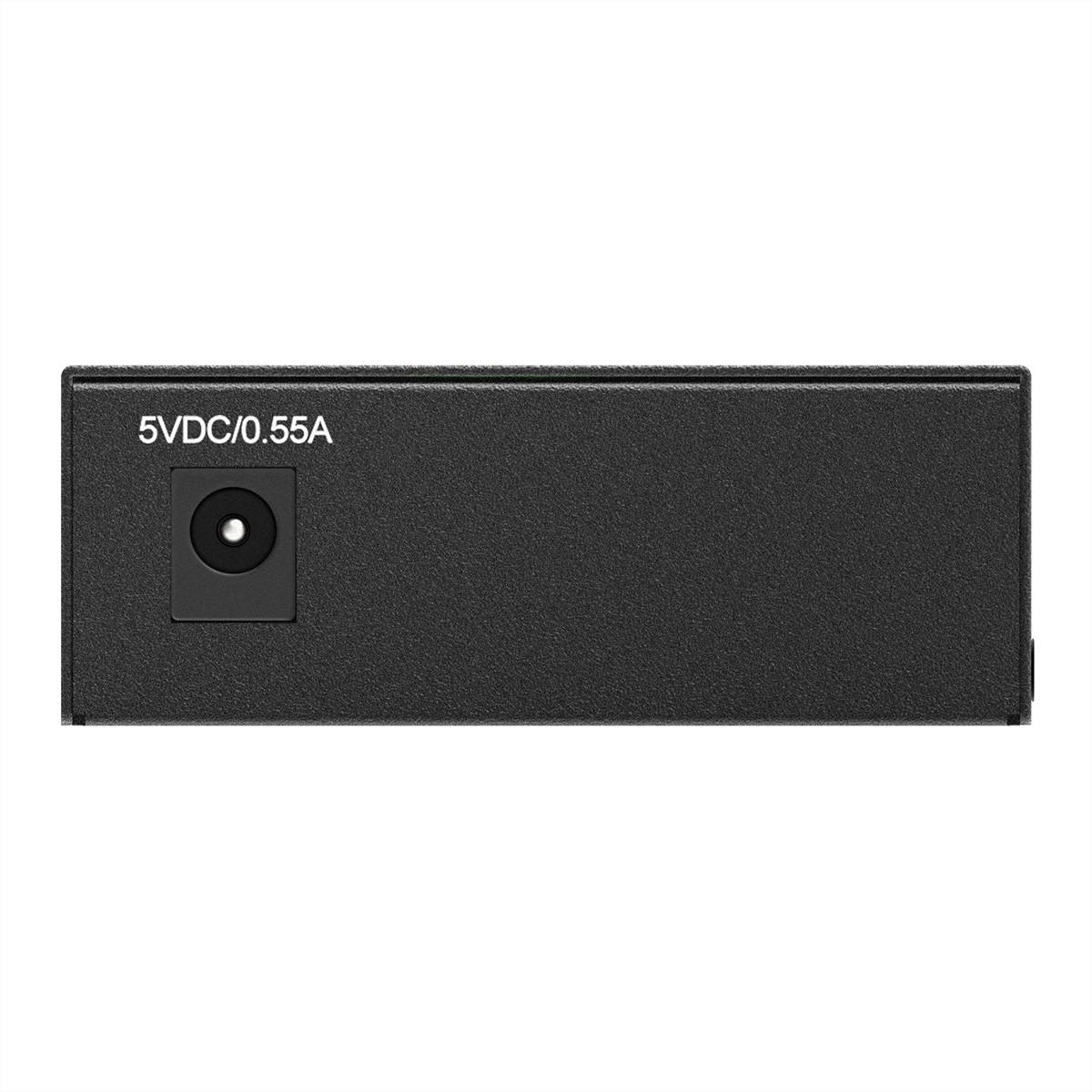

DC-in jack: yes

Auto MDI/MDI-X: yes

Operating relative humidity (H-H): 20 - 80 %

Storage temperature (T-T): -25 - 70 °C

Maximum transfer distance: 10000 m

Power consumption (max): 1.65 W

Documents & Downloads

Datasheet

Datasheet 3798277 D-Link Ethernet converter DMC-G10SC/E Gigabit

User & Safety Instructions

User & Safety Instructions 3798277 D-Link Ethernet converter DMC-G10SC/E Gigabit

Description

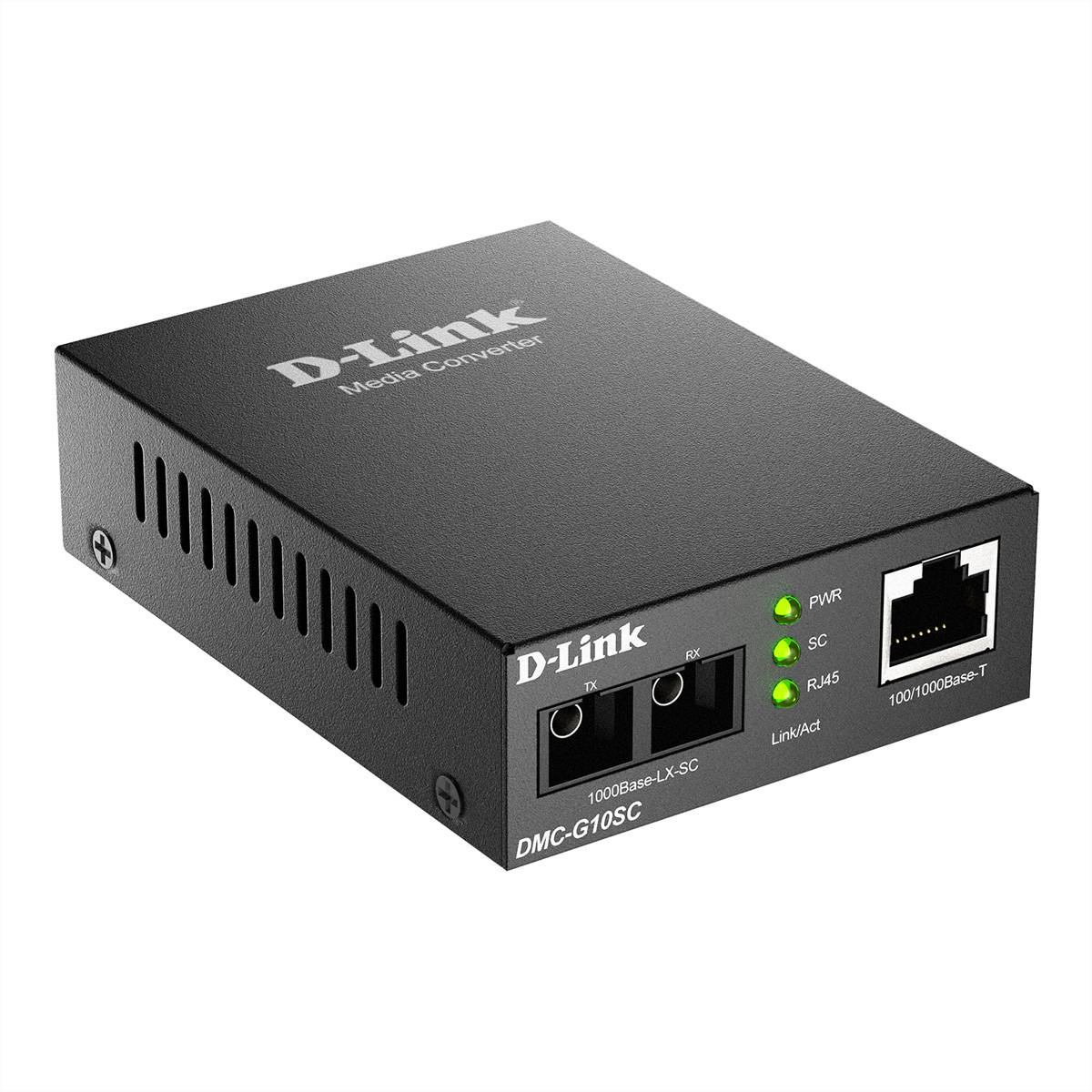

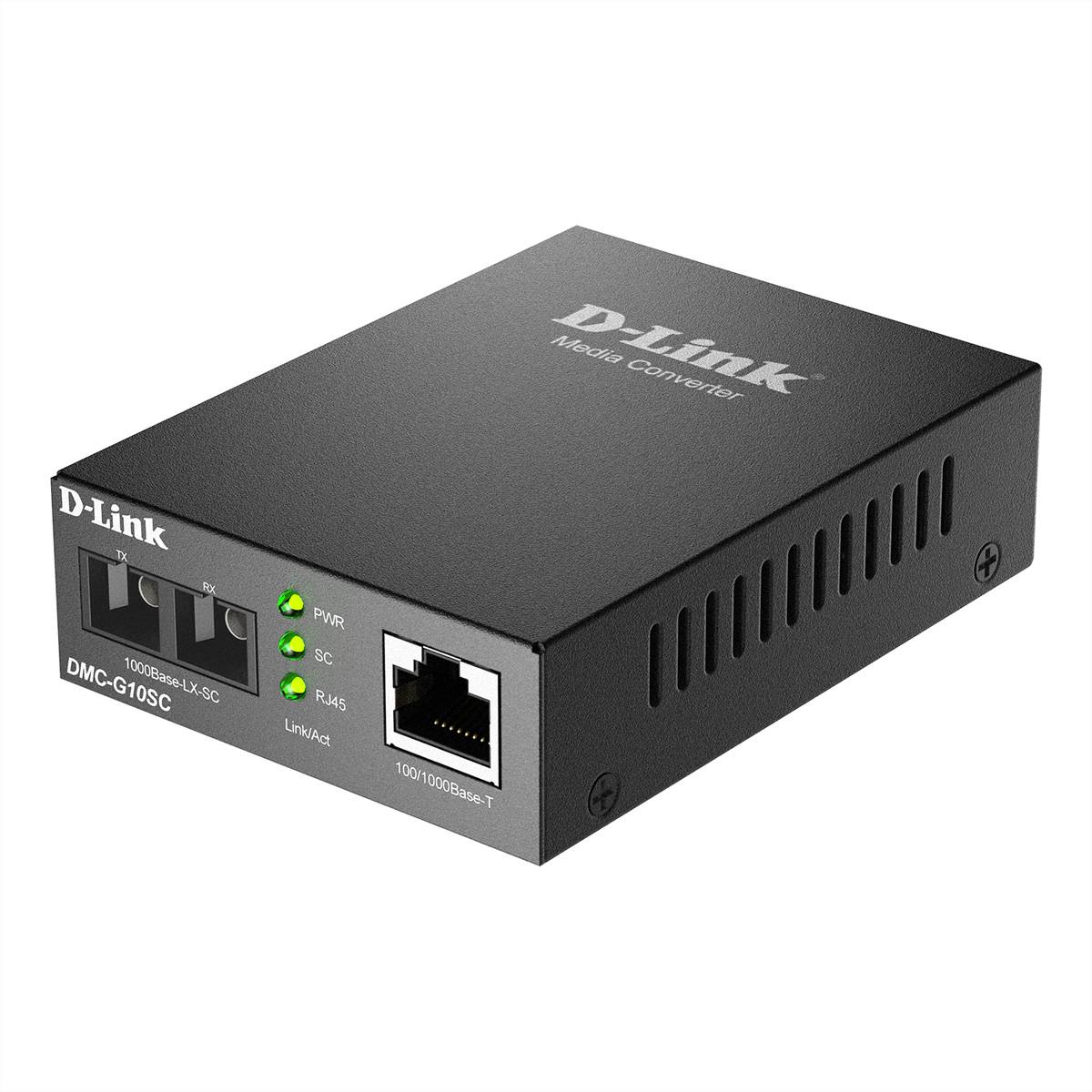

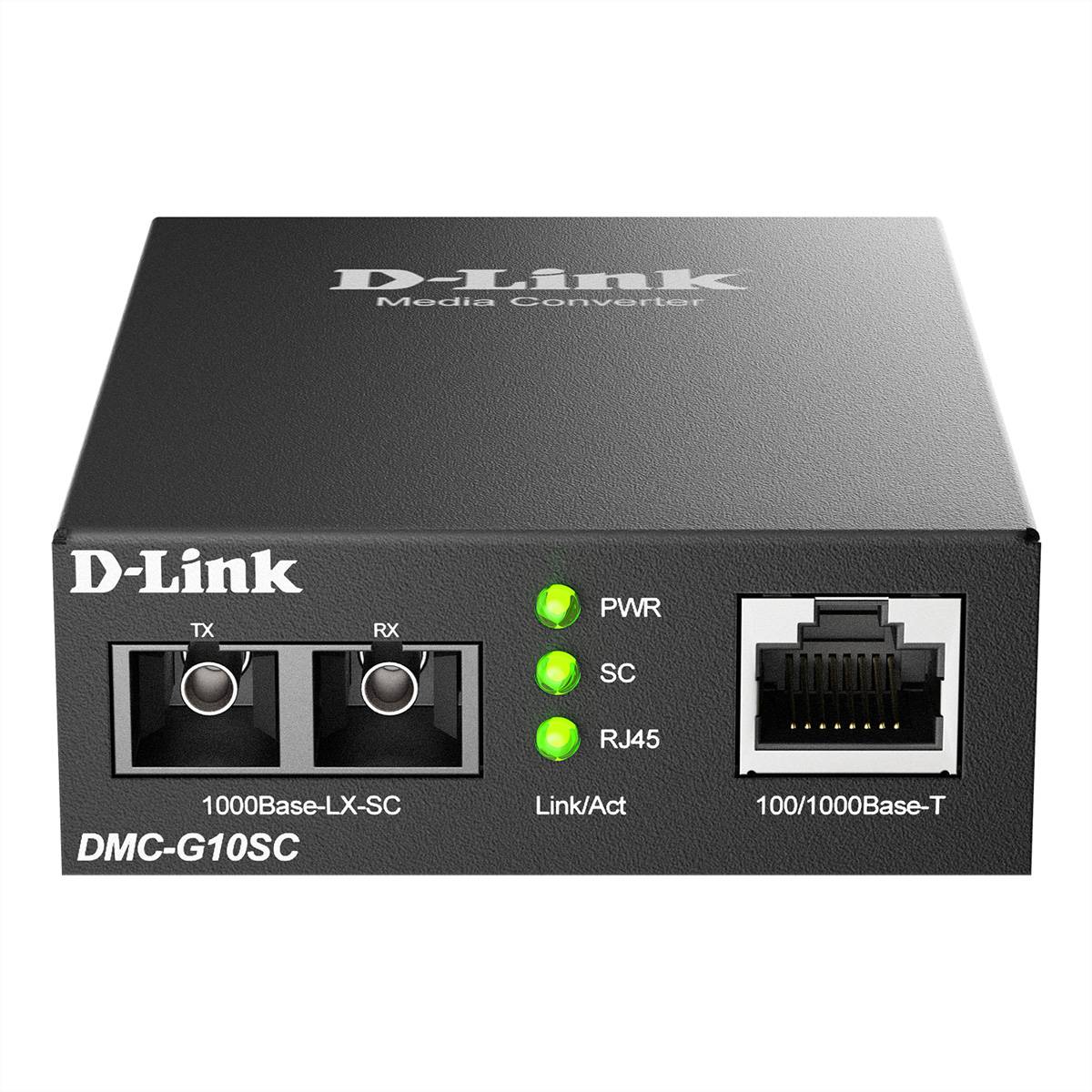

Media converter that converts a 100/1000Base-T Gigabit Ethernet connection over twisted pair into a 1000Base-LX Gigabit Ethernet connection via single mode fiber The DMC-G10SC is a media converter that is to convert a 100/1000Base-T Gigabit Ethernet connection over twisted pair into a 1000Base-LX Gigabit Ethernet connection via single mode fiber, allowing the link distance (up to 10 km) between two devices to be extended. This media converter is equipped with an RJ-45 connection for twisted-pair and a SC connection for glass fiber.
