D-Link USB-C® docking station DUB-V310 Compatible with (brand): Universal
EAN:
Part number:
Item no:
Datasheet (PDF)

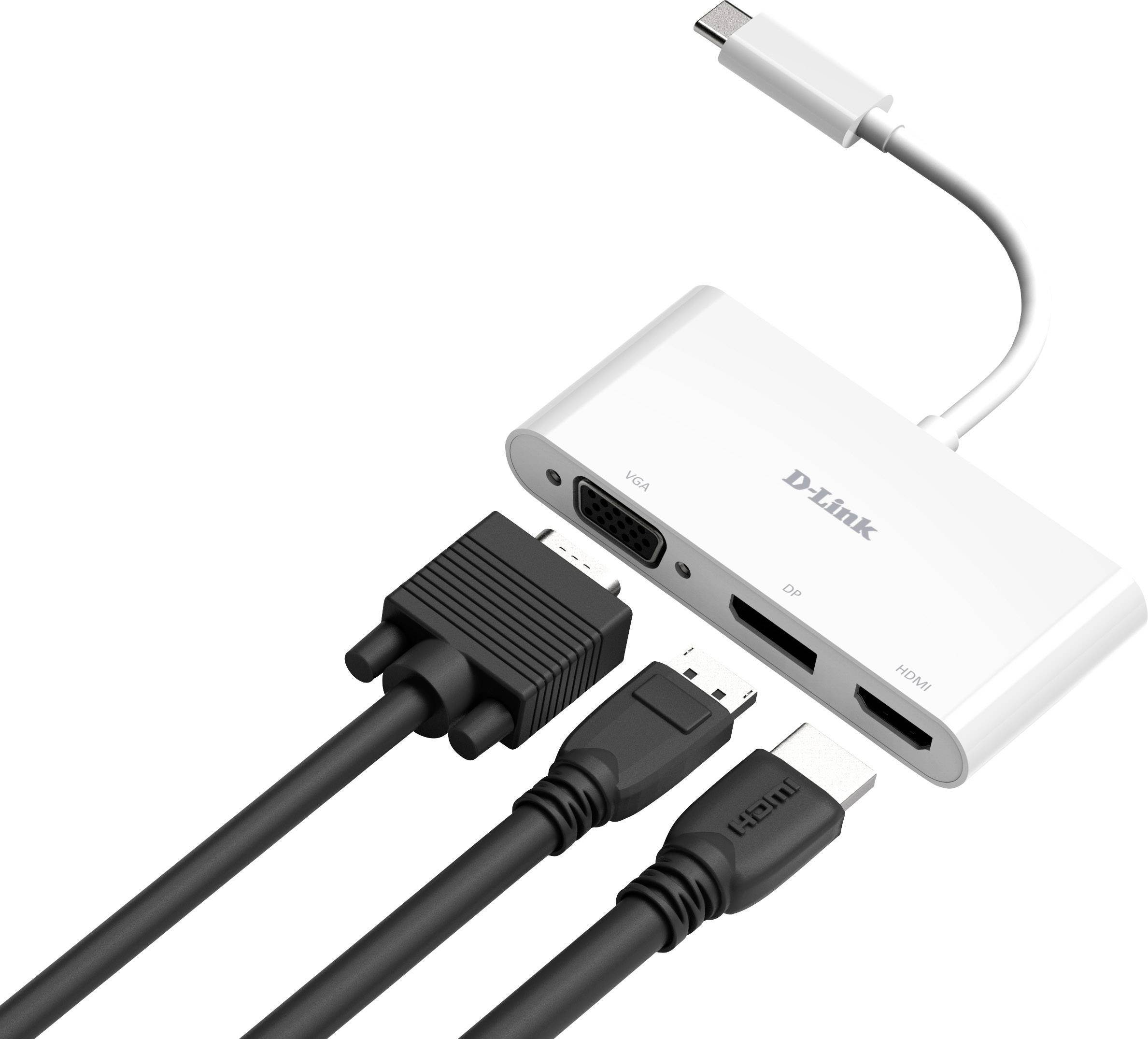

D-Link DUB-V310 USB-C® docking station
Highlights & Details
- Connection A (or inputs): USB-C®
- Connecton B (or outputs): HDMI plug
- No. of supported monitors:
- Maximum resolution:
- Key features:
Technical specifications
- Cable length: 11 cm
- Product type
USB-C® docking station
- Type A
USB-C®
- Type B
HDMI plug
- Suitable for
Notebook
- Cable length
0 mm
- Factory colour
White
- Width
62.5 mm
- Height
15 mm
- Depth
40.5 mm
- Weight
44 g
- Dim
(W x H x D) 62.5 x 15 x 40.5 mm
- Compatible with (brand)
Universal
- Interfaces (output)
DisplayPort
VGA
HDMI™
- Power supply (LOV)
via USB
- No. of outputs
3 x
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2290334 D-Link USB-C® docking station DUB-V310 Compatible with (brand): Universal
User & Safety Instructions
User & Safety Instructions 2290334 D-Link USB-C® docking station DUB-V310 Compatible with (brand): Universal
Description
Three video ports
can be connected to a larger range of external TVs and monitors. Ideal for taking away in environments with different displays, such as office meeting rooms.
Multi-stream
extend any Windows display simultaneously to a 4K HDMI, 4K DisplayPort and 1080p VGA monitor. Or mirror a Mac display at once to a 1080p HDMI, 1080p DisplayPort, and 1080p VGA monitor.
Compact and portable
compact and light design with a high-quality housing. Thanks to its small size, the hub fits in any laptop bag.
Thunderbolt 3 is easily
connected to a free USB-C or Thunderbolt-3 port for viewing HDMI, DisplayPort and VGA videos in seconds.

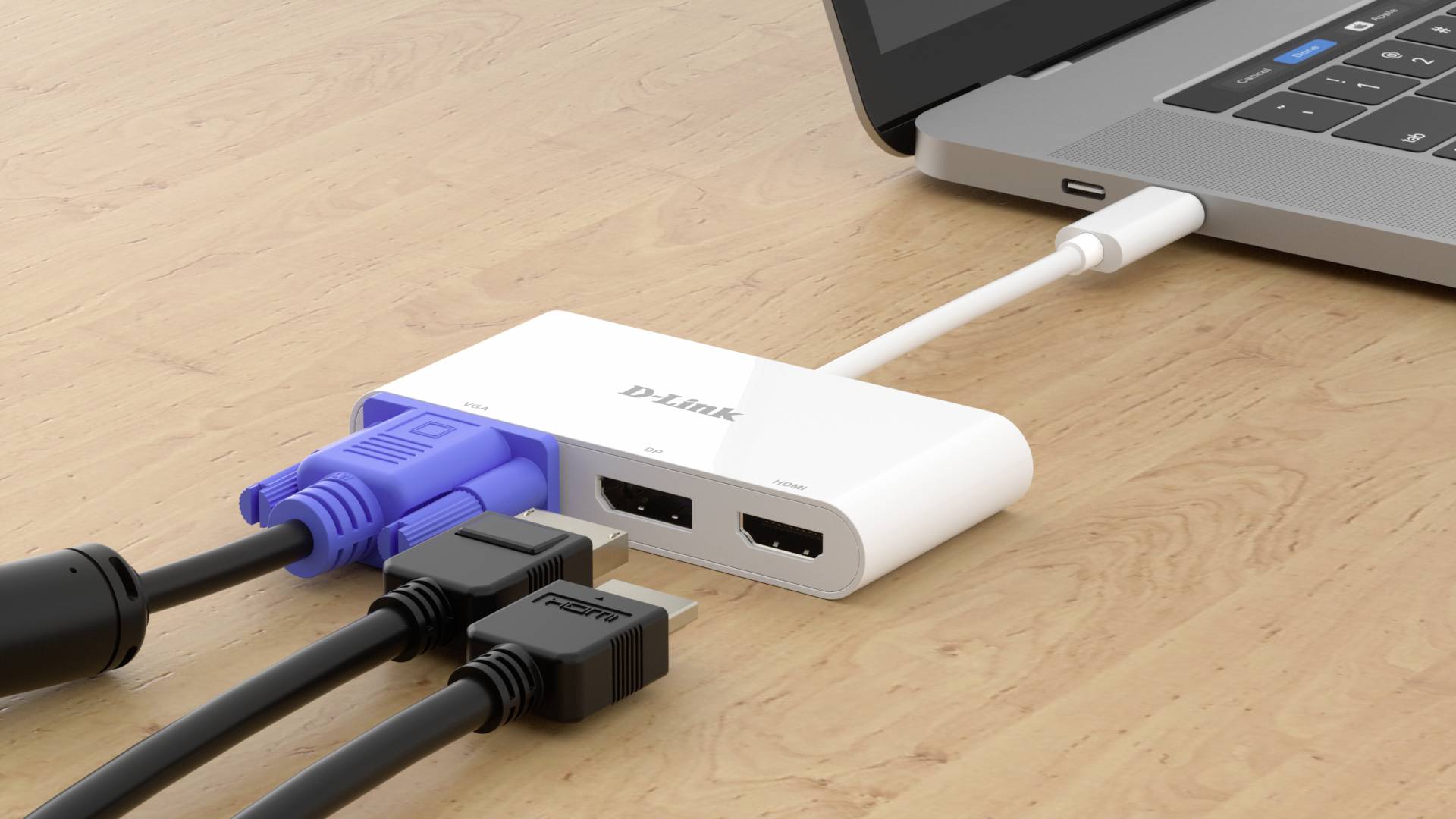

Triple your screen workspace.
Expand your computer in seconds with a 4K‑HDMI‑port, a 4K‑DisplayPort and a VGA‑port by plugging the hub into a free USB‑C‑port.
Ideal for videos. Up to 3 videos at a time.
Extend the display of your laptop anywhere on the move to a TV or monitor. Through the integrated multi-stream function of the hub, you can expand a Windows display by up to three external TVs or monitors at the same time or mirror a Mac display accordingly.
· HDMI: Up to 4K at 30 Hz Ultra HD (Windows), up to 1080p at 60 Hz (Mac)
· VGA: Up to Full HD 1080p at 60 Hz (Windows), up to 1080p at 60 Hz (Mac)
· DisplayPort: Upto 4K at 60 Hz Ultra HD (Windows), up to 1080p at 60 Hz can be used everywhere easily. No setup needed.
The first-class casing protects the high-quality chipset inside, so that your hub is always ready for use in all situations – at home, in the office or while traveling. Thanks to the convenient plug-and-play operation, you can use the hub immediately with any Mac, Windows or Linux computer with USB-C port. No drivers need to be installed and no complicated software setup is required.
Expand your screen with a 4K‑monitor with true-to-life playback.
Connect to the HDMI port on the hub to mirror your display in seconds or to expand her to a second monitor with 4K resolution and lifelike playback. Thanks to the full downward compatibility, you can also connect 720p or 1080p monitors.
