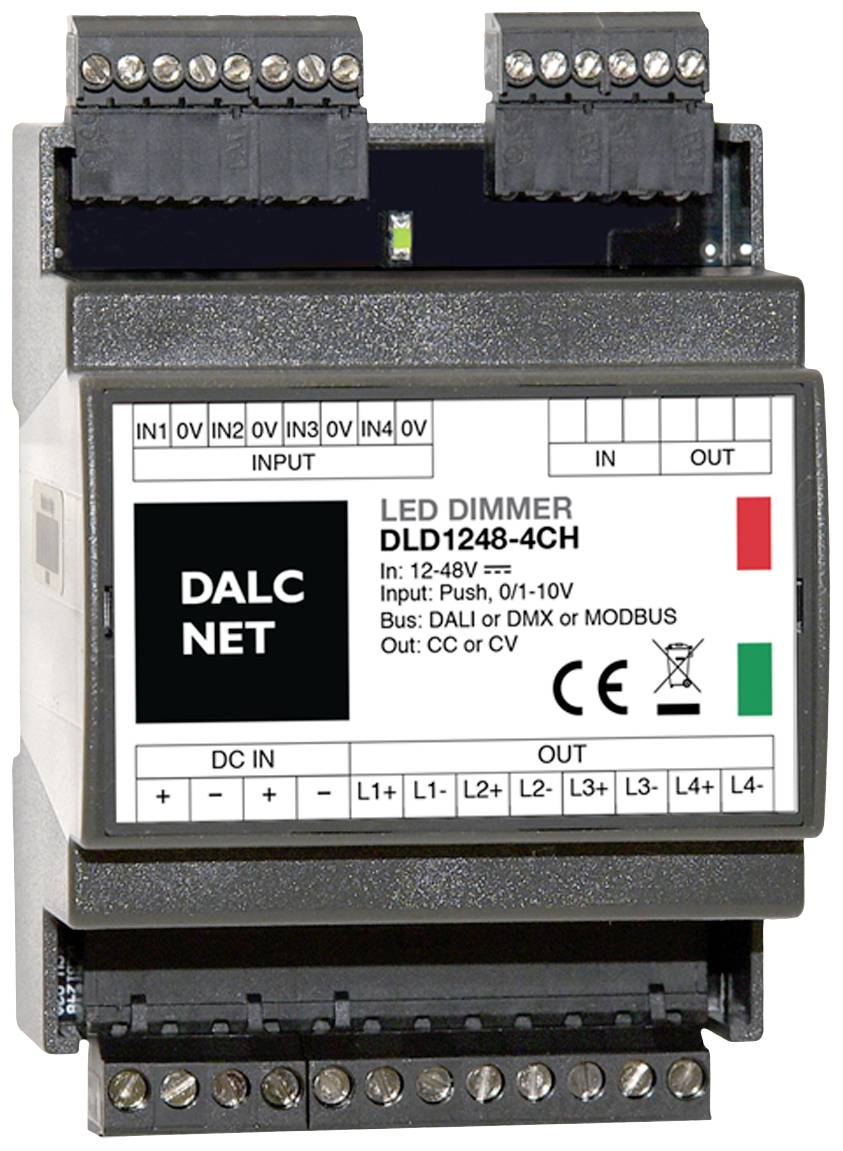

Dalcnet DLD1248-4CC-DMX Dimmer 4-channel
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Series DLD
- Operating mode: CC
- Housing: Top hat rail
- Interfaces: 0 - 10 volt, 1 - 10 volt, push-DIMM, DMX, resistive
- Operating temperature: -40 °C - 60 °C
- Nominal input voltage 24 V
- Min. Input voltage DC 12 V.
- Max. Input voltage DC 48 V.
- Connector type, input: Screw terminal
- Number of outputs: 4
- Power output: 134.4 W
- Output voltage min.: 12 V
- Output voltage max. 48 V
- Output current 0.7 A
- DIMM design PWM
- Dimmrange, min.: 0.1 %
- Dim range, max. 100 %
- Connector type, output: Screw terminal
- Output frequency (Hz): 1200
- Protection class III
- Standards (EMC) EN 55015
- Standards (security) EN 61347-1
- Product type
Dimmer
- Used at
Indoors
IP10
- Power supply (LOV)
mains-powered
- Operating voltage
12 V
24 V
48 V
134.4 W
- Data transfer (Smart Home)
Wired
- Channels
4
- Mounting type
DIN rail
- Width
71 mm
- Height
91 mm
- Depth
62 mm
- Dim
(W x H x D) 71 x 91 x 62 mm
- Features
Dimmer function
Documents & Downloads
Datasheet
Datasheet 3192124 Dalcnet DLD1248-4CC-DMX Dimmer 4-channel
User & Safety Instructions
User & Safety Instructions 3192124 Dalcnet DLD1248-4CC-DMX Dimmer 4-channel
Description
Dalcnet dimmer 12 V - 48 V, 0.7 A CC DMX 4 outputs.
This text is machine translated.
This text is machine translated.
Features
- Overload protection
- Overvoltage protection
- Over-temperature protection
