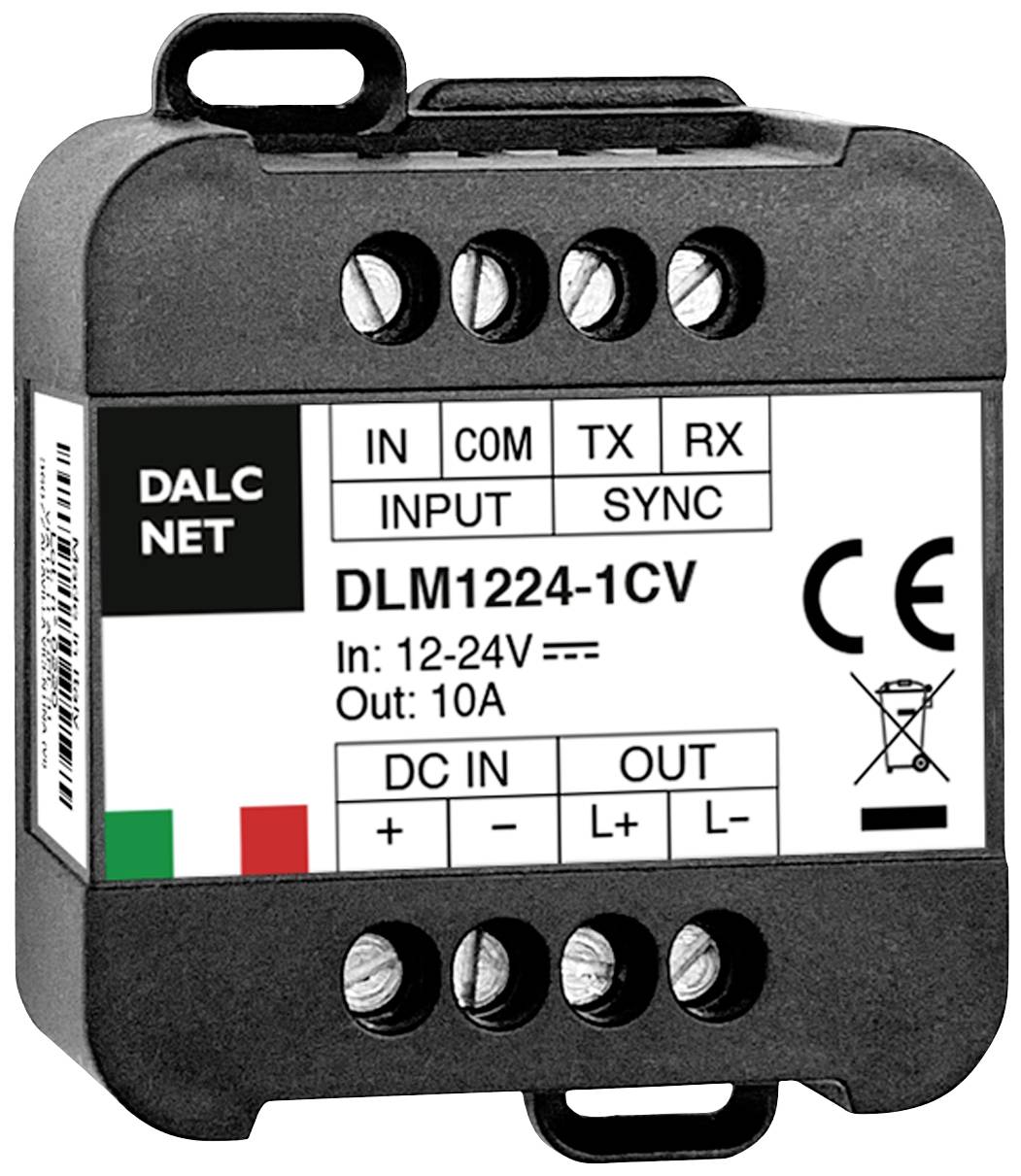

Dalcnet DLM1224-1CV Dimmer 1-channel
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- DLM series
- Operating mode CV
- Housing: Enclosed plastic
- Interfaces: 0 - 10 volt, 1 - 10 volt, push-DIMM, resistive
- Operating temperature: -10 °C to 40 °C
- Nominal input voltage 24 V
- Min. Input voltage DC 12 V.
- Max. Input voltage DC 24 V.
- Connector type, input: Screw terminal
- Number of outputs 1
- Power output: 240 W
- Output voltage min.: 12 V
- Output voltage max. 24 V
- Output current: 10 A
- DIMM design PWM
- Dimmrange, min.: 0.1 %
- Dim range, max. 100 %
- Connector type, output: Screw terminal
- Output frequency (Hz): 300
- Protection class III
- Standards (EMC) EN 55015
- Standards (security) EN 61347-1
- Product type
Dimmer
- Used at
Indoors
IP20
- Power supply (LOV)
mains-powered
- Operating voltage
12 V
24 V
240 W
- Data transfer (Smart Home)
Wired
- Channels
1
- Width
45 mm
- Height
58 mm
- Depth
19 mm
- Dim
(W x H x D) 45 x 58 x 19 mm
- Features
Dimmer function
Documents & Downloads
Datasheet
Datasheet 3192129 Dalcnet DLM1224-1CV Dimmer 1-channel
User & Safety Instructions
User & Safety Instructions 3192129 Dalcnet DLM1224-1CV Dimmer 1-channel
Description
Dalcnet dimmer 12 V - 24 V, 10 A CV 1 - 10 V/push.
This text is machine translated.
This text is machine translated.
Features
- Overvoltage protection.
