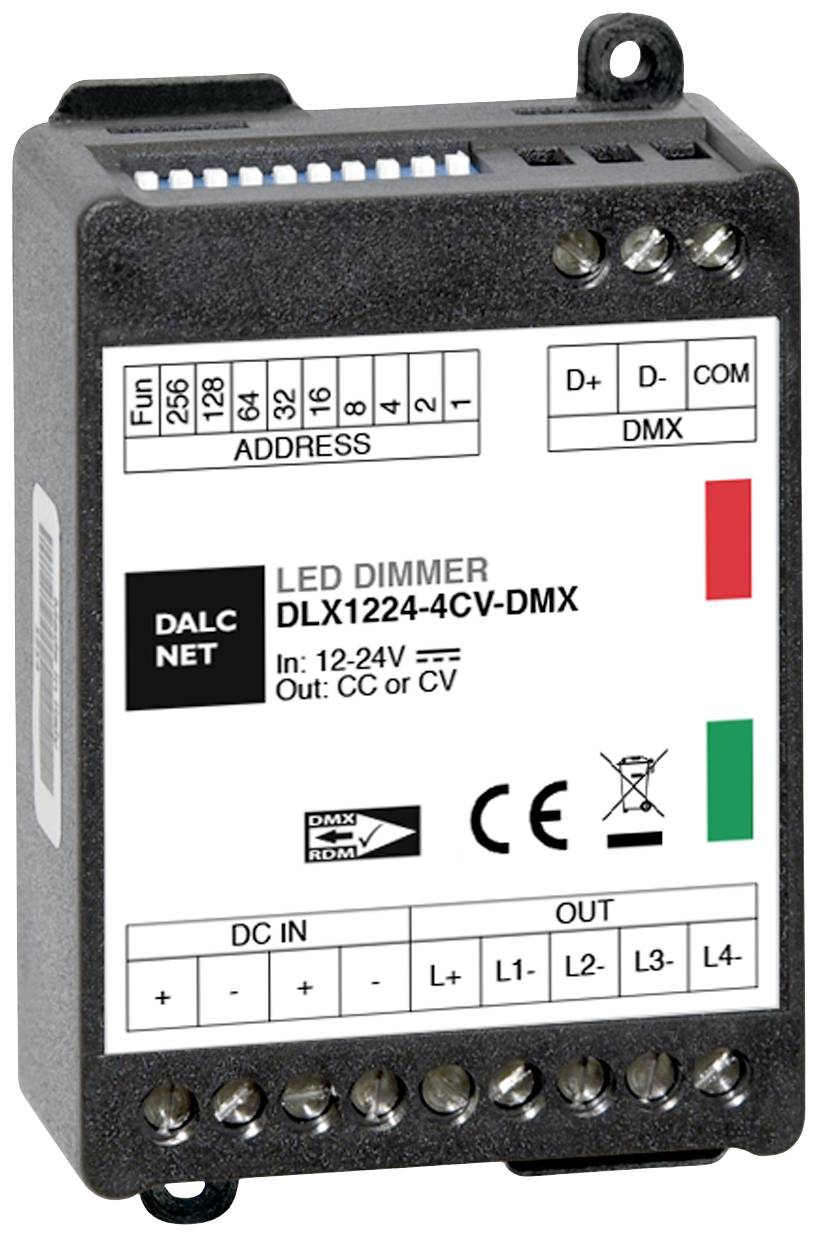

Dalcnet DLX1224-4CV-DMX Dimmer 4-channel
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- DLX series
- Operating mode: CC
- Housing: Enclosed plastic
- Interfaces: DMX
- Operating temperature: -10 °C to 40 °C
- Nominal input voltage 24 V
- Min. Input voltage DC 12 V.
- Max. Input voltage DC 24 V.
- Connector type, input: Screw terminal
- Number of outputs: 4
- Power output: 240 W
- Output voltage min.: 12 V
- Output voltage max. 24 V
- Output current: 5 A
- DIMM design PWM
- Dimmrange, min.: 0.1 %
- Dim range, max. 100 %
- Connector type, output: Screw terminal
- Output frequency (Hz): 250
- Protection class III
- Standards (EMC) EN 55015
- Standards (security) EN 61347-1
- Product type
Dimmer
- Max. switching capacity
240 W
- Used at
Indoors
IP20
- Power supply (LOV)
mains-powered
- Operating voltage
12 V
24 V
240 W
- Data transfer (Smart Home)
Wired
- Channels
4
- Width
54 mm
- Height
88 mm
- Depth
25 mm
- Dim
(W x H x D) 54 x 88 x 25 mm
- Features
Dimmer function
Documents & Downloads
Datasheet
Datasheet 3192141 Dalcnet DLX1224-4CV-DMX Dimmer 4-channel
User & Safety Instructions
User & Safety Instructions 3192141 Dalcnet DLX1224-4CV-DMX Dimmer 4-channel
Description
Dalcnet dimmer 12 V - 24 V, 5 A CV DMX 4 outputs.
This text is machine translated.
This text is machine translated.
Features
- Overvoltage protection.
