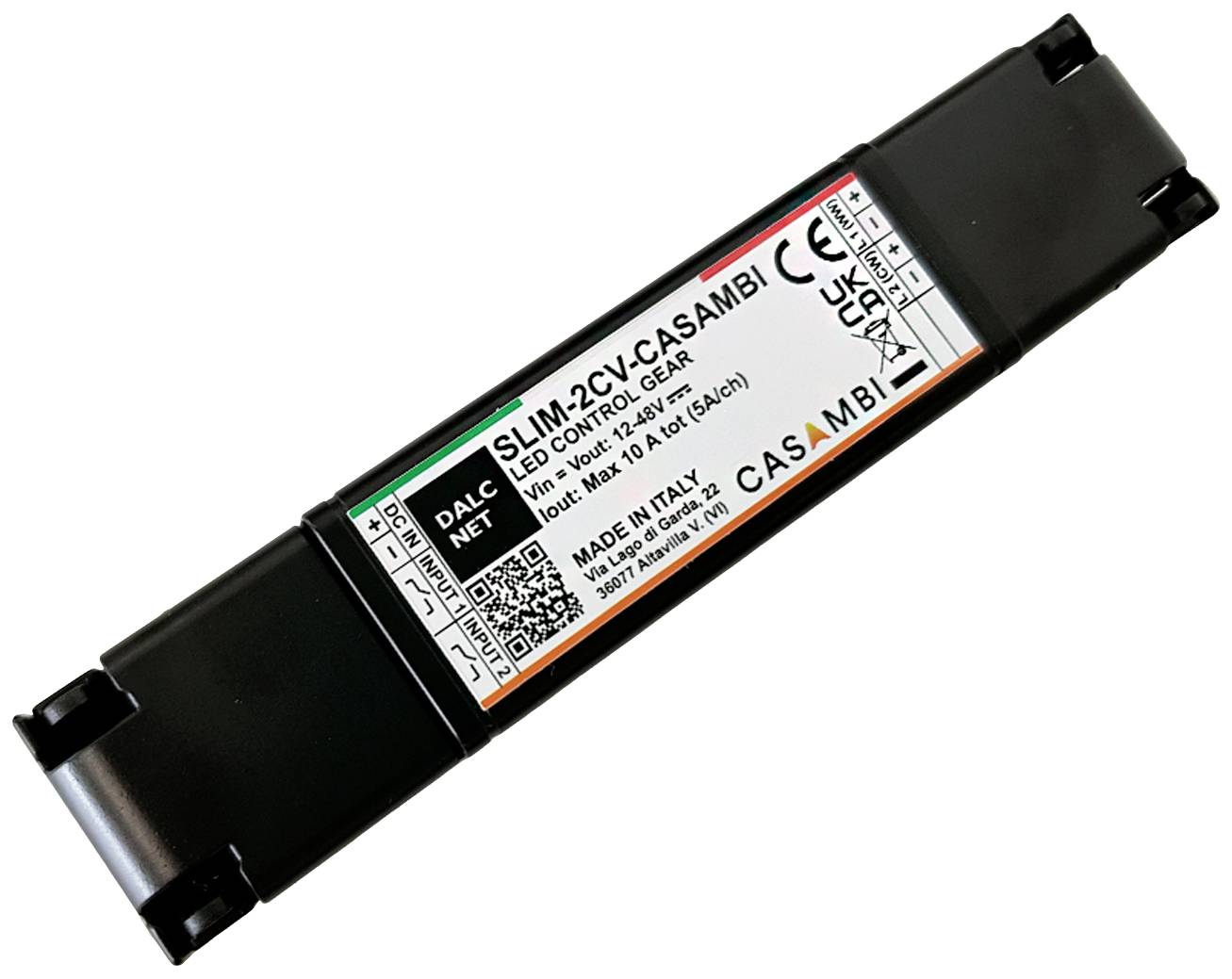

Dalcnet SLIM-2CV-CASAMBI Dimmer 2-channel Synergy21 LED Controller SLIM-2CV-Casambi*
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Series: SLIM
- Operating mode CV
- Housing: Enclosed plastic
- Interfaces: Casambi, push-DIMM
- Operating temperature: -10 °C - 60 °C
- Nominal input voltage 24 V
- Min. Input voltage DC 12 V.
- Max. Input voltage DC 48 V.
- Connector type, input: Plug-in terminal
- Number of outputs: 2
- Power output: 240 W
- Output voltage min.: 12 V
- Output voltage max. 48 V
- Output current: 5 A
- DIMM design PWM
- Dimmrange, min.: 0.1 %
- Dim range, max. 100 %
- Connector type, output: Plug-in terminal
- Output frequency (Hz): 4000
- Protection class III
- Standards (EMC) EN 55015
- Standards (security) EN 61347-1, EN 61347-2-13
- Product type
Dimmer
Manufacturer-specific
- Transfer Standard (Smart Home)
Wi-Fi
- Max. switching capacity
240 W
- Used at
Indoors
IP20
- Power supply (LOV)
mains-powered
- Operating voltage
12 V
24 V
48 V
240 W
- Data transfer (Smart Home)
Wireless
- Channels
2
- Frequency
2.4 GHz
- Width
136 mm
- Height
21 mm
- Depth
29 mm
- Dim
(W x H x D) 136 x 21 x 29 mm
- Features
Dimmer function
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3192148 Dalcnet SLIM-2CV-CASAMBI Dimmer 2-channel Synergy21 LED Controller SLIM-2CV-Casambi*
User & Safety Instructions
User & Safety Instructions 3192148 Dalcnet SLIM-2CV-CASAMBI Dimmer 2-channel Synergy21 LED Controller SLIM-2CV-Casambi*
Description
Dalcnet dimmer 12 V - 48 V, 5 A CV Casambi 2 outputs.
This text is machine translated.
This text is machine translated.
Features
- Flicker-free
- Configurable via Casambi APP
- Overvoltage protection.
