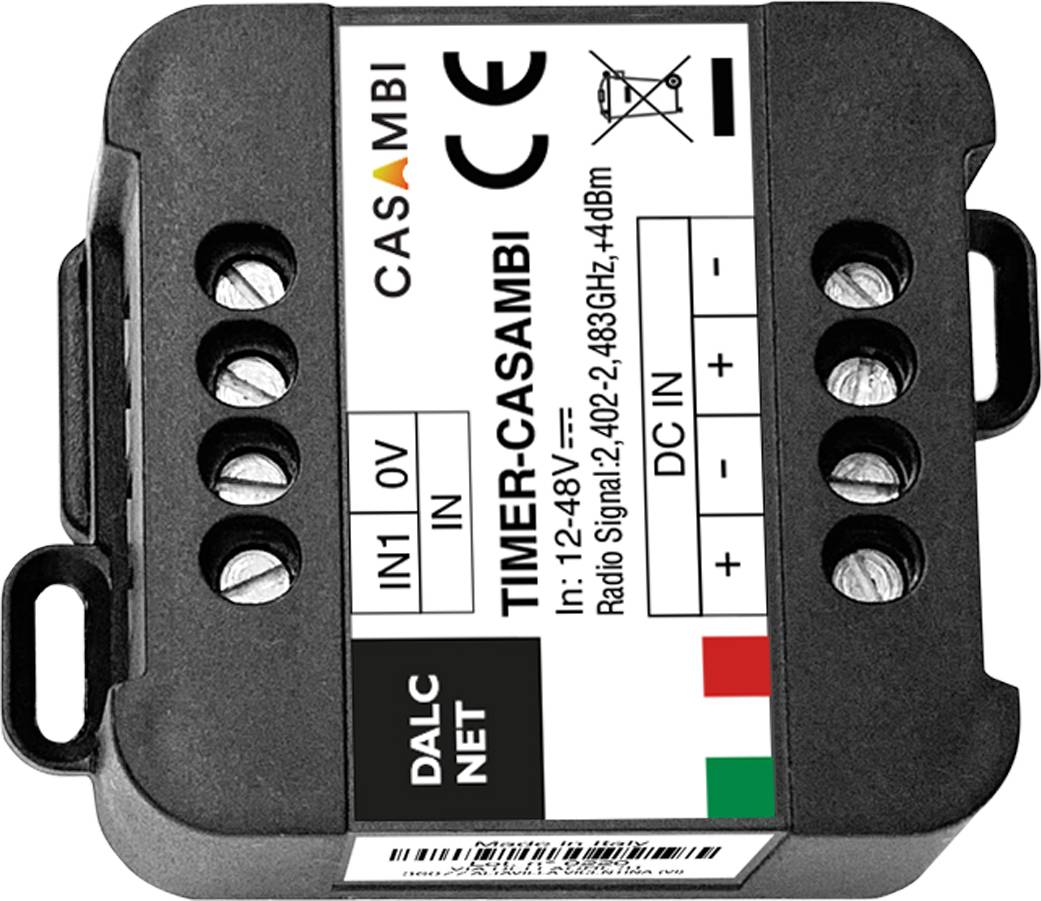

Dalcnet TIMER-CASAMBI Timer
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Series TIMER
- Housing: Enclosed plastic
- Interfaces: Push-DIMM, Casambi
- Operating temperature: -10 °C - 50 °C
- Nominal input voltage 24 V
- Min. Input voltage DC 12 V.
- Max. Input voltage DC 48 V.
- Connector type, input: Screw terminal
- Product type
Timer
- Transfer Standard (Smart Home)
Wi-Fi
- Used at
Indoors
IP20
- Power supply (LOV)
mains-powered
- Operating voltage
24 V DC
- Data transfer (Smart Home)
Wireless
- Frequency
2.4 GHz
- Width
45 mm
- Height
58 mm
- Depth
25 mm
- Dim
(W x H x D) 45 x 58 x 25 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3192149 Dalcnet TIMER-CASAMBI Timer
User & Safety Instructions
User & Safety Instructions 3192149 Dalcnet TIMER-CASAMBI Timer
Description
Dalcnet backup timer CASAMBI
Allows you to store the time of the Casambi network for 24 hours via backup function.
Synchronization of Casambi scenarios and programs in the event of a power failure or temporary power failure.
This text is machine translated.
Allows you to store the time of the Casambi network for 24 hours via backup function.
Synchronization of Casambi scenarios and programs in the event of a power failure or temporary power failure.
This text is machine translated.
Features
- Overvoltage protection.
