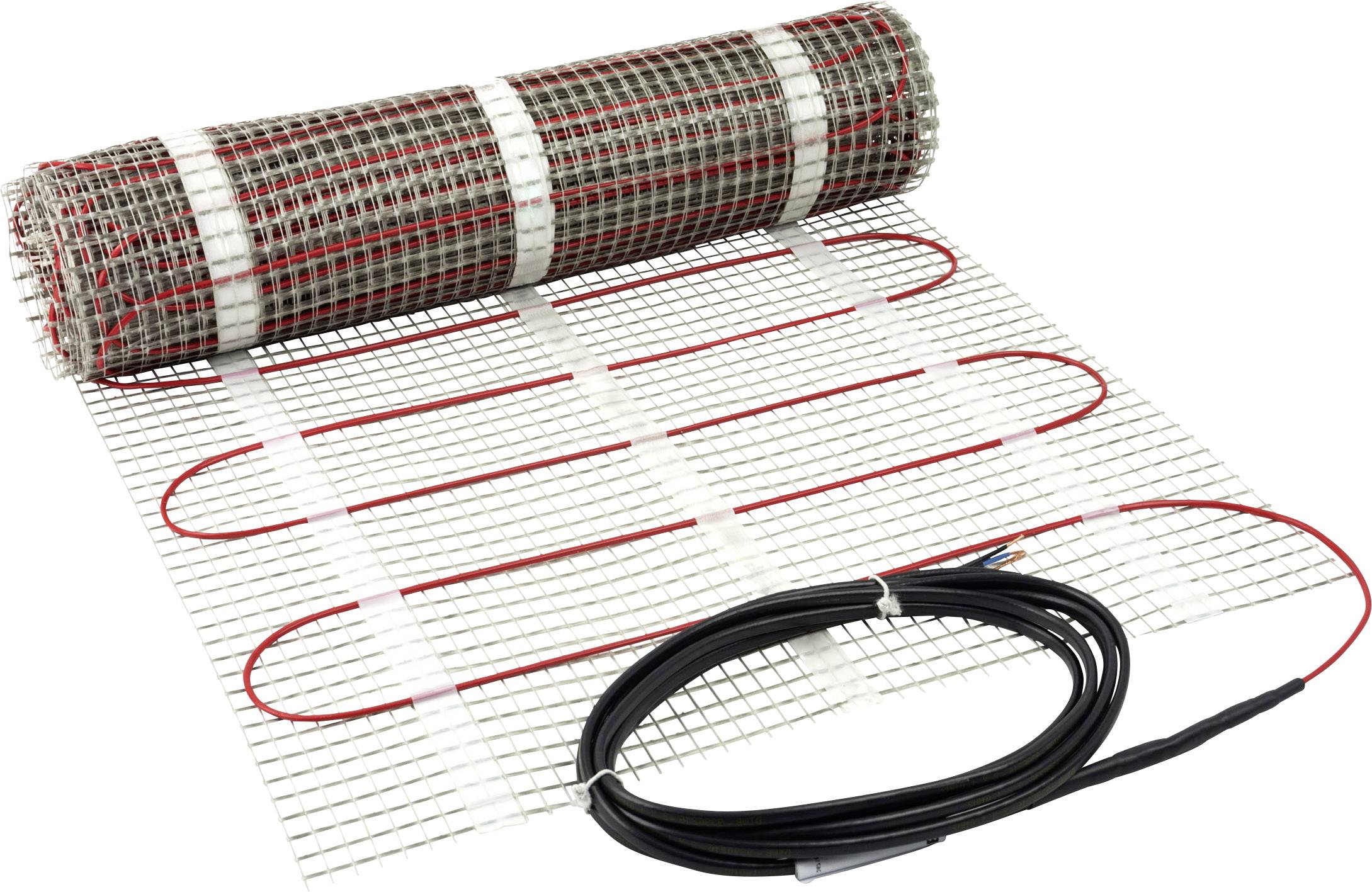

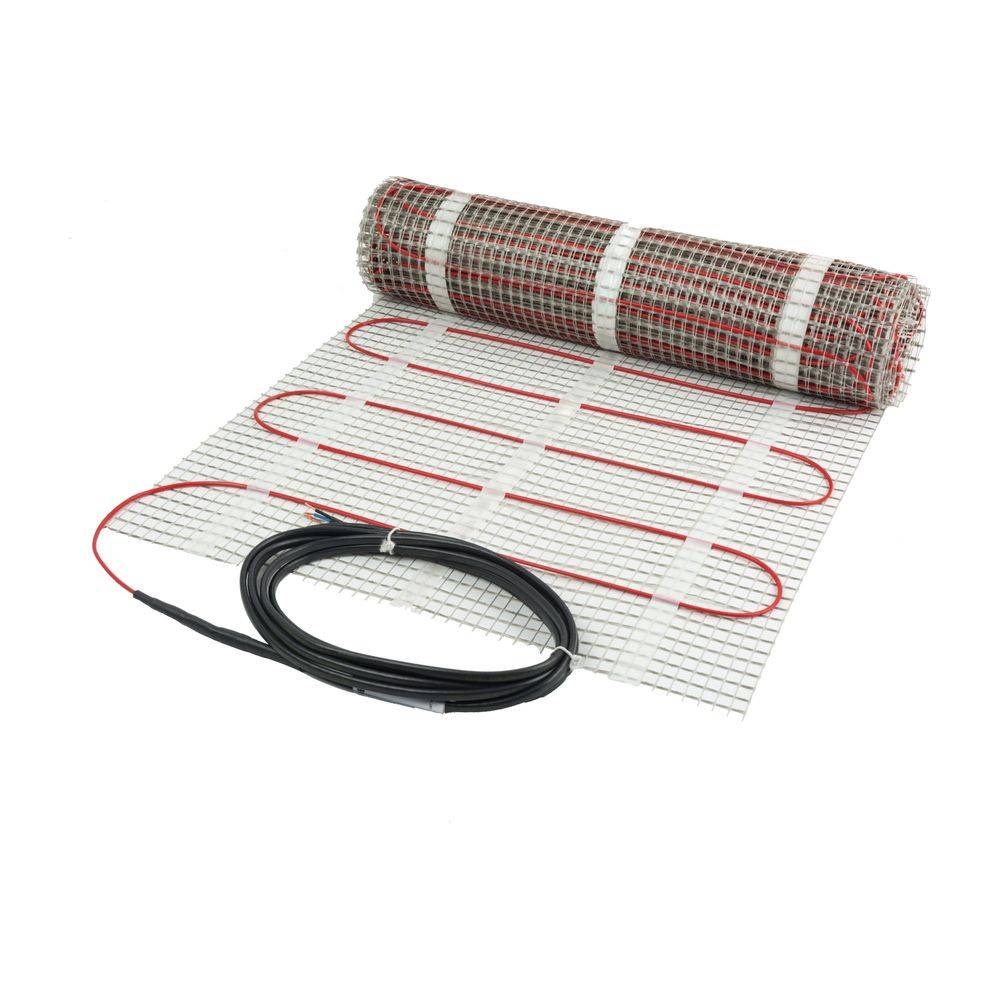

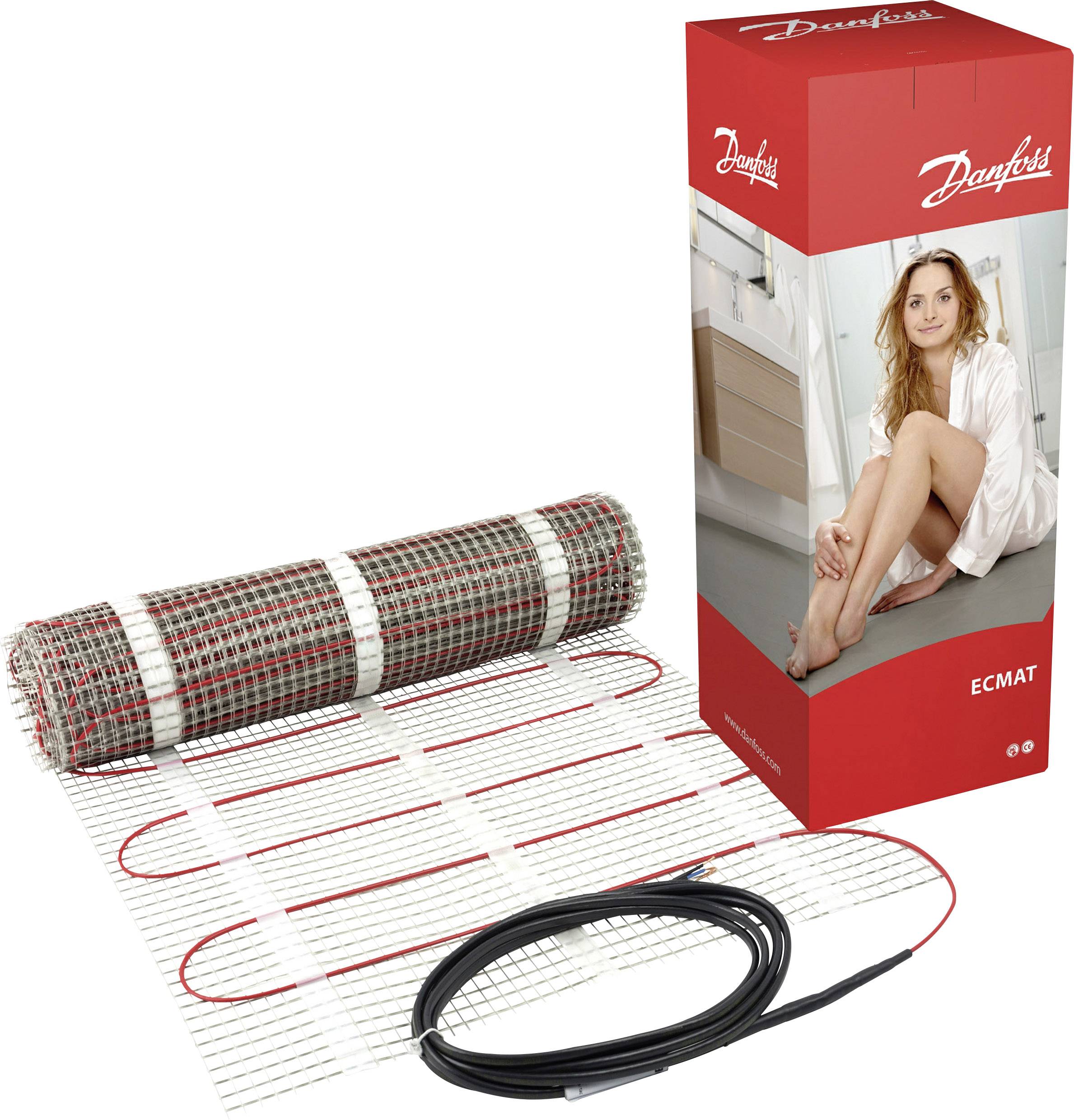

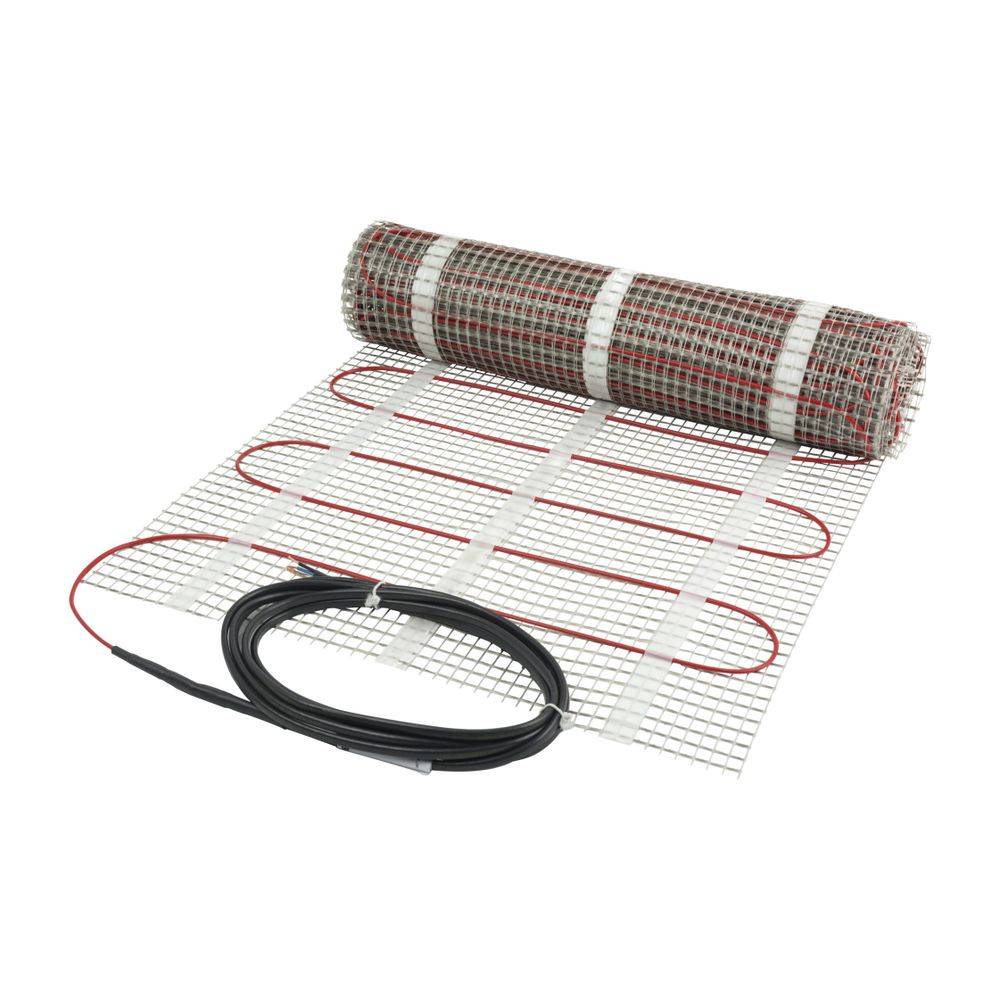

Danfoss 088L0207 Underfloor heating electronical ECmat 600 W 4 m²
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Underfloor heating electronical 600 W 4 m²
- 3.5 mm height
- Capacity: 150 W/m²
Technical specifications
- Approvals: IEC 60335-2-96/SEMCO
- Product type
Underfloor heating
- Operation type
electronical
- Operating voltage
230 V
- Suitable for
Carpet
PVC
Natural stone
Laminate
Cork
Wood
Tiles
- Heating area
4 m²
- Heating power (W / BTU/h)
600 W
- Heating power
600 W
- W/m
75 W
- Lead length
4 m
- Heating element length
8 m
- Mounting height
3.5 mm
IPX7
- Width
50 cm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1606015 Danfoss 088L0207 Underfloor heating electronical ECmat 600 W 4 m²
User & Safety Instructions
User & Safety Instructions 1606015 Danfoss 088L0207 Underfloor heating electronical ECmat 600 W 4 m²
Warranty Terms
Warranty Terms 1606015 Danfoss 088L0207 Underfloor heating electronical ECmat 600 W 4 m²
Description
Whether in the new building or in the renovation. The EFTI thin-bed-two-wire mat set opens up new perspectives in terms of heating comfort and coziness. The heating system enables fast, uniform heating of the floor. Due to its large size dissipation of heat via the ground surface, a healthy indoor climate, whereby the radiant heat as a very pleasant.
This text is machine translated.
This text is machine translated.
Hints
Heating cables on the mats must not be shortened still be extended!
