Danfoss 109505 DV 04 FF400 Switchboard cabinet Surface-mount Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Mounting type
Surface-mount
Width
300 mm
Height
900 mm
Depth
150 mm
Technical specifications
- Number of doors: 3Protection class IK08;IP65View door with lockCan be coupled: Yes
- Product type
Switchboard cabinet
- Mounting type
Surface-mount
- Factory colour
Grey
- Width
300 mm
- Height
900 mm
- Dim
(W x H x D) 300 x 900 x 150 mm
- Depth
150 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2609008 Danfoss 109505 DV 04 FF400 Switchboard cabinet Surface-mount Content 1 pc(s)
Description

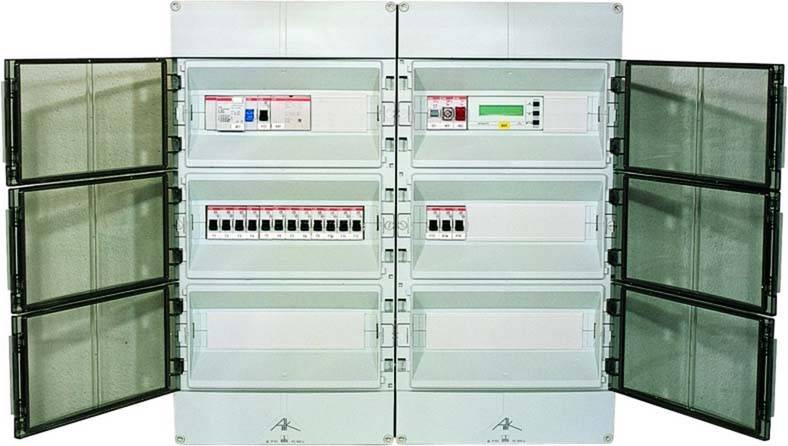

Distribution for open area heating with up to 4 heating circuits, power 12-24 kW, AP insulation housing, protection class IP65 equipped with all input fuses, FI-protection switch mode switch for continuous, manual and automatic operation, empty space for ice and snow fields Devireg 850, control and power contactors, heating circuit fuses, as well as terminals for incoming and outgoing lines and fault reporting. VDE-wise wired. Supply voltage 230 V/400 V.
