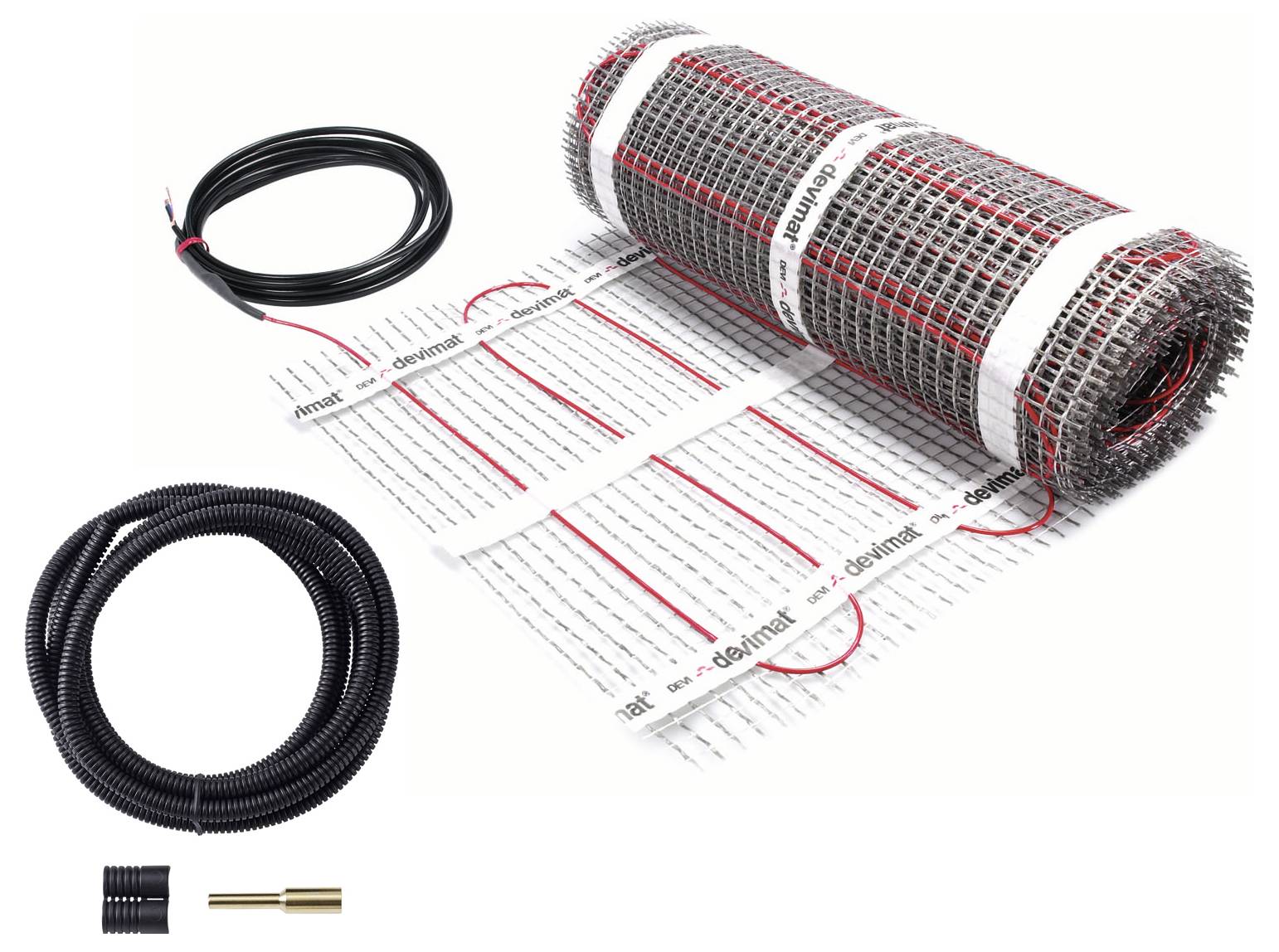

Image similar
Image similar
Danfoss 140F0415 Heat mat 140F0415 0.5 m²
EAN:
Part number:
Item no:
Technical specifications
- Width 500 mm
- Heating film version
- Thickness: 3.5 mm
- Length: 1000 mm
- Self-adhesive: Yes
- With room thermostat: No.
- Power 100 W/m²
- Connected load -100 W
- With carrier mat: Yes
- Heat Conductor Attachment: Glued
- Thermal output load 11 W/m
- Number of PTC thermistors: 1
- Length of PTC thermistor: 4000 mm
- Suitable for humid rooms: Yes
- Suitable as open space heater: No.
- Suitable as a roof panel heater: No.
- Surface area: 0.5 m²
- With controller: No.
- With ground temperature sensor: No.
- Product type
Heat mat
- Operating voltage
230 V
- Heating area
0.5 m²
- W/m
11 W
- Lead length
4.0 m
- Compatible with
Underfloor heating
- Mounting height
3.2 mm
- Width
500 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550854 Danfoss 140F0415 Heat mat 140F0415 0.5 m²
Description
Thin-bed heating mat with a connection cable. The self-adhesive thin bed heating mat with a connection cable is ready for mounting and was developed especially for the installation in balancing mass or flexible adhesive directly below the floor top covering. Due to the low height of only 3.2 mm, it is Ideal for the renovation and modernization of bathrooms, showers, kitchens etc. This floor tempering system is particularly suitable for subsequent installation in angled and/or large rooms, since the insertion of the second connection is not necessary. The heating cable with additional protective braiding for use of FI protective circuit has been mounted on a plastic network. The length of the connecting cables is 4.0 3.2 m. PTC thermistor type DTWB: 1 x 4m, 1.0 mm², voltage: 230 V, nominal limit temperature: 120°C, specific heating power: 48 W/m², length load: 11W, insulation: PVDF / FEP, resistance tolerance: +6% / -50%, minimum laying temperature: 5°C, minimum bending radius: 10 x DA, calculation width: 5 cm, delivery width: 100 cm, mat height: IPX7 Approval : EN 60335-2-96, area 1.0 m², 0.5 x 2.0 m.
