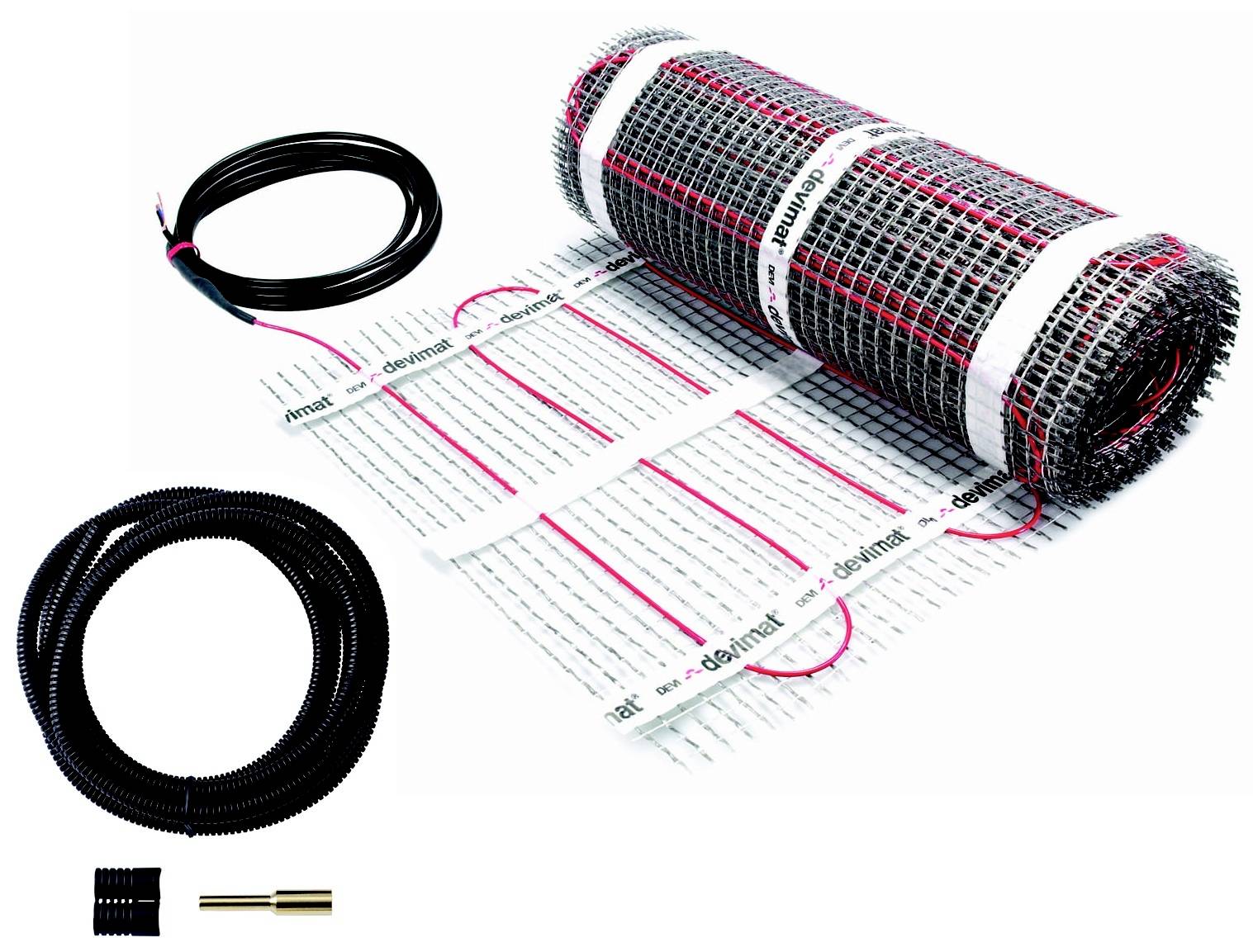

Danfoss 140F0453 Heat mat electronical 140F0453 900 W 6 m²
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- With carrier mat: YesFixing the heating conductor: GluedSelf-adhesive: YesPower 150 W/m²Number of PTC thermistors: 1Suitable for damp rooms: YesSuitable as open space heating: no.Surface area: 6 m²Length: 12000 mmWidth 500 mmThickness: 3.5 mmWith regulator: no.With room thermostat: no.With ground temperature sensor: no.Design: Heating foil
- Product type
Heat mat
- Operation type
electronical
- Operating voltage
230 V
- Heating area
6 m²
- Heating power (W / BTU/h)
900 W
- Heating power
900 W
- W/m
11 W
- Lead length
4000 mm
- Heating element length
4 m
- Compatible with
Underfloor heating control
- Mounting height
3.2 mm
- Width
500 mm
- Weight
2.93
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2610719 Danfoss 140F0453 Heat mat electronical 140F0453 900 W 6 m²
User & Safety Instructions
User & Safety Instructions 2610719 Danfoss 140F0453 Heat mat electronical 140F0453 900 W 6 m²
