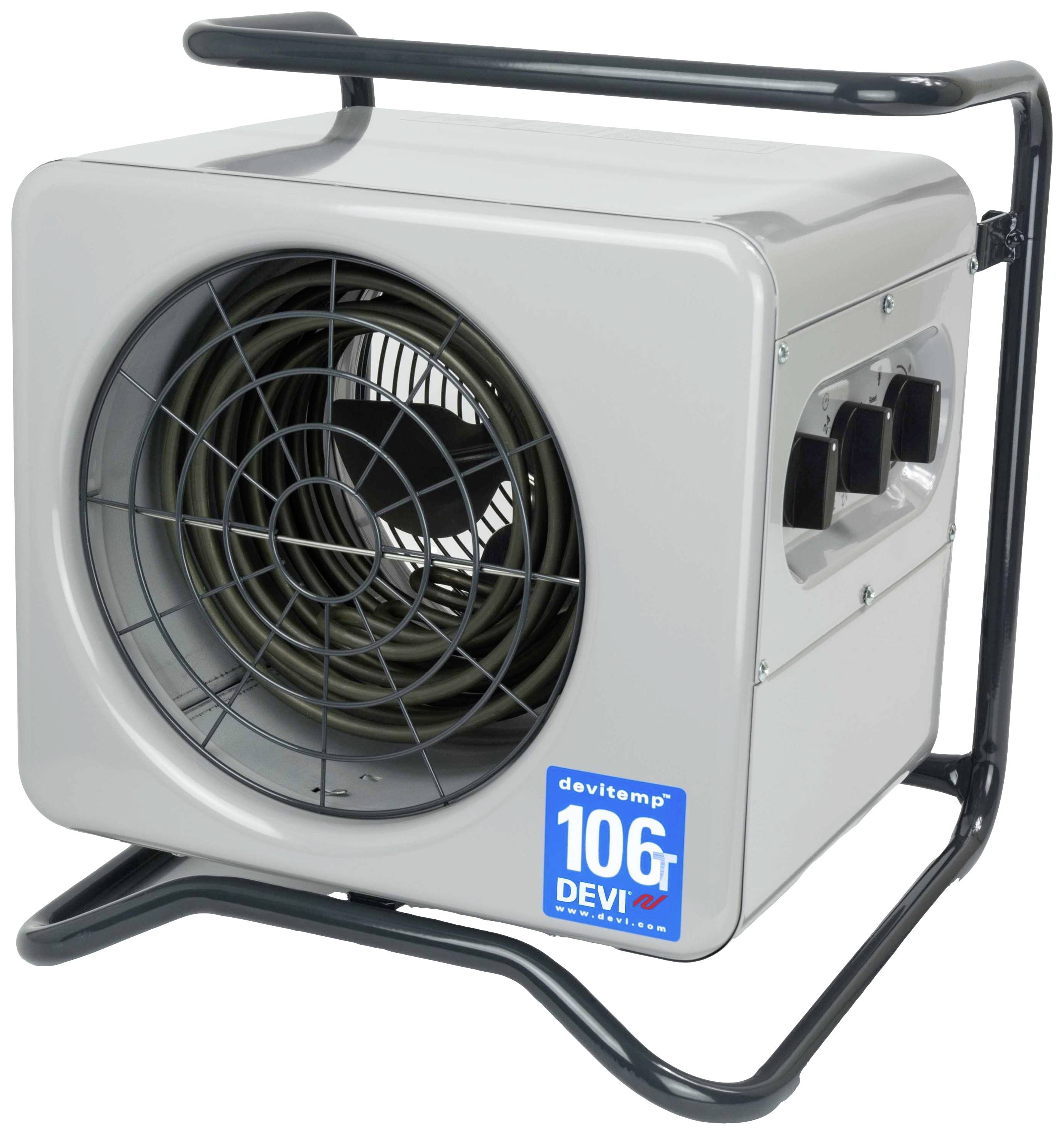

Danfoss 69811537 Fan heater devitemp 106 T Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Robust constructionCorrosion-resistantMobile use or fixed installationSimple control, five-stage switching of the fanThermostat for setting the required temperature
Technical specifications
- Air flow 650 m³/hWith overheat protection: YesWith wheels: YesWith room thermostat: Yes
- Product type
Fan heater
- Operating voltage
400 V
6 kW
- Max. operating noise
42 dB
- Heater features
Overheating protection
IPX4
- Factory colour
Grey
- Dim
(L x W x H) 420 x 410 x 435 mm
- Weight
14.9 kg
n.rel.
- Width
410 mm
- Height
435 mm
- Length
420 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2607324 Danfoss 69811537 Fan heater devitemp 106 T Grey
User & Safety Instructions
User & Safety Instructions 2607324 Danfoss 69811537 Fan heater devitemp 106 T Grey
Description
Industrial fan heater, 21 kW, 400 V with timer. Suitable for stationary and mobile operation. The devices comply with the protection class IP X4 and can be used in dry and damp rooms.The power supply takes place via a fixed 1.5 m long connection cable H 07 RN-F4. Built-in continuous thermostat 0 to 40°C, safety thermostat, VDE approval, color gray RAL 7004n.Up to 24 hours delay start possible
This text is machine translated.
This text is machine translated.
