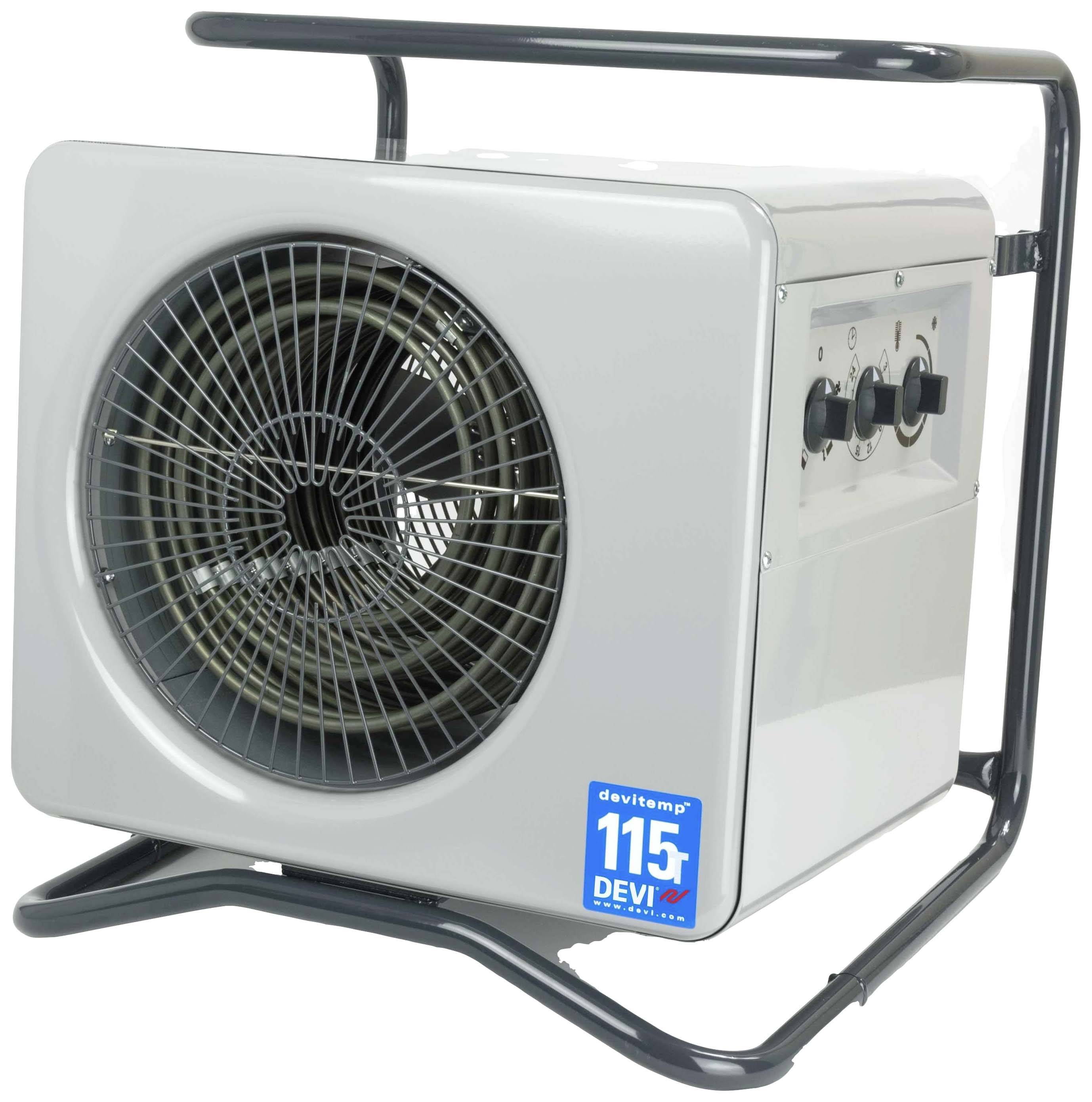

Danfoss 69813509 Fan heater devitemp 115 T Grey
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
- Robust constructionCorrosion-resistantMobile use or fixed installationSimple control, five-stage switching of the fanThermostat for setting the required temperature
Technical specifications
- Air flow 1400 m³/hWith overheat protection: YesWith wheels: YesWith room thermostat: Yes
- Product type
Fan heater
- Operating voltage
400 V
- Switching stages
5
15 kW
- Max. operating noise
42 dB
- Timer
Yes
- Heater features
Overheating protection
IPX4
- Protection class
IPX4
- Factory colour
Grey
- Dim
(L x W x H) 510 x 540 x 505 mm
- Weight
23.6 kg
- Feed length
1.5 m
Doesn't apply
- Width
540 mm
- Height
505 mm
- Length
510 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2602720 Danfoss 69813509 Fan heater devitemp 115 T Grey
User & Safety Instructions
User & Safety Instructions 2602720 Danfoss 69813509 Fan heater devitemp 115 T Grey
Description
Industrial fan heater, 21 kW, 400 V with timer. Suitable for stationary and mobile operation. The devices comply with the protection class IP X4 and can be used in dry and damp rooms.The power supply takes place via a fixed 1.5 m long connection cable H 07 RN-F4. Built-in continuous thermostat 0 to 40°C, safety thermostat, VDE approval, color gray RAL 7004n.Up to 24 hours delay start possible
