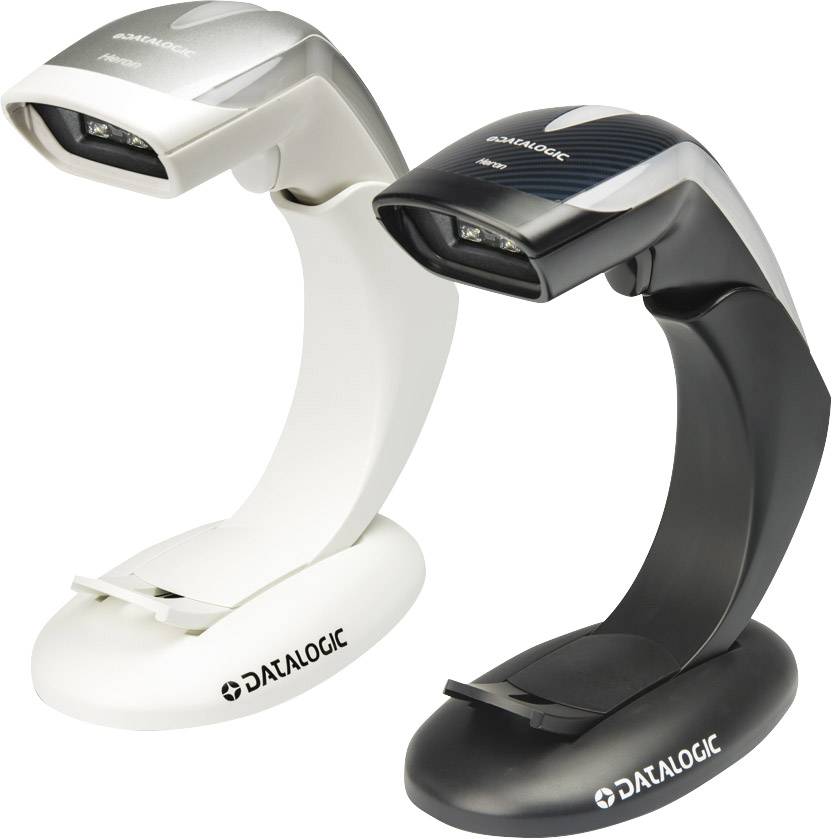

Datalogic Heron HD3430 Barcode scanner Corded 1D, 2D Imager Black Hand-held USB
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Barcode Scanner
- Professional barcode reader for 1D and 2D Codes
- Freely programmable LED-lighting and speaker
- Can be used as hand-held or a presentation scanner
Technical specifications
- Product type
Barcode scanner
- Type
Heron HD3430
- Type
Hand-held
- Scanning technology
Imager
- Readable code types
1D
2D
- Reading distance (max.)
400 mm
- Scanning confirmation
Acoustic
LED
- Cordless scanning
Corded
- Range of use
Retail
- Factory colour
Black
- Interfaces
USB
- Protection class
IP40
- Width
68 mm
- Height
153 mm
- Depth
152 mm
- Weight
150 g
Documents & Downloads
Datasheet
Datasheet 1452002 Datalogic Heron HD3430 Barcode scanner Corded 1D, 2D Imager Black Hand-held USB
User & Safety Instructions
User & Safety Instructions 1452002 Datalogic Heron HD3430 Barcode scanner Corded 1D, 2D Imager Black Hand-held USB
Information
Information 1452002 Datalogic Heron HD3430 Barcode scanner Corded 1D, 2D Imager Black Hand-held USB
Description
The Heron HD 3430 is not only a means to an end, he brings with its chic design also shine on the checkout. Particularly noteworthy is the individual lighting concept: The top and on the sides are freely programmable color-LEDs, which your brand also at the checkout optimally present. Also freely programmable speaker support with individual sounds the brand experience. You can capture with the advanced scan engine reliable and fast 1D, 2D, postal and batch codes of labels and displays. Thanks to the built-in image capture function lets you capture additional documents in the formats BMP, JPEG or TIFF quickly and reliably digital.
This text is machine translated.
This text is machine translated.
Features
- Readable code types: 1D codes: GS1 Databar™ Codes, 2D codes: Aztec Code, Aztec mesas, Data Matrix, QR Code, Micro QR Code, maxi code, China Han Xin Code, postal codes: Australian Post, British Post, Canadian Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Postnet, Royal Mail Code, Code (RM 4 SCC), batch codes: EAN/JAN composites, GS1 DataBar composites, GS1 DataBar expanded stacked, GS1 Databar, stacked, GS1 Databar Stacked Omni directional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
- Image acquisition in the formats: BMP, JPEG, TIFF
- Light source: White
- Targeting device: 650 nm VLD
- Reading range: Code 39:5 mils: 3.5 to 20.0 cm;EAN-13:13 mils: 3..0 up to 40.0cm; Data Matrix: 15 mils: 2.0 to 25.0 cm
Scope of delivery
- Base
- USB cable
- Quick guide
