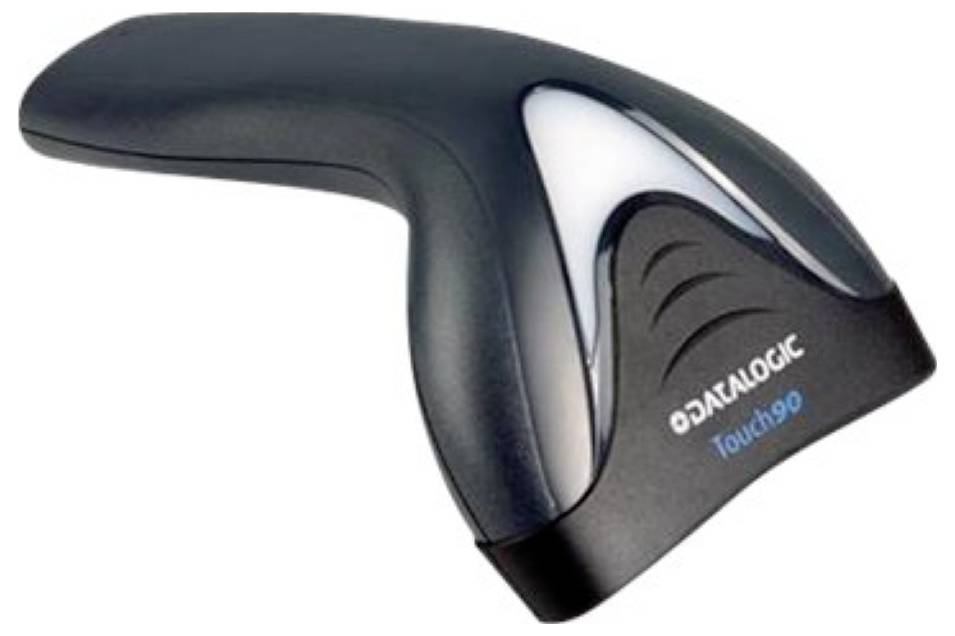

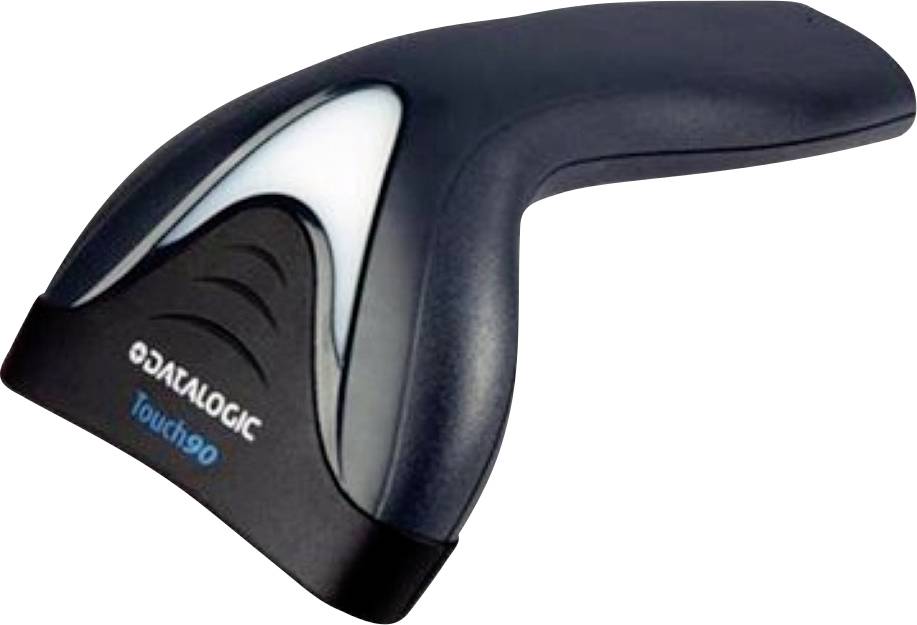

Datalogic TD1120 90 light Barcode scanner Black Hand-held
EAN:
Part number:
Item no:
Highlights & Details
Barcode Scanner
- Black
- 15 cm operating distance
- Angle of inclination -45 - 45°
- Standard interfaces: USB
Technical specifications
- Tilt angle range -45 - 45°
- Product type
Barcode scanner
- Type
TD1120 90 light
- Type
Hand-held
- Factory colour
Black
- Weight
153 g
IP30
- Input voltage
5 V
- Operating temperature (T-T)
0 - 50 °C
- Wavelength
640 nm
- Working distance
15 cm
- Buzzer
yes
- Dimensions (WxDxH)
104 x 67 x 170 mm
- Power consumption
100 mA
- Operating relative humidity (H-H)
5 - 95 %
- Yaw reading angle
-70 - 70°
- Pitch reading angle
-65 - 65°
- Tilt reading angle
-45 - 45°
- Storage temperature (T-T)
-40 - 70 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3843729 Datalogic TD1120 90 light Barcode scanner Black Hand-held
Description
For all users, who are looking for an economical and thereby high-quality solution, which detects barcodes from the shortest distance, the TD1100 series is the ideal solution. TD1100 has been designed for various applications that are characterized by a low product throughput. It stands for excellent reading performance when detecting linear bar codes in close range - even if they are damaged or poorly printed.
The TD1100 is small, light and is characterized by a low power consumption. Another quality feature is its robustness with a fall protection of 1.5 m.
It is available with two different reading ranges: 6.5 cm / 2.6 in (TD1100 65) for standard codes or 9.0 cm / 3.5 in (TD1100 90) for longer codes.
The TD1100 65/90 Pro offers a complete all-in-one multi-interface solution with RS-232, USB, keyboard wedge and wand emulation. While the TD1100 65/90 Light is available in two versions, either with USB or with RS-232/Keyboard Wedge interface.
An innovative "read-thru" stand allows hands-free scanning on documents or small articles.
This text is machine translated.
The TD1100 is small, light and is characterized by a low power consumption. Another quality feature is its robustness with a fall protection of 1.5 m.
It is available with two different reading ranges: 6.5 cm / 2.6 in (TD1100 65) for standard codes or 9.0 cm / 3.5 in (TD1100 90) for longer codes.
The TD1100 65/90 Pro offers a complete all-in-one multi-interface solution with RS-232, USB, keyboard wedge and wand emulation. While the TD1100 65/90 Light is available in two versions, either with USB or with RS-232/Keyboard Wedge interface.
An innovative "read-thru" stand allows hands-free scanning on documents or small articles.
This text is machine translated.
