Name: Datasensing Emergency light cage SH4 Range (max.) 10 m Protective field height 600 mm 24 V DC Safety class: 3 No. of ray
Brand: Datasensing
SKU: 3760110

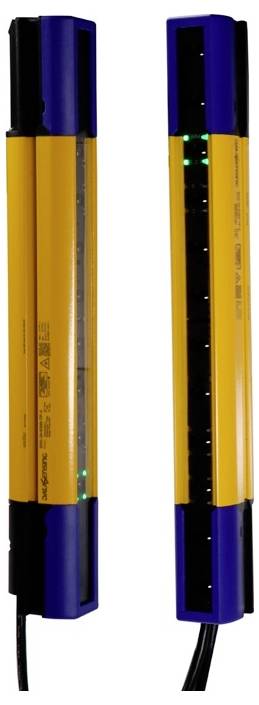

Two vertical yellow-and-blue industrial light curtains or sensors with cables attached, showing glowing green indicator lights.

A descending staircase of matches, arranged from tallest at the upper left to shortest at the lower right, forming a downward diagonal pattern.

Two yellow-and-blue industrial sensor bars with cable ends, shown diagonally on a white background.

1/3

Product type

Emergency light cage

Length

40 mm

Height

682.8 mm

Type

SH4

Model

Receiver

Transmitter

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

SH4-14-0600-B-5 Base series safety light grid

Compact design for finger protection (resolution 14 mm)
Simple installation without configuration (Base version)
Long range up to 10 meters
Integrated control functions (auto reset)

Our service for you

Technical specifications

Housing material: Aluminium / PBT

Product type: Emergency light cage

Type: SH4

Model: Receiver
Transmitter

Range of uses: Finger protection

Features: Auto reset

Operating voltage: 24 V DC

Min. operating voltage: 19.2 V DC

Max. operating voltage: 28.8 V DC

Operating voltage: 19.2 - 28.8 V DC

Response time: 15 ms

Switching voltage (max.): 24 V DC

Switching current (max.): 0.5 A

Max. switching capacity: 12 W

Optical resolution: 14 x 14 mm

Smallest detectable object size (diameter): 14 mm

Connector: M12 plug (5-pin)

Transmitter type: LED IR

Wavelength: 850

Range (min.): 200 mm

Range (max.): 10 m

Outputs: 2x PNP

Output signal (min.): 0 V

Output signal (max.): 24 V

Output current: 500 mA

Certification (sensors): CE
cULus
TÜV

Performance level: PL e

Safety integrity level: SIL 3

Safety rating: 4

Safety class: 3

Rays: 64

Beam spacing: 10 mm

Protective field width (min.): 200 mm

Protective field width (max.): 10000 mm

Protective field height: 600 mm

Alu rail height: 667.4 mm

Total height: 682.8 mm

Content: 1 pc(s)

: IP65
IP67

Length: 40 mm

Width: 35 mm

Height: 682.8 mm

Dim: (L x W x H) 40 x 35 x 682.8 mm

Min. temperature: -30 °C

Max. temperature: 55 °C

Nominal voltage: 24 V DC

Variants(All information is without VAT, plus shipping costs)

Length

Width

IP rating

Range (max.)

Height

Product type

Datasensing Emergency light cage SH4 Range (max.) 10 m Protective field height 600 mm 24 V DC Safety class: 3 No. of rays: 64

Item no:3760110

Unavailable

Conrad Electronic

This article

40 mm

35 mm

IP65

10 m

682.8 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Emergency light cage SH4 Range (max.) 10 km Protective field height 1050 24 V DC Safety class: 3 No. of rays: 105

Item no:3760113

Unavailable

Conrad Electronic

35 mm

40 mm

IP65

10 km

1059 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Emergency light cage SH4 Range (max.) 10 m Protective field height 1200 mm 24 V DC Safety class: 3 No. of rays: 120

Item no:3760114

Unavailable

Conrad Electronic

35 mm

40 mm

IP65

10 m

1209 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Emergency light cage SH4 Range (max.) 10 m Protective field height 1350 mm 24 V DC Safety class: 3 No. of rays: 135

Item no:3760115

Unavailable

Conrad Electronic

35 mm

40 mm

IP65

10 m

1359 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Emergency light cage SH4 Range (max.) 10 m Protective field height 1500 mm 24 V DC Safety class: 3 No. of rays: 150

Item no:3760116

Unavailable

Conrad Electronic

35 mm

40 mm

IP65

10 m

1509 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Emergency light cage SH4 Range (max.) 10 m Protective field height 1650 24 V DC Safety class: 3 No. of rays: 164

Item no:3760117

Unavailable

Conrad Electronic

35 mm

49 mm

IP65

10 m

1659 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Emergency light cage SH4 Range (max.) 10 m Protective field height 1800 24 V DC Safety class: 3 No. of rays: 180

Item no:3760118

Unavailable

Conrad Electronic

35 mm

40 mm

IP65

10 m

1800 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Emergency light cage SH4 Range (max.) 10 m Protective field height 1950 mm 24 V DC Safety class: 3 No. of rays: 195

Item no:3760119

Unavailable

Conrad Electronic

35 mm

40 mm

IP65

10 m

2009 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Emergency light cage SH4 Range (max.) 10 m Protective field height 300 mm 24 V DC Safety class: 3 No. of rays: 32

Item no:3760108

Unavailable

Conrad Electronic

35 mm

40 mm

IP65/67

10 m

380 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Datasensing Emergency light cage SH4 Range (max.) 10 m Protective field height 450 mm 24 V DC Safety class: 3 No. of rays: 45

Item no:3760109

Unavailable

Conrad Electronic

40 mm

35 mm

IP65

10 m

459 mm

Emergency light cage

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3760110 Datasensing Emergency light cage SH4 Range (max.) 10 m Protective field height 600 mm 24 V DC Safety class: 3 No. of ray

User & Safety Instructions

User & Safety Instructions 3760110 Datasensing Emergency light cage SH4 Range (max.) 10 m Protective field height 600 mm 24 V DC Safety class: 3 No. of ray

Description

The SH4-14-0600-B-5 is a robust base series safety light grid, specially designed for finger protection in industrial applications. With a protective field height of 600 mm and the protection class IP67 it offers reliable security in demanding environments, without complex software configuration
