Name: Datasensing Light grid DS4 Range (max.) 13 m Protective field height 1050 mm 24 V DC No. of rays: 42
Brand: Datasensing
SKU: 3760080

Two black-and-blue wall-mounted sensor units facing each other, connected by cables, forming a security light beam detector or barrier sensor pair.

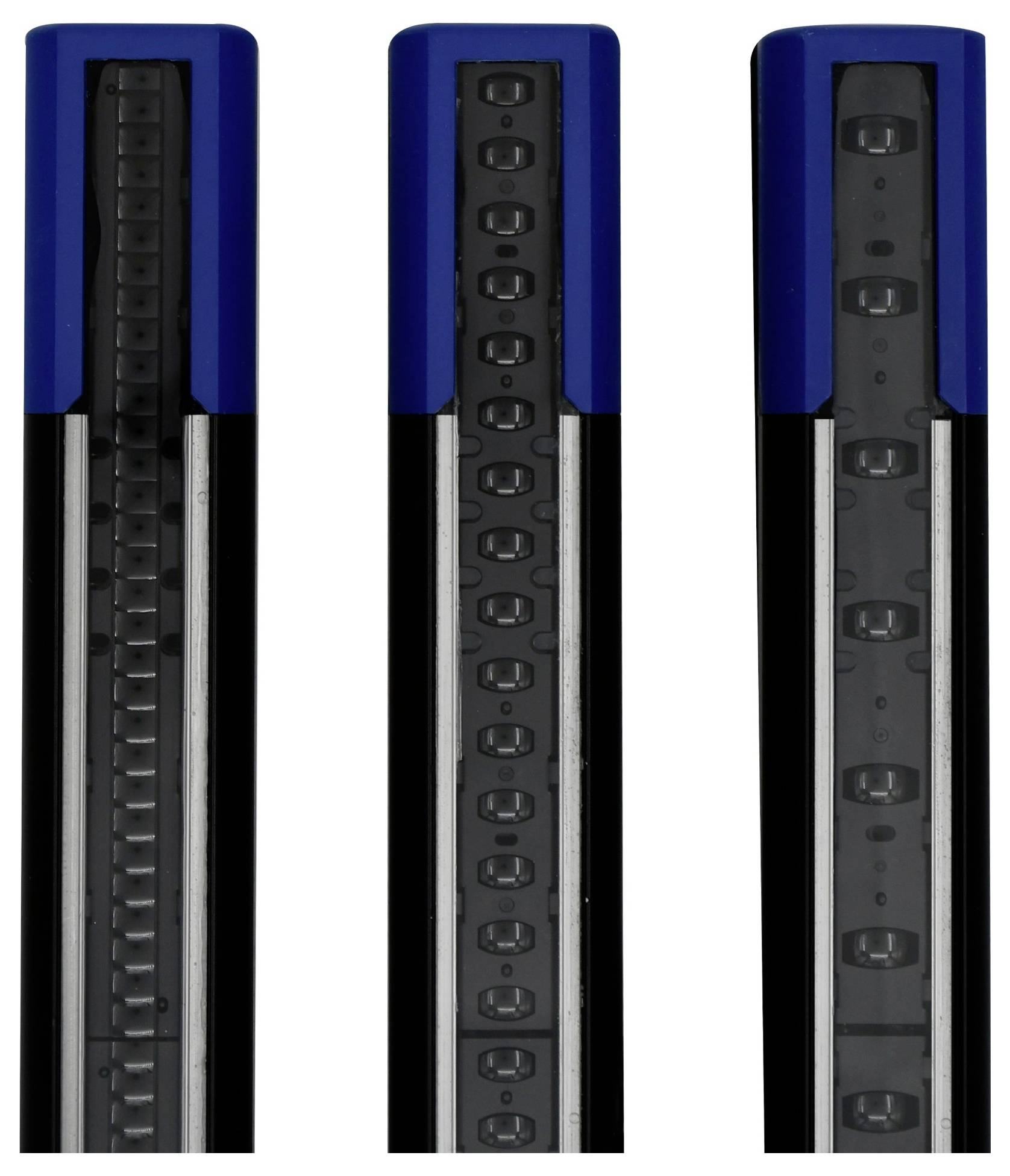

Three close-up views of a black-and-blue adjustable slide rail or track, showing its different sides and mounting features.

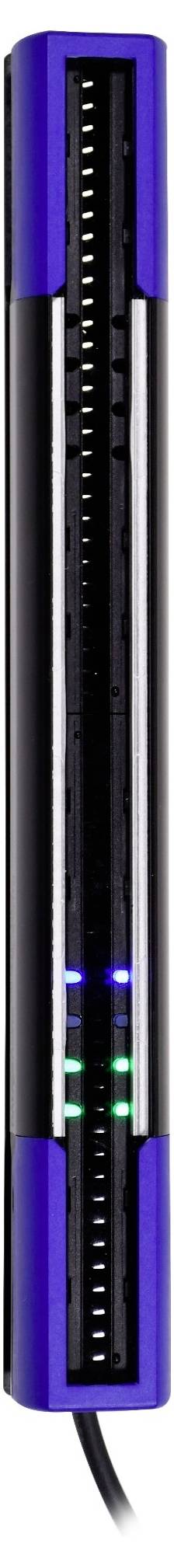

Close-up of a blue and black device with a vertical light strip showing several illuminated indicator LEDs and a cable at the bottom.

1/3

Product type

Light grid

Length

40 mm

Height

1059 mm

Type

DS4

Model

Receiver

Transmitter

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

DS4 Base detection and measurement light curtain

Easy configuration via cable
IO-Link interface
Reliable performance for standard applications

Our service for you

Technical specifications

Case made of aluminum
Optics window from PMMA

Product type: Light grid

Type: DS4

Model: Receiver
Transmitter

Operating voltage: 24 V DC

Min. operating voltage: 19.2 V DC

Max. operating voltage: 28.8 V DC

Operating voltage: 19.2 - 28.8 V DC

Max. current consumption: 360 mA

Response time: 2.26 ms

Switching voltage (max.): 28.8 V DC

Switching current (max.): 100 mA

Optical resolution: 25 x 25 mm

Smallest detectable object size (diameter): 30 mm

Connector: M12 plug (5-pin)

Cable length: 200 mm

Transmitter type: LED IR

Wavelength: 850 nm

Range (min.): 200 mm

Range (max.): 13 m

Outputs: Analogue
Digital
IO link

Output signal (min.): 4 mA

Output signal (max.): 20 mA

Output current: 100 mA

Certification (sensors): CE

Rays: 42

Beam spacing: 25 mm

Protective field width (min.): 200 mm

Protective field width (max.): 13000 mm

Protective field height: 1050 mm

Alu rail height: 1059 mm

Total height: 1059 mm

Content: 1 pc(s)

: IP65
IP67

Length: 40 mm

Width: 35 mm

Height: 1059 mm

Dim: (L x W x H) 40 x 35 x 1059 mm

Min. temperature: -30 °C

Max. temperature: 55 °C

Nominal voltage: 24 V DC
